Mini Ball Valves
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
AFP Industries stocks this Parker series for quote or purchase, with interchange support and southeast warehouse availability.

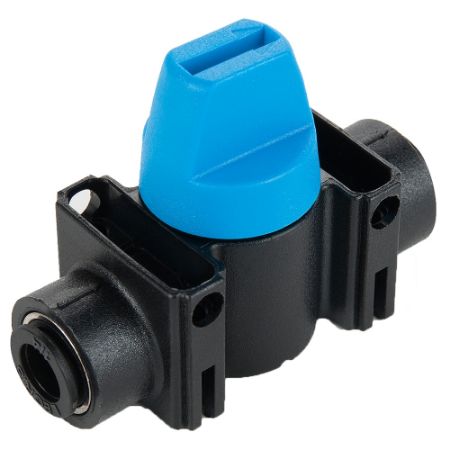

Parker's mini ball valves enable in-line opening and closing of a pneumatic circuit. Handles are color coded and marked with the corresponding pneumatic symbol, in order to enable immediate identification by the user. With their push-in connections, these polymer lightweight ball valves allow for a significant reduction in installation time while offering full flow capability and compact dimensions.
Use with the following Parker Parflex Division tubing.
• Nylon
• Semi-rigid Nylon
• Polyurethane 90 Durometer Shore A
• Fluoropolymer
Markets:
• Factory/Process Automation
• Packaging
• Petrochemical
• Pneumatics
• Semi-conductor
Features/Benefits:
• Full flow
• Marked with the pneumatic symbol for identification of its function
• Lightweight
• Extremely compact, easy-to-operate lever
• Lever with screwdriver slot to facilitate operation
• Designed for polymer tubing with no tube preparation
• NBR stem seal and o-ring
Applications:
• Machine Tools
• Pneumatic Systems
• Robotics
• Vacuum Lines
• Textile
Read More...Use with the following Parker Parflex Division tubing.
• Nylon
• Semi-rigid Nylon
• Polyurethane 90 Durometer Shore A
• Fluoropolymer
Markets:
• Factory/Process Automation
• Packaging
• Petrochemical
• Pneumatics
• Semi-conductor
Features/Benefits:
• Full flow
• Marked with the pneumatic symbol for identification of its function
• Lightweight
• Extremely compact, easy-to-operate lever
• Lever with screwdriver slot to facilitate operation
• Designed for polymer tubing with no tube preparation
• NBR stem seal and o-ring
Applications:
• Machine Tools
• Pneumatic Systems
• Robotics
• Vacuum Lines
• Textile
| Action | Part No. | Availability | Partner Available | Price | UOM | Maximum Operating Temperature | Division | Connection Type | Media | Ball Material | Function | Gripping Ring Material | Stem Material | Handle Type | Configuration | Vacuum Pressure Rating | Seat Material | Orifice Size | Specifications Met | Actuation Type | Connection Size | Seal Material | Maximum Operating Pressure | Vented | Mounting Type | Operation Type | Maximum Flow Rate | Body Material | Application | Product Type | Shape | Minimum Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MV309-10M | Quote Required | $51.89/each | EA | 175 °F | Fluid System Connectors Division | PTC | Compressed Air | Brass | 2-Way, Normally Open, Normally Closed | Stainless Steel | Brass | Nylon | Tube to Tube | 28 Inch-Hg | Nylon | .28 | N/A | Manual | 10 x 10 mm | NBR | 145 psi | No | Panel | n/a | N/A | Nylon | Pneumatics,Packaging, Vacuum,Robotics, Textile | Mini Ball Valve | In-Line | -4 °F | ||
| MV309-4 | Quote Required | 40 In Stock | $36.73/each | EA | 80 °C | Fluid System Connectors Division | PTC | Compressed Air | Brass | 2-Way, Normally Open, Normally Closed | Stainless Steel | Brass | Nylon | Tube to Tube | 28 Inch-Hg | Nylon | .17 | N/A | Manual | 1/4 x 1/4 inch | NBR | 10 bar | No | Panel | n/a | N/A | Nylon | Pneumatics,Packaging, Vacuum,Robotics, Textile | Mini Ball Valve | In-Line | -20 °C | |
| MV309-4M | Quote Required | 3 In Stock | $40.25/each | EA | 175 °F | Fluid System Connectors Division | PTC | Compressed Air | Brass | 2-Way, Normally Open, Normally Closed | Stainless Steel | Brass | Nylon | Tube to Tube | 28 Inch-Hg | Nylon | .10 | N/A | Manual | 4 x 5/32 mm | NBR | 10 bar | No | Panel | n/a | N/A | Nylon | Pneumatics,Packaging, Vacuum,Robotics, Textile | Mini Ball Valve | In-Line | -20 °C | |
| MV309-6 | Quote Required | 11 In Stock | $42.86/each | EA | 80 °C | Fluid System Connectors Division | PTC | Compressed Air | Brass | 2-Way, Normally Open, Normally Closed | Stainless Steel | Brass | Nylon | Tube to Tube | 28 Inch-Hg | Nylon | .25 | N/A | Manual | 3/8 x 3/8 inch | NBR | 145 psi | No | Panel | n/a | N/A | Nylon | Pneumatics,Packaging, Vacuum,Robotics, Textile | Mini Ball Valve | In-Line | -4 °F | |
| MV309-6M | Quote Required | 9 In Stock | $41.61/each | EA | 175 °F | Fluid System Connectors Division | PTC | Compressed Air | Brass | 2-Way, Normally Open, Normally Closed | Stainless Steel | Brass | Nylon | Tube to Tube | 28 Inch-Hg | Nylon | .16 | N/A | Manual | 6 x 6 mm | NBR | 145 psi | No | Panel | n/a | N/A | Nylon | Pneumatics,Packaging, Vacuum,Robotics, Textile | Mini Ball Valve | In-Line | -4 °F | |
| MV309-8M | Quote Required | 45 In Stock | $39.46/each | EA | 80 °C | Fluid System Connectors Division | PTC | Compressed Air | Brass | 2-Way, Normally Open, Normally Closed | Stainless Steel | Brass | Nylon | Tube to Tube | 28 Inch-Hg | Nylon | .24 | N/A | Manual | 8 x 8 mm | NBR | 145 psi | No | Panel | n/a | N/A | Nylon | Pneumatics,Packaging, Vacuum,Robotics, Textile | Mini Ball Valve | In-Line | -4 °F | |
| MVV309-4 | Quote Required | 1 Limited Stock | $34.90/each | EA | 80 °C | Fluid System Connectors Division | PTC | Compressed Air | Brass | 2-Way, Normally Open, Normally Closed | Stainless Steel | Brass | Nylon | Tube to Tube | 28 Inch-Hg | Nylon | .17 | N/A | Manual | 1/4 x 1/4 inch | NBR | 145 psi | Yes | Panel | n/a | N/A | Nylon | Pneumatics,Packaging, Vacuum,Robotics, Textile | Mini Ball Valve | In-Line | -4 °F | |
| MVV309-6 | Quote Required | $40.68/each | EA | 80 °C | Fluid System Connectors Division | PTC | Compressed Air | Brass | 2-Way, Normally Open, Normally Closed | Stainless Steel | Brass | Nylon | Tube to Tube | 28 Inch-Hg | Nylon | .25 | N/A | Manual | 3/8 x 3/8 inch | NBR | 145 psi | Yes | Panel | n/a | N/A | Nylon | Pneumatics,Packaging, Vacuum,Robotics, Textile | Mini Ball Valve | In-Line | -4 °F |
