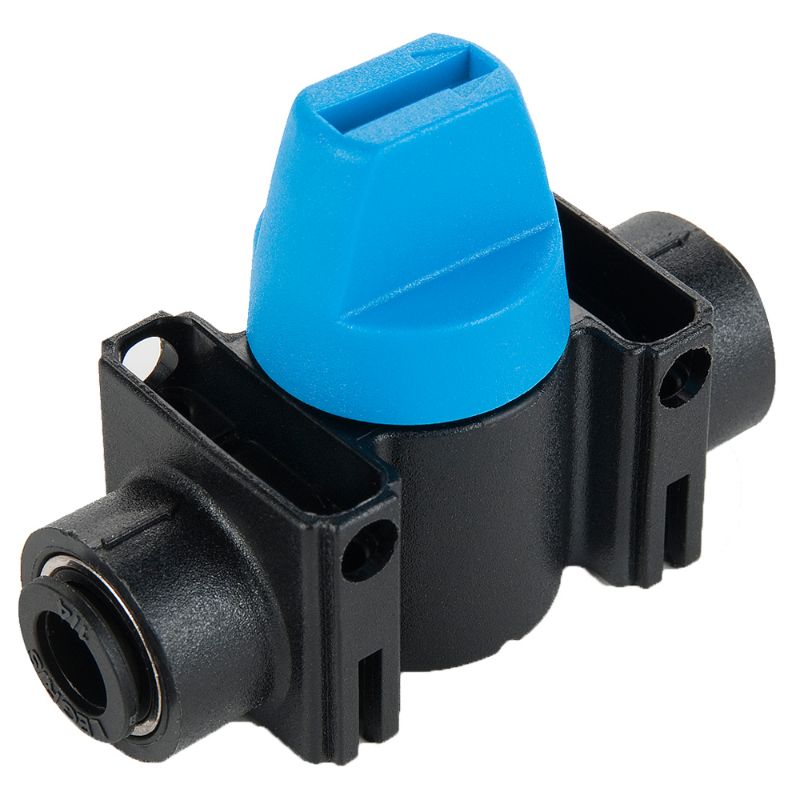

Parker MV309-4M - Mini Ball Valves

Parker's mini ball valves enable in-line opening and closing of a pneumatic circuit. These polymer lightweight ball valves allow for a significant reduction in installation time while offering full flow capability and compact dimensions.

Availability:	Quote Required
Partner Available:	3 In Stock

Brand Parker

Part No. MV309-4M

$37.79

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid System Connectors Division
Minimum Operating Temperature	-20 °C	Vacuum Pressure Rating	28 Inch-Hg
Seal Material	NBR	Specifications Met	N/A
Maximum Operating Pressure	10 bar	Gripping Ring Material	Stainless Steel
Media	Compressed Air	Maximum Operating Temperature	175 °F
Maximum Flow Rate	n/a	Shape	In-Line
Body Material	Nylon	Actuation Type	Manual
Configuration	Tube to Tube	Vented	No
Operation Type	n/a	Function	2-Way, Normally Open, Normally Closed
Application	Pneumatics,Packaging, Vacuum,Robotics, Textile	Connection Size	4 x 5/32 mm
Connection Type	PTC	Handle Type	Nylon
Orifice Size	.10	Product Type	Mini Ball Valve
Ball Material	Brass	Mounting Type	Panel
Seat Material	Nylon	Stem Material	Brass
