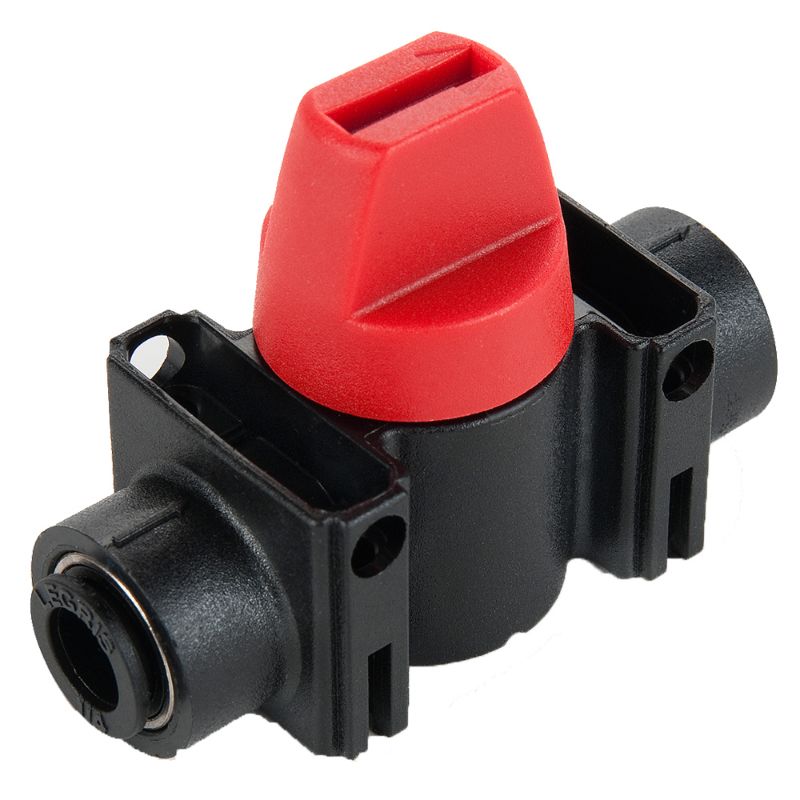

Parker MVV309-4 - Mini Ball Valves

Parker's mini ball valves enable in-line opening and closing of a pneumatic circuit. These polymer lightweight ball valves allow for a significant reduction in installation time while offering full flow capability and compact dimensions.

Availability:	Quote Required
Partner Available:	1 Limited Stock

Brand Parker

Part No. MVV309-4

$32.77

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid System Connectors Division
Maximum Operating Temperature	80 °C	Minimum Operating Temperature	-4 °F
Vacuum Pressure Rating	28 Inch-Hg	Seal Material	NBR
Specifications Met	N/A	Gripping Ring Material	Stainless Steel
Media	Compressed Air	Maximum Flow Rate	n/a
Shape	In-Line	Body Material	Nylon
Maximum Operating Pressure	145 psi	Actuation Type	Manual
Configuration	Tube to Tube	Operation Type	n/a
Vented	Yes	Function	2-Way, Normally Open, Normally Closed
Application	Pneumatics,Packaging, Vacuum,Robotics, Textile	Connection Size	1/4 x 1/4 inch
Connection Type	PTC	Handle Type	Nylon
Orifice Size	.17	Product Type	Mini Ball Valve
Ball Material	Brass	Mounting Type	Panel
Seat Material	Nylon	Stem Material	Brass
