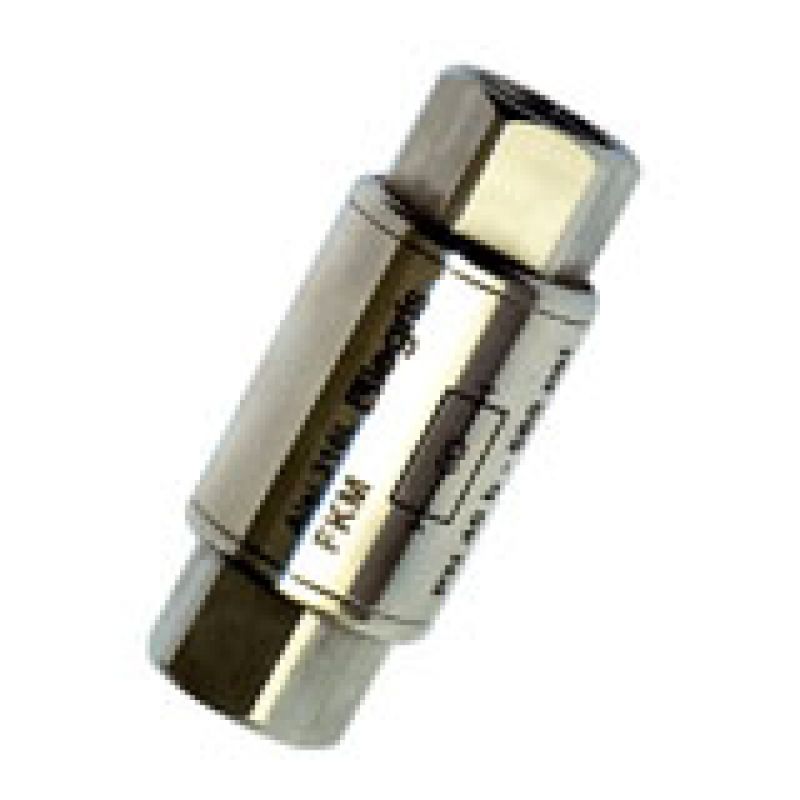

Parker 4895 22 22 - Check Valves

Parker's check valves allow compressed air to flow in one direction and prevent it from flowing in the other. Fitted upstream of the circuit to be protected, they provide total protection.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 4895 22 22

$151.16/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Tube Outside Diameter	N/A
Media	Compressed Air	Body Material	316L Stainless Steel
Connection 1 Size	NPT	Connection 2 Size	NPT
Division	Fluid System Connectors Division	Maximum Operating Temperature	356 °F
Connection Type	NPT	Seal Material	FKM
Maximum Operating Pressure	580 psi	Gripping Ring Material	Stainless Steel
Cracking Pressure	3.6 psi	Thread Material	316L Stainless Steel
Minimum Operating Temperature	-4 °F	Application	Pneumatics, Robotics, Textile, Semi-conductors, Packaging
Valve Configuration	One Way	Connection 2 Thread Size	N/A
Shape	Threaded	Connection 1 Thread Size	1/2 inch
Product Style	Pipe to Pipe	Connection 2 Tube Outside Diameter	N/A
