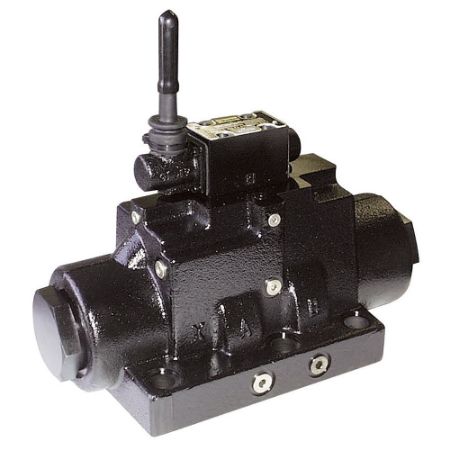

Lever Operated Directional Control Valve - D101VL Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s D101VL directional control valves are available in 2 or 3-position styles. These valves are manifold or subplate mounted which conform to NFPA’s D10, CETOP 10 mounting pattern.
Markets:
• Entertainment Automation
• Factory Automation
• Lumber & Wood
• Machine Tools
• Marine
• Material Handling
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Processing
• Molding
• Oil & Gas
• Other Natural Resources
• Packaging Machinery
• Plastic Packaging
• Power Generation
• Primary Metal Refining/Process
• Printing and Marking Equipment
• Rubber & Tire Processing
• Vehicle Assembly Facilities
Features/Benefits:
• Low pressure drop design
• Low force required to shift spool
• Hardened spools provide long life
Applications:
• Suitable for general hydraulic applications
Read More...Markets:
• Entertainment Automation
• Factory Automation
• Lumber & Wood
• Machine Tools
• Marine
• Material Handling
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Processing
• Molding
• Oil & Gas
• Other Natural Resources
• Packaging Machinery
• Plastic Packaging
• Power Generation
• Primary Metal Refining/Process
• Printing and Marking Equipment
• Rubber & Tire Processing
• Vehicle Assembly Facilities
Features/Benefits:
• Low pressure drop design
• Low force required to shift spool
• Hardened spools provide long life
Applications:
• Suitable for general hydraulic applications
| Action | Part No. | Availability | Partner Available | Price | Seal Material | Maximum Operating Temperature | Division | Maximum Operating Pressure | Minimum Operating Temperature | Options | Mounting Type | Size | Body Material | Maximum Flow Rate | Spool Code | Spool Position | Pilot Inlet / Drain Locations | Weight | Valve Type | Actuation Type | Maximum Operating Pressure | Mounting Type | Maximum Flow Rate | Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D101VL001B1N | Quote Required | TBD | Nitrile | 140 | Hydraulic Valve Systems Division | 3000 | -4 | n/a | Subplate | NFPA D08 | Gray Iron | 250 | 4-Way | Single Operator | Internal Pilot / External Drain | 77.2 | Lever Operated Directional Control Valve | Lever | 3000 PSI | Subplate | 250 GPM | NFPA D08, CETOP 8, NG32 | ||
| D101VL001B1N60 | Quote Required | TBD | Nitrile | 140 | Hydraulic Valve Systems Division | 3000 | -4 | Pilot Choke Meter-in | Subplate | NFPA D08 | Gray Iron | 250 | 4-Way | Single Operator | Internal Pilot / External Drain | 77.2 | Lever Operated Directional Control Valve | Lever | 3000 PSI | Subplate | 250 GPM | NFPA D08, CETOP 8, NG32 | ||
| D101VL001B1N7 | Quote Required | TBD | Nitrile | 140 | Hydraulic Valve Systems Division | 3000 | -4 | Pilot Choke Meter-out | Subplate | NFPA D08 | Gray Iron | 250 | 4-Way | Single Operator | Internal Pilot / External Drain | 77.2 | Lever Operated Directional Control Valve | Lever | 3000 PSI | Subplate | 250 GPM | NFPA D08, CETOP 8, NG32 | ||
| D101VL001B1N8 | Quote Required | TBD | Nitrile | 140 | Hydraulic Valve Systems Division | 3000 | -4 | Stroke Adjust B End | Subplate | NFPA D08 | Gray Iron | 250 | 4-Way | Single Operator | Internal Pilot / External Drain | 77.2 | Lever Operated Directional Control Valve | Lever | 3000 PSI | Subplate | 250 GPM | NFPA D08, CETOP 8, NG32 | ||
| D101VL001B1N89 | Quote Required | TBD | Nitrile | 140 | Hydraulic Valve Systems Division | 3000 | -4 | Stroke Adjust A and B Ends | Subplate | NFPA D08 | Gray Iron | 250 | 4-Way | P to A and B to T in Offset Position | Internal Pilot / External Drain | 77.2 | Lever Operated Directional Control Valve | Lever | 3000 PSI | Subplate | 250 GPM | NFPA D08, CETOP 8, NG32 | ||
| D101VL001B1N9 | Quote Required | TBD | Nitrile | 140 | Hydraulic Valve Systems Division | 3000 | -4 | Stroke Adjust A End | Subplate | NFPA D08 | Gray Iron | 250 | 4-Way | Single Operator | Internal Pilot / External Drain | 77.2 | Lever Operated Directional Control Valve | Lever | 3000 PSI | Subplate | 250 GPM | NFPA D08, CETOP 8, NG32 | ||
| D101VL001B1V | Quote Required | TBD | Fluorocarbon | 140 | Hydraulic Valve Systems Division | 3000 | -4 | n/a | Subplate | NFPA D08 | Gray Iron | 250 | 4-Way | Single Operator | Internal Pilot / External Drain | 77.2 | Lever Operated Directional Control Valve | Lever | 3000 PSI | Subplate | 250 GPM | NFPA D08, CETOP 8, NG32 | ||
| D101VL001B1V60 | Quote Required | TBD | Fluorocarbon | 140 | Hydraulic Valve Systems Division | 3000 | -4 | Pilot Choke Meter-in | Subplate | NFPA D08 | Gray Iron | 250 | 4-Way | Single Operator | Internal Pilot / External Drain | 77.2 | Lever Operated Directional Control Valve | Lever | 3000 PSI | Subplate | 250 GPM | NFPA D08, CETOP 8, NG32 | ||
| D101VL001B1V7 | Quote Required | TBD | Fluorocarbon | 140 | Hydraulic Valve Systems Division | 3000 | -4 | Pilot Choke Meter-out | Subplate | NFPA D08 | Gray Iron | 250 | 4-Way | Single Operator | Internal Pilot / External Drain | 77.2 | Lever Operated Directional Control Valve | Lever | 3000 PSI | Subplate | 250 GPM | NFPA D08, CETOP 8, NG32 | ||
| D101VL001B1V8 | Quote Required | TBD | Fluorocarbon | 140 | Hydraulic Valve Systems Division | 3000 | -4 | Stroke Adjust B End | Subplate | NFPA D08 | Gray Iron | 250 | 4-Way | Single Operator | Internal Pilot / External Drain | 77.2 | Lever Operated Directional Control Valve | Lever | 3000 PSI | Subplate | 250 GPM | NFPA D08, CETOP 8, NG32 | ||
| D101VL001B1V89 | Quote Required | TBD | Fluorocarbon | 140 | Hydraulic Valve Systems Division | 3000 | -4 | Stroke Adjust A and B Ends | Subplate | NFPA D08 | Gray Iron | 250 | 4-Way | Single Operator | Internal Pilot / External Drain | 77.2 | Lever Operated Directional Control Valve | Lever | 3000 PSI | Subplate | 250 GPM | NFPA D08, CETOP 8, NG32 | ||
| D101VL001B1V9 | Quote Required | TBD | Fluorocarbon | 140 | Hydraulic Valve Systems Division | 3000 | -4 | Stroke Adjust A End | Subplate | NFPA D08 | Gray Iron | 250 | 4-Way | Single Operator | Internal Pilot / External Drain | 77.2 | Lever Operated Directional Control Valve | Lever | 3000 PSI | Subplate | 250 GPM | NFPA D08, CETOP 8, NG32 | ||
| D101VL001B2N | Quote Required | TBD | Nitrile | 140 | Hydraulic Valve Systems Division | 3000 | -4 | n/a | Subplate | NFPA D08 | Gray Iron | 250 | 4-Way | Single Operator | External Pilot / External Drain | 77.2 | Lever Operated Directional Control Valve | Lever | 3000 PSI | Subplate | 250 GPM | NFPA D08, CETOP 8, NG32 | ||
| D101VL001B2N60 | Quote Required | TBD | Nitrile | 140 | Hydraulic Valve Systems Division | 3000 | -4 | Pilot Choke Meter-in | Subplate | NFPA D08 | Gray Iron | 250 | 4-Way | Single Operator | External Pilot / External Drain | 77.2 | Lever Operated Directional Control Valve | Lever | 3000 PSI | Subplate | 250 GPM | NFPA D08, CETOP 8, NG32 | ||
| D101VL001B2N7 | Quote Required | TBD | Nitrile | 140 | Hydraulic Valve Systems Division | 3000 | -4 | Pilot Choke Meter-out | Subplate | NFPA D08 | Gray Iron | 250 | 4-Way | Single Operator | External Pilot / External Drain | 77.2 | Lever Operated Directional Control Valve | Lever | 3000 PSI | Subplate | 250 GPM | NFPA D08, CETOP 8, NG32 | ||
| D101VL001B2N8 | Quote Required | TBD | Nitrile | 140 | Hydraulic Valve Systems Division | 3000 | -4 | Stroke Adjust B End | Subplate | NFPA D08 | Gray Iron | 250 | 4-Way | Single Operator | External Pilot / External Drain | 77.2 | Lever Operated Directional Control Valve | Lever | 3000 PSI | Subplate | 250 GPM | NFPA D08, CETOP 8, NG32 | ||
| D101VL001B2N89 | Quote Required | TBD | Nitrile | 140 | Hydraulic Valve Systems Division | 3000 | -4 | Stroke Adjust A and B Ends | Subplate | NFPA D08 | Gray Iron | 250 | 4-Way | Single Operator | External Pilot / External Drain | 77.2 | Lever Operated Directional Control Valve | Lever | 3000 PSI | Subplate | 250 GPM | NFPA D08, CETOP 8, NG32 | ||
| D101VL001B2N9 | Quote Required | TBD | Nitrile | 140 | Hydraulic Valve Systems Division | 3000 | -4 | Stroke Adjust A End | Subplate | NFPA D08 | Gray Iron | 250 | 4-Way | Single Operator | External Pilot / External Drain | 77.2 | Lever Operated Directional Control Valve | Lever | 3000 PSI | Subplate | 250 GPM | NFPA D08, CETOP 8, NG32 | ||
| D101VL001B2V | Quote Required | TBD | Fluorocarbon | 140 | Hydraulic Valve Systems Division | 3000 | -4 | n/a | Subplate | NFPA D08 | Gray Iron | 250 | 4-Way | Single Operator | External Pilot / External Drain | 77.2 | Lever Operated Directional Control Valve | Lever | 3000 PSI | Subplate | 250 GPM | NFPA D08, CETOP 8, NG32 | ||
| D101VL001B2V60 | Quote Required | TBD | Fluorocarbon | 140 | Hydraulic Valve Systems Division | 3000 | -4 | Pilot Choke Meter-in | Subplate | NFPA D08 | Gray Iron | 250 | 4-Way | Single Operator | External Pilot / External Drain | 77.2 | Lever Operated Directional Control Valve | Lever | 3000 PSI | Subplate | 250 GPM | NFPA D08, CETOP 8, NG32 |
