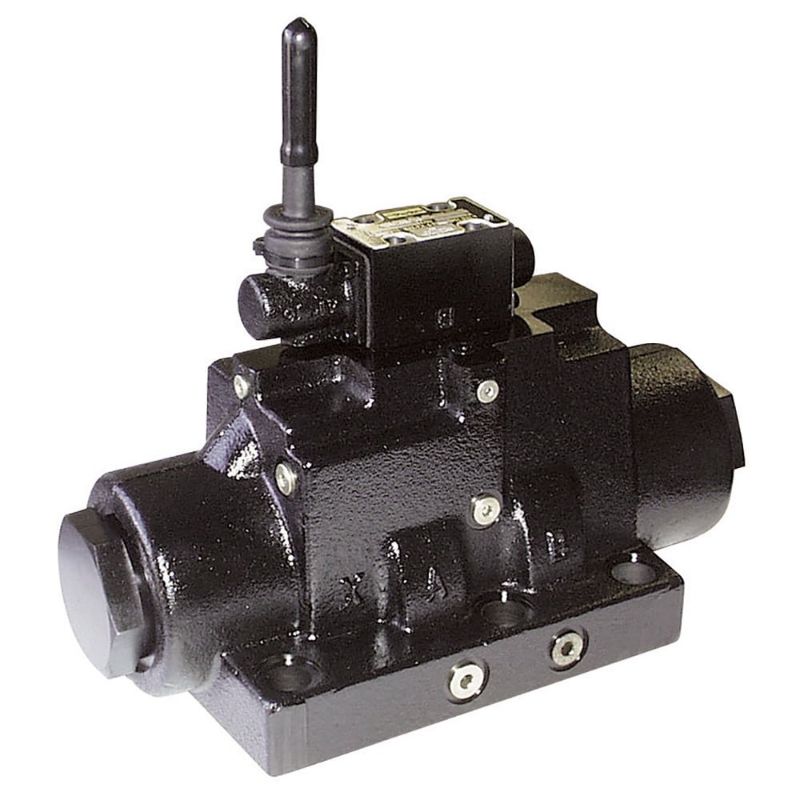

Parker D101VL001C4V - Lever Operated Directional Control Valve - D101VL Series

Parker’s D101VL directional control valves are 5-chamber, lever operated valves.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. D101VL001C4V

$4,665.00

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Fluorocarbon
Maximum Operating Temperature	140	Division	Hydraulic Valve Systems Division
Maximum Operating Pressure	3000	Minimum Operating Temperature	-4
Options	n/a	Mounting Type	Subplate
Size	NFPA D08	Body Material	Gray Iron
Maximum Flow Rate	250	Spool Code	4-Way
Pilot Inlet / Drain Locations	Internal Pilot / Internal Drain	Spool Position	Double Operator
Weight	77.2	Valve Type	Lever Operated Directional Control Valve
Actuation Type	Lever	Maximum Operating Pressure	3000 PSI
Mounting Type	Subplate	Maximum Flow Rate	250 GPM
Size	NFPA D08, CETOP 8, NG32
