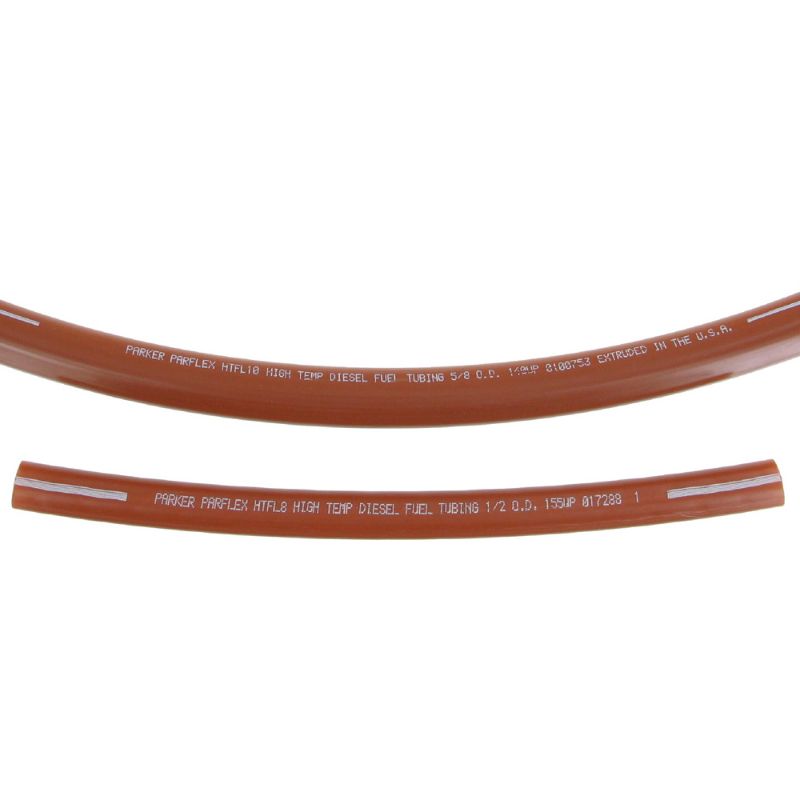

Parker HTFL-6B-BRN-500 - Diesel Fuel Tubing

Parker's Nylon Diesel Fuel Tubing - HTFL & PFT diesel fuel line tubing is heat and light stabilized, quality controlled and pressure tested for superior performance.

Availability:	Quote Required
Partner Available:	428 In Stock

Brand Parker

Part No. HTFL-6B-BRN-500

$2.86

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	FT	Minimum Operating Temperature	-46 °C
Media	Fuels (Diesel)	Minimum Bend Radius	38 mm
Division	Parflex Division	Specifications Met	MIL-DTL-83133 HTFL Tubing Compatible with JP-5 and JP-8
Application	Transportation	Compatible Fitting	NTA®
Tube Inside Diameter	6 mm	Maximum Operating Temperature	266 °F
Maximum Operating Pressure	175 psi	Product Type	High Temperature up to 266˚F (130˚C)
Tube Outside Diameter	3/8 inch	Size	-6
Tube Material	Polyamide (PA)	Length per Package	152.4 m
Minimum Burst Pressure	96.5 bar	Weight	0.042 kg/m
Cover Color	Brown	Color	Brown
Cover Material	Polyamide (PA)	Order Size	3/8
Product Style	HTFL - Temp. up to 266˚F (130˚C)
