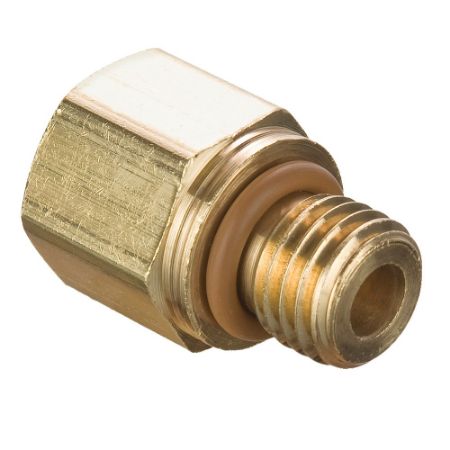

ISO Port Adapters

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker's ISO Port Adapters are ideal in systems with high pressure and cycling providing reliable, long-term sealing. ISO port adapters meet dimensional requirements of ISO 6149-3 and SAE 2244-3. A Fluorocarbon O-ring is standard on all ISO port adapters so no thread sealant is needed, reducing maintenance and component replacement costs as a result of contaminating and damaging of components due to the sealant.

Markets:
• Industrial
• Construction
• Mobile
• Factory/process automation

Features/Benefit:
• All brass construction
• No thread sealant
• Fluorocarbon O-ring reduces maintenance and replacement costs as a result of contamination and damage to components due to sealant
• Long term sealing
• Improves assembly time

Applications:
• Air lines
• Water lines
• Cooling lines

Custom configurations and sizes are available upon request. Contact us for additional information.

View as Grid List

Sort by

Display per page

Part No.	Availability	Partner Available	Price	UOM	Division	Body Material	Maximum Operating Temperature	Minimum Operating Temperature	Tube Material	O-Ring Material	Specifications Met	Maximum Operating Pressure	Minimum Operating Pressure	Shape	Connection 1 Style	Connection 2 Thread Size (inch)	Style	Connection 1 Tube O.D. (inch)	Dimensional Weight
1/8F3HG-B	67 In Stock	1396 In Stock	$3.16/each	EA	Fluid System Connectors Division	Brass	150 °C	-40 °F	Copper, Brass, Iron Pipe	Fluorocarbon	na	69 bar	1000 psi	Male	Male	1/8	Metric Adapter	1/8
179HB-16-MI27	Quote Required	Quote Required	$62.42/each	EA	Fluid System Connectors Division	Brass	71 °C	-40 °F	Copper, Brass, J844 Type A & B Nylon Tubing	Fluorocarbon	ISO 6149-3, SAE 2244-3	10 bar	-40 psi	45° Elbow	Beaded Hose Barb	M27x2.0	Beaded Hose Barb to Metric	1
222P-2-MI10	Quote Required	Quote Required	$10.27/each	EA	Fluid System Connectors Division	Brass	250 °F	-65 °F	Copper, Brass, J844 Type A & B Nylon Tubing		ISO 6149-3, SAE 2244-3	68 bar	-53 psi	Adapter	Female Pipe	M10x1.0	Female Pipe to Metric	1/8	0.27594424460431655 lb
222P-4-MI12	Quote Required	3 In Stock	$17.06/each	EA	Fluid System Connectors Division	Brass	250 °F	-65 °F	Copper, Brass, J844 Type A & B Nylon Tubing		ISO 6149-3, SAE 2244-3	68 bar	-53 psi	Adapter	Female Pipe	M12x1.5	Female Pipe to Metric	1/4	0.27594424460431655 lb
222P-4-MI14	Quote Required	Quote Required	$25.86/each	EA	Fluid System Connectors Division	Brass	121 °C	-65 °F	Copper, Brass, J844 Type A & B Nylon Tubing	Fluorocarbon	ISO 6149-3, SAE 2244-3	1000 psi	-53 psi	Adapter	Female Pipe	M14x1.5	Female Pipe to Metric	1/4	2.7594424460431655 lb
222P-6-MI16	Quote Required	Quote Required	$17.42/each	EA	Fluid System Connectors Division	Brass	250 °F	-65 °F	Copper, Brass, J844 Type A & B Nylon Tubing		ISO 6149-3, SAE 2244-3	1000 psi	-53 psi	Adapter	Female Pipe	M16x1.5	Female Pipe to Metric	3/8	0.27594424460431655 lb
222P-6-MI22	Quote Required	4 In Stock	$10.95/each	EA	Fluid System Connectors Division	Brass	250 °F	-65 °F	Copper, Brass, J844 Type A & B Nylon Tubing		ISO 6149-3, SAE 2244-3	68 bar	-53 psi	Adapter	Female Pipe	M22x1.5	Female Pipe to Metric	3/8	0.27594424460431655 lb
68HB-10-MI27	Quote Required	42 In Stock	$33.12/each	EA	Fluid System Connectors Division	Brass	71 °C	-40 °F	Copper, Brass, J844 Type A & B Nylon Tubing	Fluorocarbon	ISO 6149-3, SAE 2244-3	150 psi	-40 psi	Connector	Beaded Hose Barb	M27x2.0	Beaded Hose Barb to Metric	5/8
68HB-6-MI12	Quote Required	1 Limited Stock	$10.30/each	EA	Fluid System Connectors Division	Brass								Connector	Beaded Hose Barb	M12x1.5	Beaded Hose Barb to Metric	3/8
68NTA-4-MI10	Quote Required	Quote Required	$18.43/each	EA	Fluid System Connectors Division	Brass	200 °F	-40 °F	Copper, Brass, J844 Type A & B Nylon Tubing	Fluorocarbon	ISO 6149-3, SAE 2244-3	10 bar	-40 psi	Connector	Compression	M10x1.0	Compression to Metric	1/4
