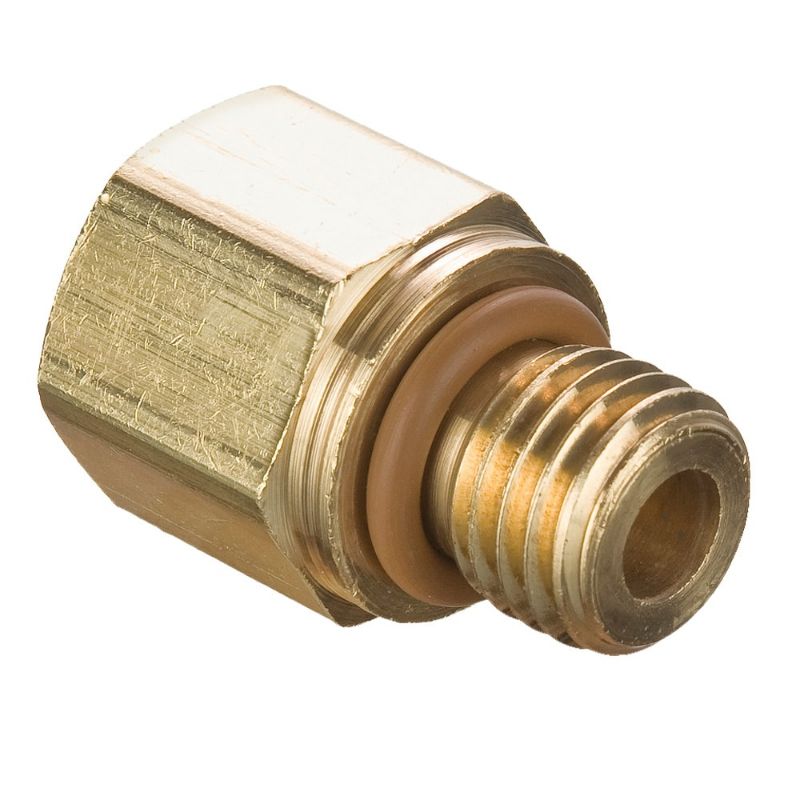

Parker 222P-6-MI16 - ISO Port Adapters

Parker's ISO Port Adapters are ideal in systems with high pressure and cycling providing reliable, long-term sealing. ISO port adapters meet dimensional requirements of ISO 6149-3 and SAE 2244-3.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 222P-6-MI16

$17.42/each

Products specifications

Attribute name	Attribute value
UOM	EA	Minimum Operating Pressure	-53 psi
Minimum Operating Temperature	-65 °F	Body Material	Brass
Tube Material	Copper, Brass, J844 Type A & B Nylon Tubing	Specifications Met	ISO 6149-3, SAE 2244-3
Maximum Operating Pressure	1000 psi	Maximum Operating Temperature	250 °F
Dimensional Weight	0.27594424460431655 lb	Division	Fluid System Connectors Division
Shape	Adapter	Connection 1 Tube O.D. (inch)	3/8
Style	Female Pipe to Metric	Connection 1 Style	Female Pipe
Connection 2 Thread Size (inch)	M16x1.5
