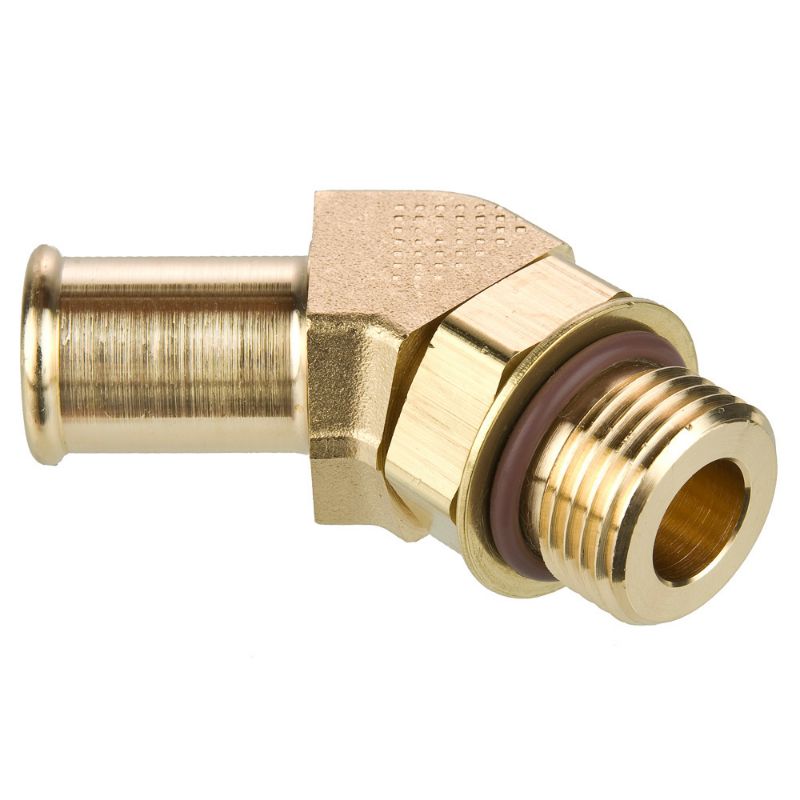

Parker 179HB-16-MI27 - ISO Port Adapters

Parker's ISO Port Adapters are ideal in systems with high pressure and cycling providing reliable, long-term sealing. ISO port adapters meet dimensional requirements of ISO 6149-3 and SAE 2244-3.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 179HB-16-MI27

$58.61

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid System Connectors Division
Body Material	Brass	Minimum Operating Temperature	-40 °F
O-Ring Material	Fluorocarbon	Maximum Operating Pressure	10 bar
Tube Material	Copper, Brass, J844 Type A & B Nylon Tubing	Specifications Met	ISO 6149-3, SAE 2244-3
Maximum Operating Temperature	71 °C	Minimum Operating Pressure	-40 psi
Shape	45° Elbow	Connection 2 Thread Size (inch)	M27x2.0
Connection 1 Tube O.D. (inch)	1	Style	Beaded Hose Barb to Metric
Connection 1 Style	Beaded Hose Barb
