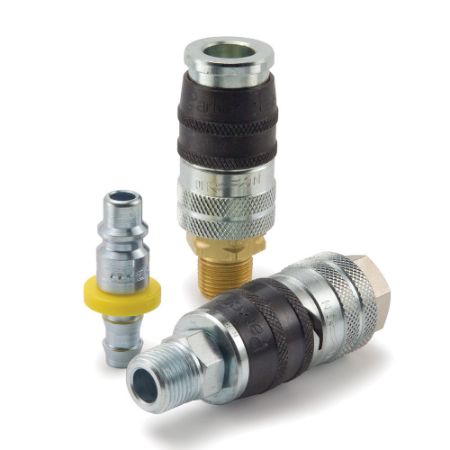

Industrial Interchange, Safety Quick Connect Air Couplers, ISO 4414 - E-z-mate Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
E-z-mate Series Quick Connect Air Couplers, up to 300 psi, connect with Industrial Interchange Nipples. Parker's E-z-mate Series are pressure venting style, push to connect couplers that turn the air flow on and off with a simple twist. These pressure venting style couplers allow disconnection at zero pressure to avoid dangerous hose whip. E-z-mate Series meets ISO 4414 requirements for a controlled pressure release system.
Technical Characteristics:
• Sizes: 1/4”, 3/8", 1/2", 3/4”
• Materials: Steel
• Port Ends: Female NPTF, Male NPTF, Standard Hose Barb, Push-Lok Hose Barb
• Seal Options: Nitrile
Markets:
• Industrial
• Construction
• Automotive service and repair
• Factory automation
Features/Benefits:
• Twist to open air flow then twist to close air flow and vent trapped pressure. Relieves air pressure prior to disconnection, eliminating the risk of hose whip
• Meets ISO 4414 requirements for a controlled pressure release system
• Easy push to connect operation
• Self locking valve sleeve guards against accidental disconnection
• Connects with Parker's Industrial Interchange Nipples and others manufactured to A-A-59439 (MIL-C-4109F, ISO 6150-B)
Applications:
• Air compressors
• Pneumatic air tools and hoses
• Drop-down air lines
• Blow guns
Read More...Technical Characteristics:
• Sizes: 1/4”, 3/8", 1/2", 3/4”
• Materials: Steel
• Port Ends: Female NPTF, Male NPTF, Standard Hose Barb, Push-Lok Hose Barb
• Seal Options: Nitrile
Markets:
• Industrial
• Construction
• Automotive service and repair
• Factory automation
Features/Benefits:
• Twist to open air flow then twist to close air flow and vent trapped pressure. Relieves air pressure prior to disconnection, eliminating the risk of hose whip
• Meets ISO 4414 requirements for a controlled pressure release system
• Easy push to connect operation
• Self locking valve sleeve guards against accidental disconnection
• Connects with Parker's Industrial Interchange Nipples and others manufactured to A-A-59439 (MIL-C-4109F, ISO 6150-B)
Applications:
• Air compressors
• Pneumatic air tools and hoses
• Drop-down air lines
• Blow guns
| Action | Part No. | Availability | Partner Available | Price | UOM | Sleeve Type | Seal Material | Plating Type | Valve Type | Media | Special Option | Coupling Half | Dimensional Weight | Lock Type | Minimum Operating Temperature | Division | Application | Maximum Operating Pressure | Specifications Met | Maximum Operating Temperature | Body Material | Connection Type | Thread Style | Connection Thread Size (inch) | Body Size (inch) | Connection Hose I.D. (inch) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EZ-251-4FP | 41 In Stock | 258 In Stock | $54.74/each | EA | Push to Connect | Nitrile | Zinc with clear trivalent chromate on steel body | Tubular | Compressed Air | Exhaust - venting | Coupler | 0.062320143884892085 lb | Locking balls | -40 °F | Quick Coupling Division | Air | 300 psi | Connects with pneumatic Industrial Interchange nipples A-A-59439 (MIL-C-4109F, ISO 6150-B) | 250 °F | Steel | NPTF | Female | 1/4 - 18 | 1/4 | na | |
| EZ-251-4HB | 18 In Stock | 3 In Stock | $92.80/each | EA | Push to Connect | Nitrile | Zinc with clear trivalent chromate on steel body | Tubular | Compressed Air | Exhaust - venting | Coupler | 0.062320143884892085 lb | Locking balls | -40 °F | Quick Coupling Division | Air | 300 psi | ISO 4414 controlled pressure release | 250 °F | Steel | Hose barb | na | na | 1/4 | 1/4 | |
| EZ-251-4MP | 30 In Stock | 309 In Stock | $64.88/each | EA | Push to Connect | Nitrile | Zinc with clear trivalent chromate on steel body | Tubular | Compressed Air | Exhaust - venting | Coupler | 0.062320143884892085 lb | Locking balls | -40 °F | Quick Coupling Division | Air | 300 psi | ISO 4414 controlled pressure release | 250 °F | Steel | NPTF | Male | 1/4 - 18 | 1/4 | na | |
| EZ-251-4PL | Quote Required | 92 In Stock | $93.02/each | EA | Push to Connect | Nitrile | Zinc with clear trivalent chromate on steel body | Tubular | Compressed Air | Exhaust - venting | Coupler | 0.062320143884892085 lb | Locking balls | -40 °F | Quick Coupling Division | Air | 300 psi | ISO 4414 controlled pressure release | 250 °F | Steel | Push-Lok hose barb | na | na | 1/4 | 1/4 | |
| EZ-251-6FP | 24 In Stock | 45 In Stock | $59.49/each | EA | Push to Connect | Nitrile | Zinc with clear trivalent chromate on steel body | Tubular | Compressed Air | Exhaust - venting | Coupler | 0.062320143884892085 lb | Locking balls | -40 °F | Quick Coupling Division | Air | 300 psi | Connects with pneumatic Industrial Interchange nipples A-A-59439 (MIL-C-4109F, ISO 6150-B) | 250 °F | Steel | NPTF | Female | 3/8 - 18 | 1/4 | na | |
| EZ-251-6MP | Quote Required | 15 In Stock | $78.66/each | EA | Push to Connect | Nitrile | Zinc with clear trivalent chromate on steel body | Tubular | Compressed Air | Exhaust - venting | Coupler | 0.062320143884892085 lb | Locking balls | -40 °F | Quick Coupling Division | Air | 300 psi | ISO 4414 controlled pressure release | 250 °F | Steel | NPTF | Male | 3/8 - 18 | 1/4 | na | |
| EZ-251-6PL | Quote Required | 68 In Stock | $88.99/each | EA | Push to Connect | Nitrile | Zinc with clear trivalent chromate on steel body | Tubular | Compressed Air | Exhaust - venting | Coupler | 0.062320143884892085 lb | Locking balls | -40 °F | Quick Coupling Division | Air | 300 psi | ISO 4414 controlled pressure release | 250 °F | Steel | Push-Lok hose barb | na | na | 1/4 | 3/8 | |
| EZ-371-6FP | 53 In Stock | 218 In Stock | $66.42/each | EA | Push to Connect | Nitrile | Zinc with clear trivalent chromate on steel body | Tubular | Compressed Air | Exhaust - venting | Coupler | 0.05341726618705036 lb | Locking balls | -40 °F | Quick Coupling Division | Air | 300 psi | Connects with pneumatic Industrial Interchange nipples A-A-59439 (MIL-C-4109F, ISO 6150-B) | 250 °F | Steel | NPTF | Female | 3/8 - 18 | 3/8 | na | |
| EZ-371-6HB | 1 Limited Stock | 32 In Stock | $86.32/each | EA | Push to Connect | Nitrile | Zinc with clear trivalent chromate on steel body | Tubular | Compressed Air | Exhaust - venting | Coupler | 0.12464028776978417 lb | Locking balls | -40 °F | Quick Coupling Division | Air | 300 psi | ISO 4414 controlled pressure release | 250 °F | Steel | Hose barb | na | na | 3/8 | 3/8 | |
| EZ-371-6MP | 2 Limited Stock | 149 In Stock | $78.33/each | EA | Push to Connect | Nitrile | Zinc with clear trivalent chromate on steel body | Tubular | Compressed Air | Exhaust - venting | Coupler | 0.12464028776978417 lb | Locking balls | -40 °F | Quick Coupling Division | Air | 300 psi | ISO 4414 controlled pressure release | 250 °F | Steel | NPTF | Male | 3/8 - 18 | 3/8 | na | |
| EZ-371-6PL | Quote Required | 70 In Stock | $80.67/each | EA | Push to Connect | Nitrile | Zinc with clear trivalent chromate on steel body | Tubular | Compressed Air | Exhaust - venting | Coupler | 0.12464028776978417 lb | Locking balls | -40 °F | Quick Coupling Division | Air | 300 psi | ISO 4414 controlled pressure release | 250 °F | Steel | Push-Lok hose barb | na | na | 3/8 | 3/8 | |
| EZ-371-8FP | 1 Limited Stock | 35 In Stock | $73.28/each | EA | Push to Connect | Nitrile | Zinc with clear trivalent chromate on steel body | Tubular | Compressed Air | Exhaust - venting | Coupler | 0.12464028776978417 lb | Locking balls | -40 °F | Quick Coupling Division | Air | 300 psi | Connects with pneumatic Industrial Interchange nipples A-A-59439 (MIL-C-4109F, ISO 6150-B) | 250 °F | Steel | NPTF | Female | 1/2 - 14 | 3/8 | na | |
| EZ-501-12FP | Quote Required | 26 In Stock | $90.42/each | EA | Push to Connect | Nitrile | Zinc with clear trivalent chromate on steel body | Tubular | Compressed Air | Exhaust - venting | Coupler | 0.12464028776978417 lb | Locking balls | -40 °F | Quick Coupling Division | Air | 300 psi | Connects with pneumatic Industrial Interchange nipples A-A-59439 (MIL-C-4109F, ISO 6150-B) | 250 °F | Steel | NPTF | Female | 3/4 - 14 | 1/2 | na | |
| EZ-501-8FP | 50 In Stock | 259 In Stock | $72.06/each | EA | Push to Connect | Nitrile | Zinc with clear trivalent chromate on steel body | Tubular | Compressed Air | Exhaust - venting | Coupler | 0.12464028776978417 lb | Locking balls | -40 °F | Quick Coupling Division | Air | 300 psi | Connects with pneumatic Industrial Interchange nipples A-A-59439 (MIL-C-4109F, ISO 6150-B) | 250 °F | Steel | NPTF | Female | 1/2 - 14 | 1/2 | na | |
| EZ-501-8HB | Quote Required | 17 In Stock | $90.92/each | EA | Push to Connect | Nitrile | Zinc with clear trivalent chromate on steel body | Tubular | Compressed Air | Exhaust - venting | Coupler | 0.12464028776978417 lb | Locking balls | -40 °F | Quick Coupling Division | Air | 300 psi | ISO 4414 controlled pressure release | 250 °F | Steel | Hose barb | na | na | 1/2 | 1/2 | |
| EZ-501-8MP | Quote Required | 267 In Stock | $86.35/each | EA | Push to Connect | Nitrile | Zinc with clear trivalent chromate on steel body | Tubular | Compressed Air | Exhaust - venting | Coupler | 0.12464028776978417 lb | Locking balls | -40 °F | Quick Coupling Division | Air | 300 psi | ISO 4414 controlled pressure release | 250 °F | Steel | NPTF | Male | 1/2 - 14 | 1/2 | na | |
| EZ-501-8PL | Quote Required | 33 In Stock | $89.60/each | EA | Push to Connect | Nitrile | Zinc with clear trivalent chromate on steel body | Tubular | Compressed Air | Exhaust - venting | Coupler | 0.12464028776978417 lb | Locking balls | -40 °F | Quick Coupling Division | Air | 300 psi | ISO 4414 controlled pressure release | 250 °F | Steel | Push-Lok hose barb | na | na | 1/2 | 1/2 | |
| EZ-751-12FP | Quote Required | 28 In Stock | $122.86/each | EA | Push to Connect | Nitrile | Zinc with clear trivalent chromate on steel body | Tubular | Compressed Air | Exhaust - venting | Coupler | 0.12464028776978417 lb | Locking balls | -40 °F | Quick Coupling Division | Air | 300 psi | Connects with pneumatic Industrial Interchange nipples A-A-59439 (MIL-C-4109F, ISO 6150-B) | 250 °F | Steel | NPTF | Female | 3/4 - 14 | 3/4 | na | |
| EZ-751-12MP | 1 Limited Stock | 8 In Stock | $154.62/each | EA | Push to Connect | Nitrile | Zinc with clear trivalent chromate on steel body | Tubular | Compressed Air | Exhaust - venting | Coupler | 0.12464028776978417 lb | Locking balls | -40 °F | Quick Coupling Division | Air | 300 psi | ISO 4414 controlled pressure release | 250 °F | Steel | NPTF | Male | 3/4 - 14 | 3/4 | na | |
| EZ-751-16FP | Quote Required | 18 In Stock | $137.76/each | EA | Push to Connect | Nitrile | Zinc with clear trivalent chromate on steel body | Tubular | Compressed Air | Exhaust - venting | Coupler | 0.12464028776978417 lb | Locking balls | -40 °F | Quick Coupling Division | Air | 300 psi | Connects with pneumatic Industrial Interchange nipples A-A-59439 (MIL-C-4109F, ISO 6150-B) | 250 °F | Steel | NPTF | Female | 1 - 11 1/2 | 3/4 | na |
