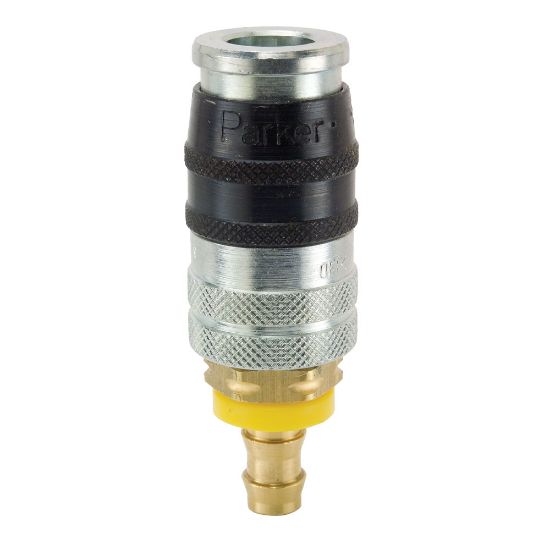

Parker EZ-371-6PL - Industrial Interchange, Safety Quick Connect Air Couplers, ISO 4414 - E-z-mate Series

Parker's pressure venting, Industrial Interchange pneumatic, quick connect air couplers are ideal for use in applications where low pressure air lines require fast and easy connection and disconnection with a controlled pressure release system.

Availability:	Quote Required
Partner Available:	97 In Stock

Brand Parker

Part No. EZ-371-6PL

$78.32

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Minimum Operating Temperature	-40 °F
Lock Type	Locking balls	Division	Quick Coupling Division
Maximum Operating Pressure	300 psi	Body Material	Steel
Maximum Operating Temperature	250 °F	Sleeve Type	Push to Connect
Seal Material	Nitrile	Plating Type	Zinc with clear trivalent chromate on steel body
Dimensional Weight	0.12464028776978417 lb	Specifications Met	ISO 4414 controlled pressure release
Media	Compressed Air	Valve Type	Tubular
Special Option	Exhaust - venting	Coupling Half	Coupler
Application	Air	Connection Hose I.D. (inch)	3/8
Body Size (inch)	3/8	Connection Type	Push-Lok hose barb
Connection Thread Size (inch)	na	Thread Style	na
