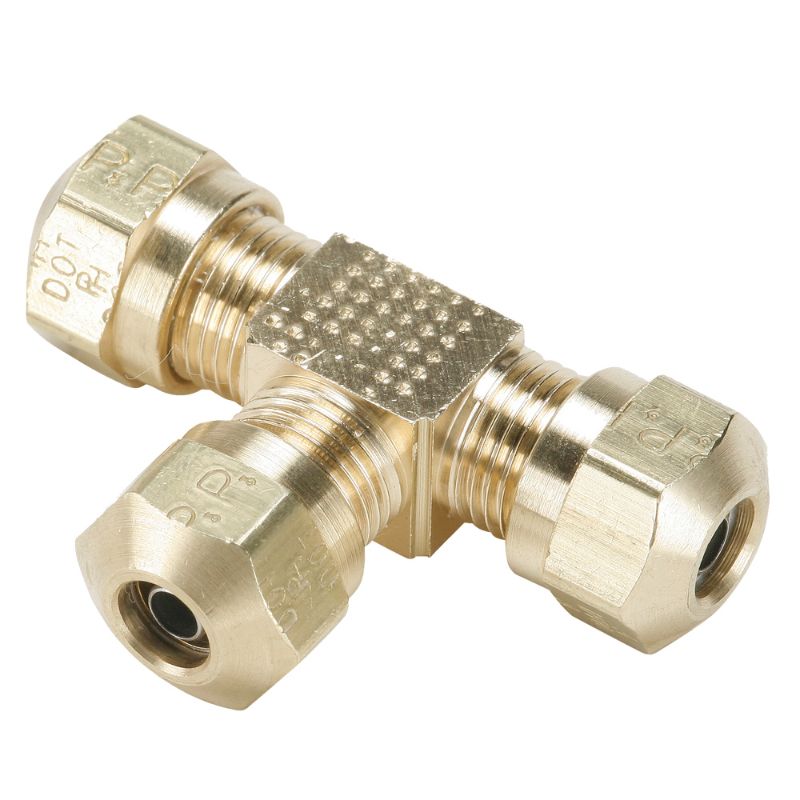

Parker 264NTA-6 - Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA

Name: Parker 264NTA-6 - Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA
SKU: 264NTA-6
Price: 21.75 USD
Availability: InStock

Parker's NTA compression style air brake fittings meet D.O.T. FMVSS 571.106 specifications and the functional requirements of SAE J246 and SAE J1131.

Availability:

15 In Stock

Norfolk, VA	4
Jacksonville, FL	2
Ashland, VA	2
Knoxville, TN	2
Knoxville, TN	2
Johnson City, TN	2
Sumter, SC	1

Partner Available:

233 In Stock

Brand Parker

Part No. 264NTA-6

$21.75

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid System Connectors Division
Body Material	Brass	Minimum Operating Temperature	-40 °C
Maximum Operating Pressure	150 psi	Maximum Operating Temperature	200 °F
Dimensional Weight	0.27594424460431655 lb	Nut Material	Brass
Sleeve Material	Brass	Application	Air Brake, Accessories
Tube Material	Stainless Steel	Specifications Met	DOT FMVSS 571.106, SAE J1131, SAE J246
Thread Sealant Material	Vibra-Seal 516	Connection 3 Style	na
Connection 3 Thread Size (inch)	na	Shape	Tee
Connection 2 Thread Size (inch)	na	Connection 2 Tube O.D. (inch)	3/8
Connection 1 Style	Compression	Style	Tube to Tube
Connection 2 Style	Compression	Connection 1 Tube O.D. (inch)	3/8

California Residents: Prop-65 Warning

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Compliance, Certifications & Safety, Literature and Reference Materials

FSC REACH Product Declaration (PDF)
