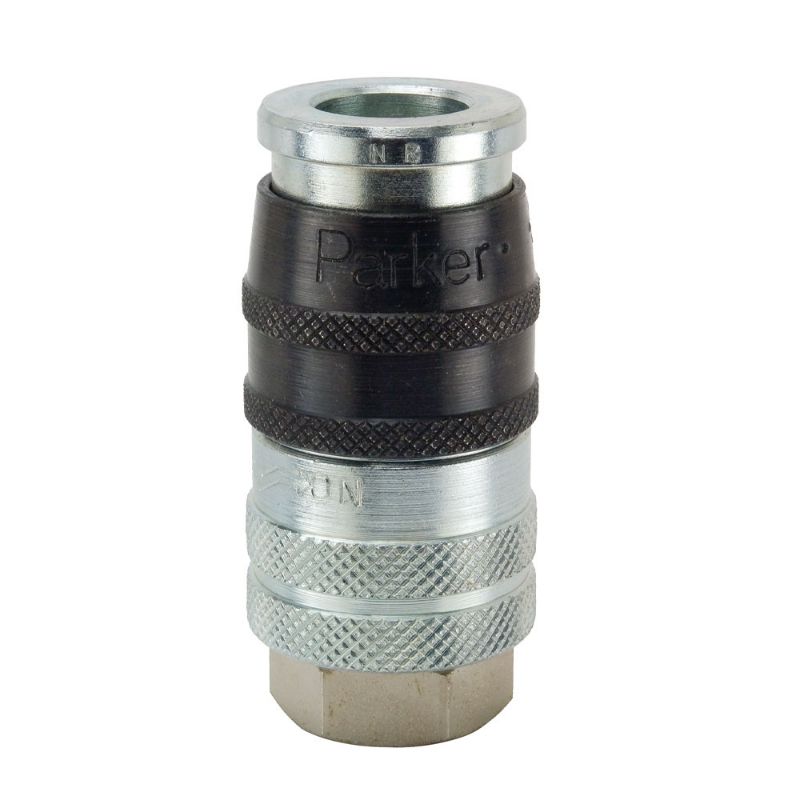

Parker EZ-501-12FP - Industrial Interchange, Safety Quick Connect Air Couplers, ISO 4414 - E-z-mate Series

Parker's pressure venting, Industrial Interchange pneumatic, quick connect air couplers are ideal for use in applications where low pressure air lines require fast and easy connection and disconnection with a controlled pressure release system.

AFP Availability:	Quote Required
Partner Available:	21 In Stock

Brand Parker

Part No. EZ-501-12FP

$90.42/each

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40 °F	Plating Type	Zinc with clear trivalent chromate on steel body
Application	Air	Special Option	Exhaust - venting
Specifications Met	Connects with pneumatic Industrial Interchange nipples A-A-59439 (MIL-C-4109F, ISO 6150-B)	Maximum Operating Pressure	300 psi
Seal Material	Nitrile	Coupling Half	Coupler
Division	Quick Coupling Division	Valve Type	Tubular
Dimensional Weight	0.12464028776978417 lb	Maximum Operating Temperature	250 °F
Sleeve Type	Push to connect	Media	Compressed air
Lock Type	Locking balls	Body Material	Steel
Body Size (inch)	1/2	Thread Style	Female
Connection Type	NPTF	Connection Hose I.D. (inch)	na
Connection Thread Size (inch)	3/4 - 14

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
