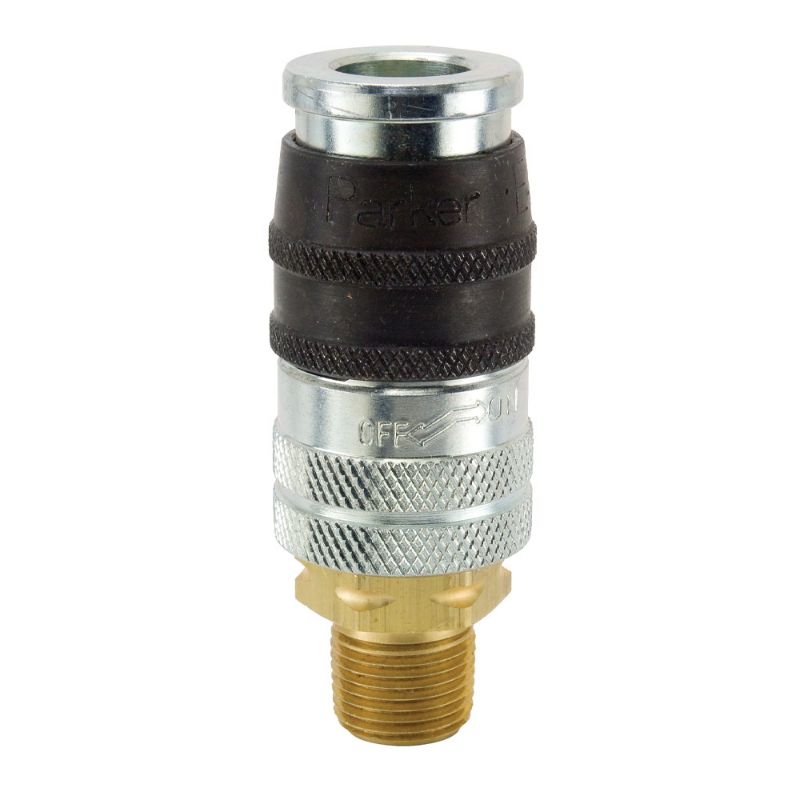

Parker EZ-251-6MP - Industrial Interchange, Safety Quick Connect Air Couplers, ISO 4414 - E-z-mate Series

Parker's pressure venting, Industrial Interchange pneumatic, quick connect air couplers are ideal for use in applications where low pressure air lines require fast and easy connection and disconnection with a controlled pressure release system.

Availability:	Quote Required
Partner Available:	21 In Stock

Brand Parker

Part No. EZ-251-6MP

$76.37

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Application	Air
Lock Type	Locking balls	Division	Quick Coupling Division
Dimensional Weight	0.062320143884892085 lb	Minimum Operating Temperature	-40 °F
Maximum Operating Pressure	300 psi	Maximum Operating Temperature	250 °F
Body Material	Steel	Seal Material	Nitrile
Specifications Met	ISO 4414 controlled pressure release	Sleeve Type	Push to Connect
Plating Type	Zinc with clear trivalent chromate on steel body	Media	Compressed Air
Valve Type	Tubular	Special Option	Exhaust - venting
Coupling Half	Coupler	Thread Style	Male
Connection Hose I.D. (inch)	na	Body Size (inch)	1/4
Connection Thread Size (inch)	3/8 - 18	Connection Type	NPTF

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
