Compression Style Plastic Fittings, Fast-Tite

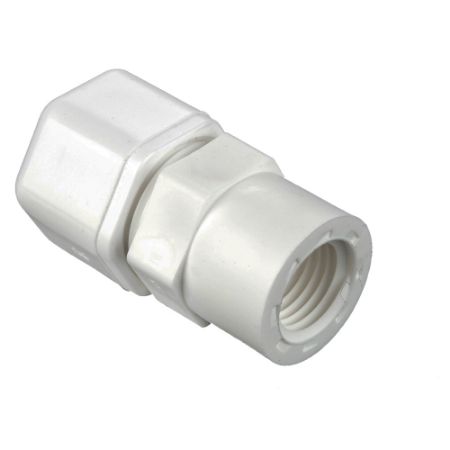

Picture for category Compression Style Plastic Fittings, Fast-Tite

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker's Fast & Tite fittings are a compression style fitting that installs in seconds without tools and provides a tight, sure, leak proof seal without clamps or adjustments. A unique grab ring for tube retention, coupled with a Nitrile o-ring creates a positive seal and assures good tube retention with only hand tight assembly.
Use with soft metal, glass tubing and the following Parker Parflex Division tubing.

• Polyethylene
• Nylon
• Polypropylene
• Polyurethane
• PTFE
• FEP
• PFA

Markets:
• Water Filtration
• Beverage Dispensing
• Packaging
• Life Science
• Bottling
• Semi-Conductor

Features/Benefits:
• White or black Polypropylene or white Nylon
• Installs in seconds without tools
• 302 stainless steel grab ring for tube retention
• Nitrile O-ring for positive seal
• FDA compliant , NSF-51
• Hand tight assembly

Applications:
• Water Lines
• Beverage Lines
• Food
• Cooling Systems

Custom configurations and sizes are available upon request. Contact us for additional information.

Read More...
View as Grid List
Sort by
Display per page
ActionPart No.AvailabilityPartner AvailablePriceUOMDivisionBody MaterialProduct StyleBody MaterialConnection 1 TypeConnection 1 Tube Outside DiameterGripping Ring MaterialO-Ring MaterialMaximum Operating PressureApplicationMediaTube MaterialMinimum Operating TemperatureSpecifications MetMaximum Operating TemperatureConfigurationShapeConnection 2 TypeConnection 2 Tube Outside DiameterSeal MaterialFor Fluid TypeConnection 2 Thread Size
10GR
1 Limited Stock
3 In Stock
$0.38
EAFluid System Connectors DivisionStainless SteelTubeN/ATube5/8" (O.D.)
10GRP
Quote Required
238 In Stock
$1.26
EAFluid System Connectors DivisionPlasticTubeN/ATube5/8" (O.D.)Ultem
4GR
Quote Required
727 In Stock
$0.28
EAFluid System Connectors DivisionStainless SteelTubeN/ATube1/4" (O.D.)
4GRP
Quote Required
422 In Stock
$0.55
EAFluid System Connectors DivisionPlasticTubeN/ATube1/4" (O.D.)Ultem
5GR
Quote Required
Quote Required
TBD
Fluid System Connectors DivisionStainless SteelTubeN/ATube5/16" (O.D.)
5GRP
Quote Required
Quote Required
TBD
Fluid System Connectors DivisionPlasticTubeN/ATube5/16" (O.D.)Ultem
6GR
Quote Required
483 In Stock
$0.33
EAFluid System Connectors DivisionStainless SteelTubeN/ATube3/8" (O.D.)
6GRP
Quote Required
402 In Stock
$0.72
EAFluid System Connectors DivisionPlasticTubeN/ATube3/8" (O.D.)302 Stainless Steel
8GR
Quote Required
220 In Stock
$0.38
EAFluid System Connectors DivisionStainless SteelTubeN/ATube1/2" (O.D.)
8GRP
Quote Required
492 In Stock
$0.77
EAFluid System Connectors DivisionPlasticTubeN/ATube1/2" (O.D.)Ultem
N10EU10
Quote Required
Quote Required
TBD
Fluid System Connectors DivisionNylonNylonCompression5/8" (O.D.)302 Stainless SteelNitrile50 psiFiltration, Purification, DispensingWater, Air, Other Compatible FluidsThermoplastic, Glass, Soft Metal-40 °CFDA, NSF-5193 °CTube to TubeElbow 90°Compression5/8" (O.D.)
N10FC8
Quote Required
Quote Required
TBD
Fluid System Connectors DivisionNylonConnectorNylonCompression5/8" (O.D.)Stainless Steel AISI 30250 psiFiltrationSoft Metal-40 °FFDA93 °CTube to Female PipeNPTFNitrile (O-Ring)Air1/2"
N10FE8
Quote Required
Quote Required
TBD
Fluid System Connectors DivisionNylonNylonCompression5/8" (O.D.)Stainless Steel AISI 30250 psiPurificationThermoplastic-40 °CNSF 5193 °CTube to Female PipeElbow 90°NPTFNitrile (O-Ring)Other Compatible Fluids1/2"
N10MC12
Quote Required
Quote Required
TBD
Fluid System Connectors DivisionNylonConnectorNylonCompression5/8" (O.D.)Stainless Steel AISI 30250 psiPurificationGlass-40 °CNSF 51200 °FTube to PipeNPTFNitrile (O-Ring)Water3/4"
N10MC4
Quote Required
Quote Required
TBD
Fluid System Connectors DivisionNylonConnectorNylonCompression5/8" (O.D.)Stainless Steel AISI 30250 psiPurificationSoft Metal-40 °FNSF 5193 °CTube to PipeNPTFNitrile (O-Ring)Water1/4"
N10MC6
Quote Required
19 In Stock
$5.62
EAFluid System Connectors DivisionNylonConnectorNylonCompression5/8" (O.D.)Stainless Steel AISI 30250 psiDispensingSoft Metal-40 °CNSF 51200 °FTube to PipeNPTFNitrile (O-Ring)Air3/8"
N10MC8
Quote Required
6 In Stock
$4.07
EAFluid System Connectors DivisionNylonConnectorNylonCompression5/8" (O.D.)Stainless Steel AISI 3023.5 barDispensingThermoplastic-40 °FFDA200 °FTube to PipeNPTFNitrile (O-Ring)Other Compatible Fluids1/2"
N10ME8
Quote Required
Quote Required
TBD
Fluid System Connectors DivisionNylonNylonCompression5/8" (O.D.)Stainless Steel AISI 3023.5 barPurificationSoft Metal-40 °FFDA93 °CTube to PipeElbow 90°NPTFNitrile (O-Ring)Air1/2"
N10MR8
Quote Required
Quote Required
TBD
Fluid System Connectors DivisionNylonNylonCompression5/8" (O.D.)Stainless Steel AISI 30250PurificationThermoplastic-40FDA200Tube to PipeRun Tee - MaleNPTFNitrile (O-Ring)Water1/2"
N10MT8
Quote Required
Quote Required
TBD
Fluid System Connectors DivisionNylonNylonCompression5/8" (O.D.)Stainless Steel AISI 30250PurificationThermoplastic-40FDA200Tube to PipeBranch Tee - MaleNPTFNitrile (O-Ring)Water1/2"
