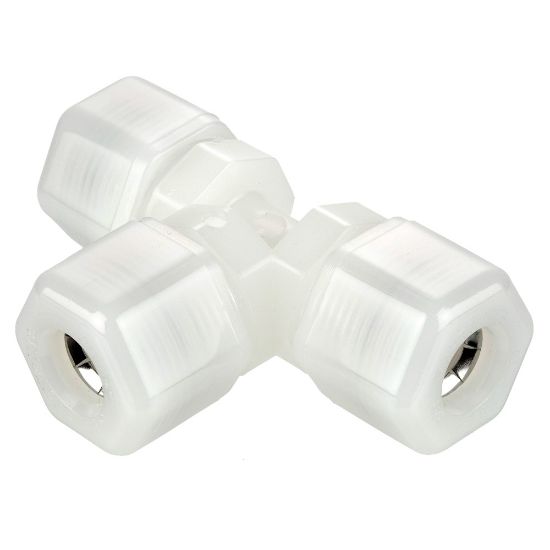

Parker N10TU10 - Compression Style Plastic Fittings, Fast-Tite

Parker's Fast & Tite fittings installs in seconds without tools for a leak proof seal. Fast & Tite meets FDA and NSF-51 requirements for food contact.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. N10TU10

$12.66/each

Products specifications

Attribute name	Attribute value
UOM	EA	Media	Water, Air, Other Compatible Fluids
Body Material	Nylon	Maximum Operating Temperature	200 °F
Division	Fluid System Connectors Division	O-Ring Material	Nitrile
Maximum Operating Pressure	3.5 bar	Gripping Ring Material	302 Stainless Steel
Minimum Operating Temperature	-40 °F	Application	Filtration, Purification, Dispensing
Tube Material	Thermoplastic, Glass, Soft Metal	Specifications Met	FDA, NSF-51
Connection 2 Type	Compression	Configuration	Tube to Tube
Connection 1 Type	Compression	Shape	Tee
Body Material	Nylon	Connection 2 Tube Outside Diameter	5/8" (O.D.)
Connection 1 Tube Outside Diameter	5/8" (O.D.)
