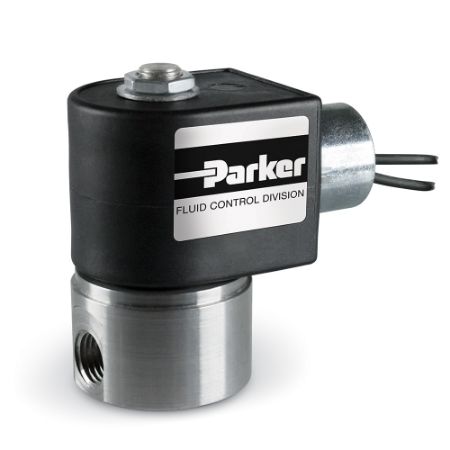

6 Family - Direct Acting High Pressure Valves

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

2-Way direct-acting high pressure valves are generally installed where high pressure requirements otherwise require the use of piston valves and/or valves with more robust seals such as PTFE and Ruby discs. These valves must be mounted upright; with solenoid coils vertical and upright.

View as Grid List

Sort by

Display per page

Part No.	Availability	Partner Available	Price	UOM	Port Type	Division	Body Material	Actuation Type	Media	Function	Input Voltage	Insulation Class	Specifications Met	Valve Configuration	Ingress Protection Rating	Port Size	Preventive Maintenance Kit	Orifice Size	Coil Type	Seal Material	Power Consumption	Maximum Fluid Temperature	Maximum Pressure Differential	Installation	Main Flow Coefficient	Maximum Ambient Temperature	Port Type	Body Material	Media	Function	Input Voltage	Insulation Class	Specifications Met	Valve Configuration	Ingress Protection Rating	Coil Type	Seal Material	Port Size	Installation	Orifice Size	Actuation Type	Power Consumption	Main Flow Coefficient	Maximum Fluid Temperature	Preventive Maintenance Kit	Maximum Ambient Temperature	Maximum Pressure Differential
71216SN1BL00	Quote Required	Quote Required	TBD		NPT	Fluid Control Division	Stainless Steel	Direct Acting	General Purpose	Normally Closed	Pressure Vessel Only	N/A	N/A	2 Way	N/A	1/8 inch	n/a	1/32 inch	Requires Coil from Chart 7 or Chart 8	NYLON	Pressure Vessel Only	185.0 °F	Requires Coil from Chart 7 or Chart 8	IOM 7206	0.021 Cv	150 (10 watt), 77 (22 watt) °F	NPT	Stainless Steel	General Purpose	Normally Closed	Pressure Vessel Only	N/A	N/A	2 Way	N/A	Requires Coil from Chart 7 or Chart 8	NYLON	1/8	IOM 7206	1/32	Direct Acting	Pressure Vessel Only	0.021	185.0	N/A	150 (10 watt), 77 (22 watt)	Requires Coil from Chart 7 or Chart 8
71216SN1BL00N0C111C1	Quote Required	Quote Required	TBD		NPT	Fluid Control Division	Stainless Steel	Direct Acting	General Purpose	Normally Closed	12.0 VDC	Class F	N/A	2 Way	NEMA 4,4X	1/8 inch	n/a	1/32 inch	C111C1	NYLON	10.0 W	185.0 °F	3000.0 psi	IOM 7206	0.021 Cv	150.0 °F	NPT	Stainless Steel	General Purpose	Normally Closed	12.0	Class F	N/A	2 Way	NEMA 4,4X	C111C1	NYLON	1/8	IOM 7206	1/32	Direct Acting	10.0	0.021	185.0	N/A	150.0	3000.0
71216SN1BL00N0C111C2	Quote Required	Quote Required	$248.03	EA	NPT	Fluid Control Division	Stainless Steel	Direct Acting	General Purpose	Normally Closed	24.0 VDC	Class F	N/A	2 Way	NEMA 4,4X	1/8 inch	n/a	1/32 inch	C111C2	NYLON	10.0 W	185.0 °F	3000.0 psi	IOM 7206	0.021 Cv	150.0 °F	NPT	Stainless Steel	General Purpose	Normally Closed	24.0	Class F	N/A	2 Way	NEMA 4,4X	C111C2	NYLON	1/8	IOM 7206	1/32	Direct Acting	10.0	0.021	185.0	N/A	150.0	3000.0
71216SN1BL00N0C111P3	Quote Required	Quote Required	$248.48	EA	NPT	Fluid Control Division	Stainless Steel	Direct Acting	General Purpose	Normally Closed	120/60, 110/50	Class F	N/A	2 Way	NEMA 4,4X	1/8 inch	n/a	1/32 inch	C111P3	NYLON	10.0 W	185.0 °F	3000.0 psi	IOM 7206	0.021 Cv	150.0 °F	NPT	Stainless Steel	General Purpose	Normally Closed	120/60, 110/50	Class F	N/A	2 Way	NEMA 4,4X	C111P3	NYLON	1/8	IOM 7206	1/32	Direct Acting	10.0	0.021	185.0	N/A	150.0	3000.0
71216SN1BL00N0C322C1	Quote Required	Quote Required	TBD		NPT	Fluid Control Division	Stainless Steel	Direct Acting	General Purpose	Normally Closed	12.0 VDC	Class H	N/A	2 Way	NEMA 4,4X	1/8 inch	n/a	1/32 inch	C322C1	NYLON	10.0 W	185.0 °F	3000.0 psi	IOM 7206	0.021 Cv	150.0 °F	NPT	Stainless Steel	General Purpose	Normally Closed	12.0	Class H	N/A	2 Way	NEMA 4,4X	C322C1	NYLON	1/8	IOM 7206	1/32	Direct Acting	10.0	0.021	185.0	N/A	150.0	3000.0
71216SN1BL00N0D300C2	Quote Required	Quote Required	TBD		NPT	Fluid Control Division	Stainless Steel	Direct Acting	General Purpose	Normally Closed	24.0 VDC	Class H	N/A	2 Way	NEMA 4,4X	1/8 inch	n/a	1/32 inch	D300C2	NYLON	22.0 W	185.0 °F	3000.0 psi	IOM 7206	0.021 Cv	77.0 °F	NPT	Stainless Steel	General Purpose	Normally Closed	24.0	Class H	N/A	2 Way	NEMA 4,4X	D300C2	NYLON	1/8	IOM 7206	1/32	Direct Acting	22.0	0.021	185.0	N/A	77.0	3000.0
71216SN1BL00N0H111C2	Quote Required	Quote Required	TBD		NPT	Fluid Control Division	Stainless Steel	Direct Acting	General Purpose	Normally Closed	24.0 VDC	Class F	N/A	2 Way	UL, CSA - Class 1, Div. 1, Group A,B,C,D Class 2, Div. 1, Group E,F,G - T3C	1/8 inch	n/a	1/32 inch	H111C2	NYLON	10.0 W	185.0 °F	3000.0 psi	IOM 7206	0.021 Cv	150.0 °F	NPT	Stainless Steel	General Purpose	Normally Closed	24.0	Class F	N/A	2 Way	UL, CSA - Class 1, Div. 1, Group A,B,C,D Class 2, Div. 1, Group E,F,G - T3C	H111C2	NYLON	1/8	IOM 7206	1/32	Direct Acting	10.0	0.021	185.0	N/A	150.0	3000.0
71216SN1BL00N0H222C2	Quote Required	Quote Required	TBD		NPT	Fluid Control Division	Stainless Steel	Direct Acting	General Purpose	Normally Closed	24.0 VDC	Class F	N/A	2 Way	UL, CSA - Class 1, Div. 1, Group A,B,C,D Class 2, Div. 1, Group E,F,G - T3C	1/8 inch	n/a	1/32 inch	H222C2	NYLON	10.0 W	185.0 °F	3000.0 psi	IOM 7206	0.021 Cv	150.0 °F	NPT	Stainless Steel	General Purpose	Normally Closed	24.0	Class F	N/A	2 Way	UL, CSA - Class 1, Div. 1, Group A,B,C,D Class 2, Div. 1, Group E,F,G - T3C	H222C2	NYLON	1/8	IOM 7206	1/32	Direct Acting	10.0	0.021	185.0	N/A	150.0	3000.0
71216SN1BL00N0L322C2	Quote Required	Quote Required	TBD		NPT	Fluid Control Division	Stainless Steel	Direct Acting	General Purpose	Normally Closed	24.0 VDC	Class H	N/A	2 Way	N/A	1/8 inch	n/a	1/32 inch	L322C2	NYLON	22.0 W	185.0 °F	3000.0 psi	IOM 7206	0.021 Cv	77.0 °F	NPT	Stainless Steel	General Purpose	Normally Closed	24.0	Class H	N/A	2 Way	N/A	L322C2	NYLON	1/8	IOM 7206	1/32	Direct Acting	22.0	0.021	185.0	N/A	77.0	3000.0
71216SN1FU00	Quote Required	Quote Required	TBD		NPT	Fluid Control Division	Stainless Steel	Direct Acting	General Purpose	Normally Closed	Pressure Vessel Only	N/A	N/A	2 Way	N/A	1/8 inch	n/a	3/64 inch	Requires Coil from Chart 7 or Chart 8	RULON	Pressure Vessel Only	185.0 °F	Requires Coil from Chart 7 or Chart 8	IOM 7206	0.037 Cv	150 (10 watt), 77 (22 watt) °F	NPT	Stainless Steel	General Purpose	Normally Closed	Pressure Vessel Only	N/A	N/A	2 Way	N/A	Requires Coil from Chart 7 or Chart 8	RULON	1/8	IOM 7206	3/64	Direct Acting	Pressure Vessel Only	0.037	185.0	N/A	150 (10 watt), 77 (22 watt)	Requires Coil from Chart 7 or Chart 8
71216SN1FU00N0C111C2	Quote Required	Quote Required	TBD		NPT	Fluid Control Division	Stainless Steel	Direct Acting	General Purpose	Normally Closed	24.0 VDC	Class F	UL, CSA Listed General Purpose Valve; CE - Low Voltage, EMC	2 Way	NEMA 4,4X	1/8 inch	n/a	3/64 inch	C111C2	RULON	10.0 W	185.0 °F	1500.0 psi	IOM 7206	0.037 Cv	150.0 °F	NPT	Stainless Steel	General Purpose	Normally Closed	24.0	Class F	UL, CSA Listed General Purpose Valve; CE - Low Voltage, EMC	2 Way	NEMA 4,4X	C111C2	RULON	1/8	IOM 7206	3/64	Direct Acting	10.0	0.037	185.0	N/A	150.0	1500.0
71216SN1FU00N0C111P3	Quote Required	Quote Required	TBD		NPT	Fluid Control Division	Stainless Steel	Direct Acting	General Purpose	Normally Closed	120/60, 110/50	Class F	UL, CSA Listed General Purpose Valve; CE - Low Voltage, EMC	2 Way	NEMA 4,4X	1/8 inch	n/a	3/64 inch	C111P3	RULON	10.0 W	185.0 °F	1500.0 psi	IOM 7206	0.037 Cv	150.0 °F	NPT	Stainless Steel	General Purpose	Normally Closed	120/60, 110/50	Class F	UL, CSA Listed General Purpose Valve; CE - Low Voltage, EMC	2 Way	NEMA 4,4X	C111P3	RULON	1/8	IOM 7206	3/64	Direct Acting	10.0	0.037	185.0	N/A	150.0	1500.0
71216SN1FU00N0H111C2	Quote Required	Quote Required	TBD		NPT	Fluid Control Division	Stainless Steel	Direct Acting	General Purpose	Normally Closed	24.0 VDC	Class F	UL, CSA Listed General Purpose Valve for Hazardous Locations; CE - Low Voltage, EMC	2 Way	UL, CSA - Class 1, Div. 1, Group A,B,C,D Class 2, Div. 1, Group E,F,G - T3C	1/8 inch	n/a	3/64 inch	H111C2	RULON	10.0 W	185.0 °F	1500.0 psi	IOM 7206	0.037 Cv	150.0 °F	NPT	Stainless Steel	General Purpose	Normally Closed	24.0	Class F	UL, CSA Listed General Purpose Valve for Hazardous Locations; CE - Low Voltage, EMC	2 Way	UL, CSA - Class 1, Div. 1, Group A,B,C,D Class 2, Div. 1, Group E,F,G - T3C	H111C2	RULON	1/8	IOM 7206	3/64	Direct Acting	10.0	0.037	185.0	N/A	150.0	1500.0
71216SN1GL00	Quote Required	Quote Required	TBD		NPT	Fluid Control Division	Stainless Steel	Direct Acting	General Purpose	Normally Closed	Pressure Vessel Only	N/A	N/A	2 Way	N/A	1/8 inch	n/a	1/16 inch	Requires Coil from Chart 7 or Chart 8	NYLON	Pressure Vessel Only	185.0 °F	Requires Coil from Chart 7 or Chart 8	IOM 7206	0.070 Cv	150 (10 watt), 77 (22 watt) °F	NPT	Stainless Steel	General Purpose	Normally Closed	Pressure Vessel Only	N/A	N/A	2 Way	N/A	Requires Coil from Chart 7 or Chart 8	NYLON	1/8	IOM 7206	1/16	Direct Acting	Pressure Vessel Only	0.070	185.0	N/A	150 (10 watt), 77 (22 watt)	Requires Coil from Chart 7 or Chart 8
71216SN1GL00N0C111P3	Quote Required	Quote Required	TBD		NPT	Fluid Control Division	Stainless Steel	Direct Acting	General Purpose	Normally Closed	120/60, 110/50	Class F	UL, CSA Listed General Purpose Valve; CE - Low Voltage, EMC	2 Way	NEMA 4,4X	1/8 inch	n/a	1/16 inch	C111P3	NYLON	10.0 W	185.0 °F	1250.0 psi	IOM 7206	0.070 Cv	150.0 °F	NPT	Stainless Steel	General Purpose	Normally Closed	120/60, 110/50	Class F	UL, CSA Listed General Purpose Valve; CE - Low Voltage, EMC	2 Way	NEMA 4,4X	C111P3	NYLON	1/8	IOM 7206	1/16	Direct Acting	10.0	0.070	185.0	N/A	150.0	1250.0
71216SN1GL00N0C322C2	Quote Required	Quote Required	TBD		NPT	Fluid Control Division	Stainless Steel	Direct Acting	General Purpose	Normally Closed	24.0 VDC	Class H	UL, CSA Listed General Purpose Valve; CE - Low Voltage, EMC	2 Way	NEMA 4,4X	1/8 inch	n/a	1/16 inch	C322C2	NYLON	22.0 W	185.0 °F	1000.0 psi	IOM 7206	0.070 Cv	77.0 °F	NPT	Stainless Steel	General Purpose	Normally Closed	24.0	Class H	UL, CSA Listed General Purpose Valve; CE - Low Voltage, EMC	2 Way	NEMA 4,4X	C322C2	NYLON	1/8	IOM 7206	1/16	Direct Acting	22.0	0.070	185.0	N/A	77.0	1000.0
71216SN1GL00N0D100C2	Quote Required	Quote Required	$237.25	EA	NPT	Fluid Control Division	Stainless Steel	Direct Acting	General Purpose	Normally Closed	24.0 VDC	Class F	UL, CSA Listed General Purpose Valve; CE - Low Voltage, EMC	2 Way	NEMA 4,4X	1/8 inch	n/a	1/16 inch	D100C2	NYLON	10.0 W	185.0 °F	1250.0 psi	IOM 7206	0.070 Cv	150.0 °F	NPT	Stainless Steel	General Purpose	Normally Closed	24.0	Class F	UL, CSA Listed General Purpose Valve; CE - Low Voltage, EMC	2 Way	NEMA 4,4X	D100C2	NYLON	1/8	IOM 7206	1/16	Direct Acting	10.0	0.070	185.0	N/A	150.0	1250.0
71216SN1JT00	Quote Required	Quote Required	TBD		NPT	Fluid Control Division	Stainless Steel	Direct Acting	General Purpose	Normally Closed	Pressure Vessel Only	N/A	N/A	2 Way	N/A	1/8 inch	n/a	5/64 inch	Requires Coil from Chart 7 or Chart 8	PTFE	Pressure Vessel Only	185.0 °F	Requires Coil from Chart 7 or Chart 8	IOM 7206	0.090 Cv	150 (10 watt), 77 (22 watt) °F	NPT	Stainless Steel	General Purpose	Normally Closed	Pressure Vessel Only	N/A	N/A	2 Way	N/A	Requires Coil from Chart 7 or Chart 8	PTFE	1/8	IOM 7206	5/64	Direct Acting	Pressure Vessel Only	0.090	185.0	N/A	150 (10 watt), 77 (22 watt)	Requires Coil from Chart 7 or Chart 8
71216SN2BL00N0C111C1	Quote Required	Quote Required	TBD		NPT	Fluid Control Division	Stainless Steel	Direct Acting	General Purpose	Normally Closed	12.0 VDC	Class F	N/A	2 Way	NEMA 4,4X	1/4 inch	n/a	1/32 inch	C111C1	NYLON	10.0 W	185.0 °F	3000.0 psi	IOM 7206	0.021 Cv	150.0 °F	NPT	Stainless Steel	General Purpose	Normally Closed	12.0	Class F	N/A	2 Way	NEMA 4,4X	C111C1	NYLON	1/4	IOM 7206	1/32	Direct Acting	10.0	0.021	185.0	N/A	150.0	3000.0
71216SN2BL00N0C111C2	Quote Required	Quote Required	TBD		NPT	Fluid Control Division	Stainless Steel	Direct Acting	General Purpose	Normally Closed	24.0 VDC	Class F	N/A	2 Way	NEMA 4,4X	1/4 inch	n/a	1/32 inch	C111C2	NYLON	10.0 W	185.0 °F	3000.0 psi	IOM 7206	0.021 Cv	150.0 °F	NPT	Stainless Steel	General Purpose	Normally Closed	24.0	Class F	N/A	2 Way	NEMA 4,4X	C111C2	NYLON	1/4	IOM 7206	1/32	Direct Acting	10.0	0.021	185.0	N/A	150.0	3000.0
