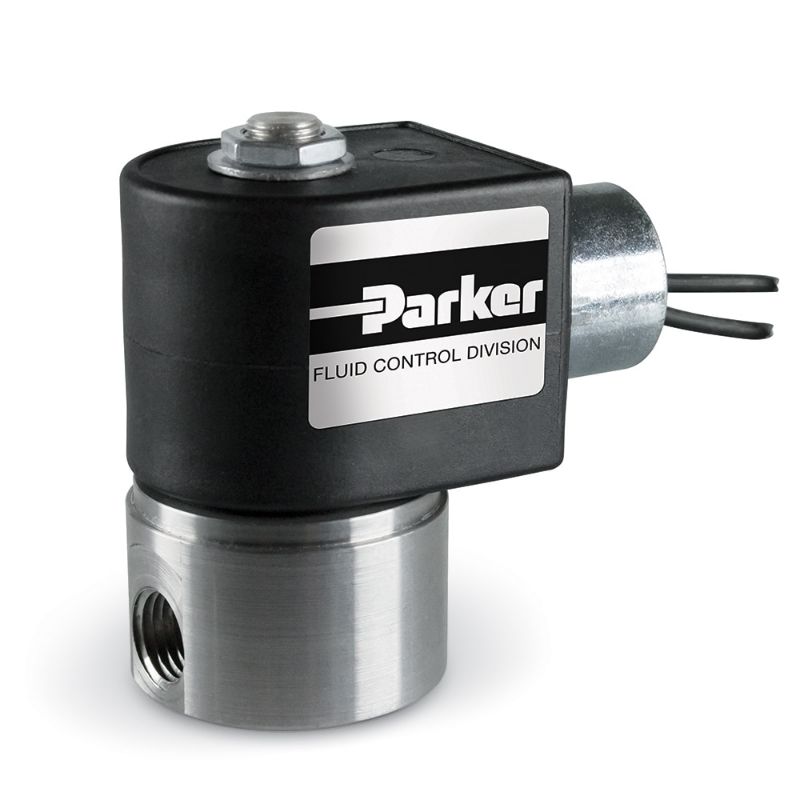

Parker 71216SN1BL00N0C111P3 - 6 Family - Direct Acting High Pressure Valves

These unique needle-in-seat high pressure valves direct-acting valves deliver long life at high pressures thanks to robust fundamentals and technopolymer sealing surfaces. These valves must be mounted upright; with solenoid coils vertical and upright

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 71216SN1BL00N0C111P3

$248.48

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Port Type	NPT
Division	Fluid Control Division	Body Material	Stainless Steel
Actuation Type	Direct Acting	Media	General Purpose
Function	Normally Closed	Minimum Pressure Differential	0.0 psi
Insulation Class	Class F	Specifications Met	N/A
Valve Configuration	2 Way	Ingress Protection Rating	NEMA 4,4X
Port Size	1/8 inch	Preventive Maintenance Kit	n/a
Orifice Size	1/32 inch	Coil Type	C111P3
Input Voltage	120/60, 110/50	Seal Material	NYLON
Power Consumption	10.0 W	Maximum Fluid Temperature	185.0 °F
Maximum Pressure Differential	3000.0 psi	Installation	IOM 7206
Main Flow Coefficient	0.021 Cv	Maximum Ambient Temperature	150.0 °F
Port Type	NPT	Body Material	Stainless Steel
Media	General Purpose	Function	Normally Closed
Input Voltage	120/60, 110/50	Insulation Class	Class F
Specifications Met	N/A	Valve Configuration	2 Way
Ingress Protection Rating	NEMA 4,4X	Minimum Pressure Differential	0.0
Coil Type	C111P3	Seal Material	NYLON
Port Size	1/8	Installation	IOM 7206
Orifice Size	1/32	Actuation Type	Direct Acting
Power Consumption	10.0	Main Flow Coefficient	0.021
Maximum Fluid Temperature	185.0	Preventive Maintenance Kit	N/A
Maximum Ambient Temperature	150.0	Maximum Pressure Differential	3000.0
