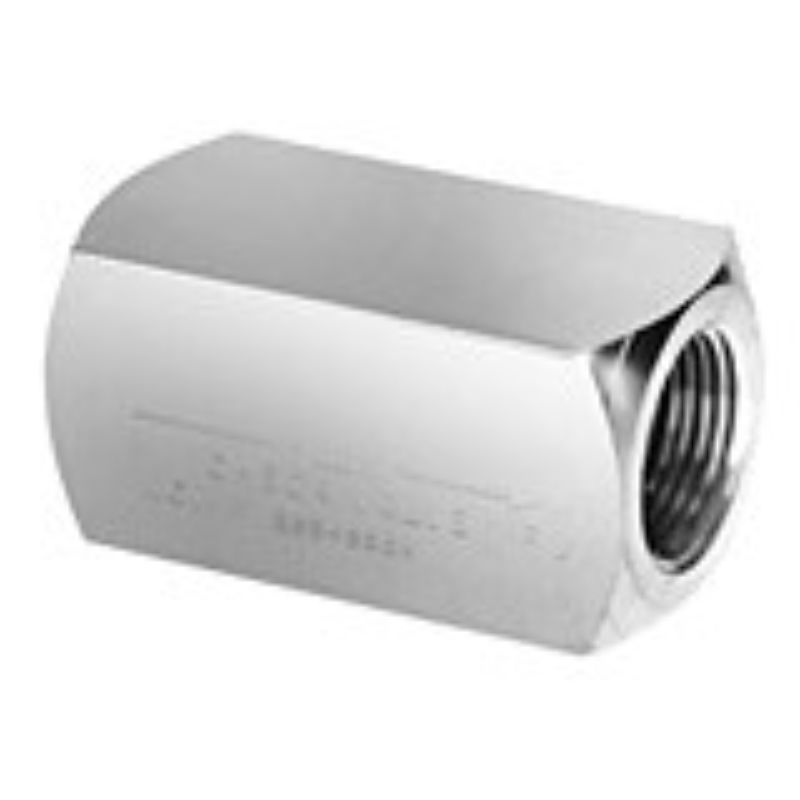

Parker 00339G3001 - Check Valve - 339 Series (female to female)

339 series Check valves allow free flow in one direction and provide positive checked flow in the reverse direction. These valves are available with NPTF ports and are recommended for pneumatic service. Available in female to female connection only.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 00339G3001

$62.31/each

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Pneumatic Division
Lubricant	None	Mounting Type	Inline
Flow Coefficient	0.66 to 6.0 Cv (free flow)	Body Material	Brass
Port Size	1/8	Options	Extended Temperature Version
Media	Air	Operating Pressure	0 to 250
Port Type	NPT	Needle Material	Brass
Flow Rate	35 to 323 SCFM (free flow)	Product Type	One Way Check Valve
Operating Temperature	-18 to 82	Seal Material	Urethane
Port Type	BSPP	Port Size (inch)	1/4
