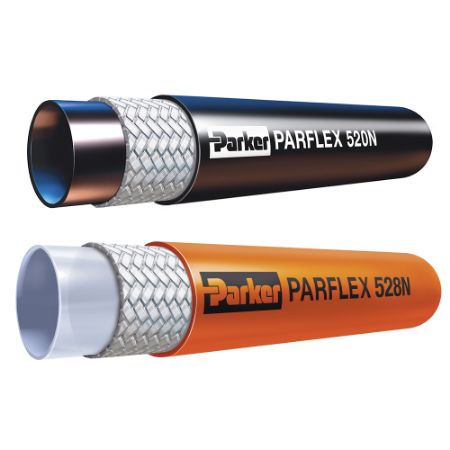

100R8 Hydraulic Hose – 520N/528N
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's 520N/528N Thermoplastic Hydraulic Hose features optimum hose performance in a 100R8 hose but with a lighter weight and smaller O.D. than an 100R2 hose. It replaces 100R2 rubber hose wherever greater flexibility, fluid compatibility, and cover durability are required. This flexible hydraulic hose is available in single, twin-line and multi-line constructions and features a smaller bend radius than 3TR8/3800 hose. Offering superior features, such as a reduced weight and improved flexing capabilities, the Parflex 520N/528N High Pressure Hose combines a variety of advantages to fulfill application requirements in hydraulic equipment, pneumatic circuits and fluid handling applications.
Markets:
• Machine Tool
• Industrial
• Industrial Pneumatic
• Construction
• Mobile Equipment
Features/Benefits:
• Lighter and smaller O.D. than 100R2 for ease of assembly
• Available as a bonded hose assembly.
• Fast response
• Working pressure up to 5,000 psi
Applications:
• Hydraulic and pneumatic circuits and systems
• Ideal in hot water applications
•Nitrogen Gas
• Material Handling Equipment
• Machine tool
• Construction Equipment
Certifications/Compliance:
• Meets/exceeds SAE 100R8
• 520N MSHA accepted
• 528N meets SAE J517 for less than 50 micro-amps leakage under 75,000 volts per foot
Technical Specifications:
• Twin and multi-line designs available
• Hose I.D. is nominal
• Hose O.D. is maximum
Read More...Markets:
• Machine Tool
• Industrial
• Industrial Pneumatic
• Construction
• Mobile Equipment
Features/Benefits:
• Lighter and smaller O.D. than 100R2 for ease of assembly
• Available as a bonded hose assembly.
• Fast response
• Working pressure up to 5,000 psi
Applications:
• Hydraulic and pneumatic circuits and systems
• Ideal in hot water applications
•Nitrogen Gas
• Material Handling Equipment
• Machine tool
• Construction Equipment
Certifications/Compliance:
• Meets/exceeds SAE 100R8
• 520N MSHA accepted
• 528N meets SAE J517 for less than 50 micro-amps leakage under 75,000 volts per foot
Technical Specifications:
• Twin and multi-line designs available
• Hose I.D. is nominal
• Hose O.D. is maximum
| Action | Part No. | Availability | Partner Available | Price | UOM | Maximum Operating Temperature | Minimum Operating Temperature | Application | Outside Diameter | Minimum Bend Radius | Cover Material | Division | Inside Diameter | Hose Reinforcement Material | Product Style | Design Factor | Specifications Met | Size | Weight | Hose Inner Tube Material | Media | Compatible Fitting | Maximum Operating Pressure | Hose I.D. (inch) | Hose Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 520N-10 | Quote Required | TBD | 212 | -40 | Fluid Handling | n/a | 6 | Polyurethane | Parflex Division | 5/8 | Aramid Fiber | Standard | 4:1 | N/A | -10 | n/a | Polyamide (PA) | Air | 55 Series | n/a | 5/8 | Standard | |||
| 520N-3 | 169 In Stock | 2992 In Stock | $6.43 | FT | 100 °C | -40 °C | Industrial | 10.9 mm | 38 mm | Polyurethane | Parflex Division | 5 mm | Aramid Fiber | Standard | 4:1 | MSHA | -3 | 0.05 lb/ft | Polyamide (PA) | Welding Gases (Nitrogen) | 56 Series | 5000 psi | 3/16 | Standard | |
| 520N-4 | 1468 In Stock | 9856 In Stock | $7.20 | FT | 212 °F | -40 °C | Hydraulics | 0.510 inch | 2 inch | Polyurethane | Parflex Division | 6 mm | Aramid Fiber | Standard | 4:1 | DNV GL | -4 | 0.07 lb/ft | Polyamide (PA) | Water | 56 Series | 34.5 MPa | 1/4 | Standard | |
| 520N-5 | 723 In Stock | 655 In Stock | $9.63 | FT | 100 °C | -40 °F | Fluid Handling | 14.5 mm | 2.5 inch | Polyurethane | Parflex Division | 5/16 inch | Aramid Fiber | Standard | 4:1 | DNV GL | -5 | 0.08 lb/ft | Polyamide (PA) | Welding Gases (Nitrogen) | 56 Series | 310 bar | 5/16 | Standard | |
| 520N-6 | 442 In Stock | 7986 In Stock | $8.57 | FT | 212 °F | -40 °C | Manufacturing | 16.5 mm | 64 mm | Polyurethane | Parflex Division | 3/8 inch | Aramid Fiber | Standard | 4:1 | MSHA | -6 | 0.08 lb/ft | Polyamide (PA) | Air | 56 Series | 4000 psi | 3/8 | Standard | |
| 520N-8 | 504 In Stock | 6615 In Stock | $10.98 | FT | 100 °C | -40 °F | Pneumatics | 0.810 inch | 102 mm | Polyurethane | Parflex Division | 13 mm | Aramid Fiber | Standard | 4:1 | DNV GL | -8 | 0.14 lb/ft | Polyamide (PA) | Petroleum Hydraulic Fluids | 56 Series | 24.1 MPa | 1/2 | Standard | |
| 528N-3 | Quote Required | TBD | FT | 212 °F | -40 °C | Manufacturing | 0.430 inch | 38 mm | Polyurethane | Parflex Division | 3/16 inch | Aramid Fiber | Non-Conductive | 4:1 | SAE J517 (for less than 50 micro-amps leakage under 75000 volts per ft.) | -3 | 0.05 lb/ft | Polyamide (PA) | Water | 56 Series | 5000 psi | 3/16 | Non Conductive | ||
| 528N-4 | 8 In Stock | 1464 In Stock | $8.93 | FT | 212 °F | -40 °C | Forestry | 0.510 inch | 2 inch | Polyurethane | Parflex Division | 1/4 inch | Aramid Fiber | Non-Conductive | 4:1 | SAE 100R8 | -4 | 0.07 lb/ft | Polyamide (PA) | Air | 56 Series | 34.5 MPa | 1/4 | Non Conductive | |
| 528N-5 | Quote Required | TBD | 100 °C | -40 °C | Agriculture Equipment | 14.5 mm | 64 mm | Polyurethane | Parflex Division | 8 mm | Aramid Fiber | Non-Conductive | 4:1 | DNV GL | -5 | 0.08 lb/ft | Polyamide (PA) | Lubricants | 56 Series | 31 MPa | 5/16 | Non Conductive | |||
| 528N-6 | 250 In Stock | 1804 In Stock | $12.38 | FT | 100 °C | -40 °C | Hydraulics | 16.5 mm | 2-1/2 inch | Polyurethane | Parflex Division | 10 mm | Aramid Fiber | Non-Conductive | 4:1 | DNV GL | -6 | 0.08 lb/ft | Polyamide (PA) | Petroleum Hydraulic Fluids | 56 Series | 4000 psi | 3/8 | Non Conductive | |
| 528N-8 | 32 In Stock | 2623 In Stock | $16.70 | FT | 212 °F | -40 °F | Pneumatics | 0.810 inch | 102 mm | Polyurethane | Parflex Division | 1/2 inch | Aramid Fiber | Non-Conductive | 4:1 | SAE J517 (for less than 50 micro-amps leakage under 75000 volts per ft.) | -8 | 0.20 kg/m | Polyamide (PA) | Water | 56 Series | 3500 psi | 1/2 | Non Conductive |
