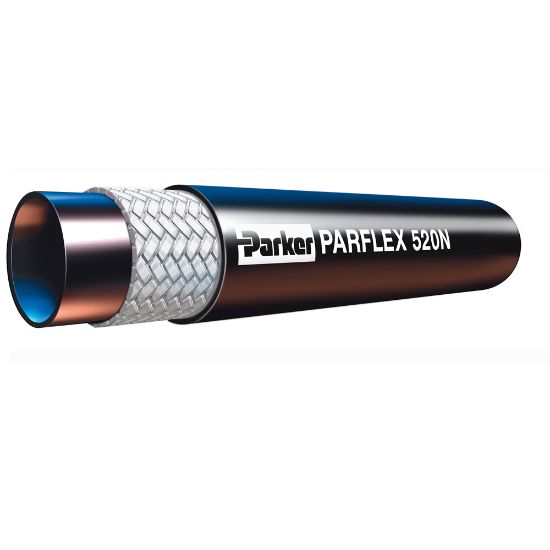

Parker 520N-3 - 100R8 Hydraulic Hose – 520N/528N

Name: Parker 520N-3 - 100R8 Hydraulic Hose – 520N/528N
SKU: 520N-3
Price: 6.43 USD
Availability: InStock

Parker's 520N/528N Thermoplastic Hydraulic Hose features optimum hose performance in an SAE 100R8 hose. Available as a bonded hose assembly.

Availability:

169 In Stock

Jacksonville, FL	109
Norfolk, VA	35
Summerville, SC	25

Partner Available:

2992 In Stock

Brand Parker

Part No. 520N-3

$6.43

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	FT	Specifications Met	MSHA
Maximum Operating Pressure	5000 psi	Maximum Operating Temperature	100 °C
Division	Parflex Division	Product Style	Standard
Application	Industrial	Size	-3
Hose Inner Tube Material	Polyamide (PA)	Hose Reinforcement Material	Aramid Fiber
Design Factor	4:1	Weight	0.05 lb/ft
Minimum Operating Temperature	-40 °C	Media	Welding Gases (Nitrogen)
Inside Diameter	5 mm	Outside Diameter	10.9 mm
Compatible Fitting	56 Series	Minimum Bend Radius	38 mm
Cover Material	Polyurethane	Hose Type	Standard
Hose I.D. (inch)	3/16
