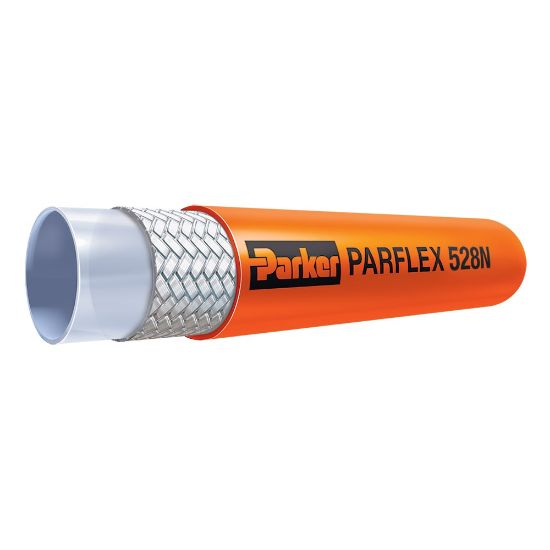

Parker 528N-6 - 100R8 Hydraulic Hose – 520N/528N

Name: Parker 528N-6 - 100R8 Hydraulic Hose – 520N/528N
SKU: 528N-6
Price: 10.02 USD
Availability: InStock

Parker's 520N/528N Thermoplastic Hydraulic Hose features optimum hose performance in an SAE 100R8 hose. Available as a bonded hose assembly.

AFP Availability:

397 In Stock

Jacksonville, FL	275
Richmond, VA	68 (Pickup only)
Mooresville, NC	54

Partner Available:

1890 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 528N-6

$10.02/foot

Qty:

Products specifications

Attribute name	Attribute value
UOM	FT	Outside Diameter	16.5 mm
Inside Diameter	10 mm	Division	Parflex Division
Maximum Operating Temperature	100 °C	Hose Inner Tube Material	Polyamide (PA)
Media	Petroleum Hydraulic Fluids	Size	-6
Compatible Fitting	56 Series	Product Style	Non-Conductive
Design Factor	4:1	Cover Material	Polyurethane
Application	Hydraulics	Minimum Operating Temperature	-40 °C
Specifications Met	DNV GL	Minimum Bend Radius	2-1/2 inch
Hose Reinforcement Material	Aramid Fiber	Weight	0.08 lb/ft
Maximum Operating Pressure	4000 psi	Hose I.D. (inch)	3/8
Hose Type	Non Conductive
