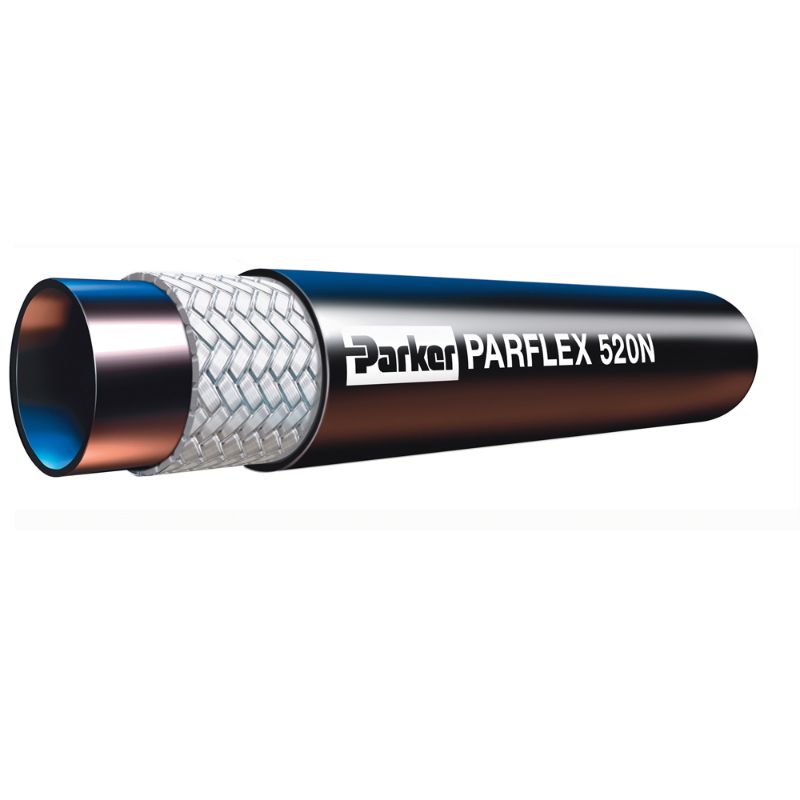

Parker 520N-8 - 100R8 Hydraulic Hose – 520N/528N

Name: Parker 520N-8 - 100R8 Hydraulic Hose – 520N/528N
SKU: 520N-8
Price: 10.98 USD
Availability: InStock

Parker's 520N/528N Thermoplastic Hydraulic Hose features optimum hose performance in an SAE 100R8 hose. Available as a bonded hose assembly.

Availability:

504 In Stock

Mooresville, NC	282
Richmond, VA	200
Norfolk, VA	22

Partner Available:

6615 In Stock

Brand Parker

Part No. 520N-8

$10.98

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	FT	Cover Material	Polyurethane
Application	Pneumatics	Media	Petroleum Hydraulic Fluids
Division	Parflex Division	Maximum Operating Temperature	100 °C
Minimum Operating Temperature	-40 °F	Weight	0.14 lb/ft
Design Factor	4:1	Product Style	Standard
Hose Reinforcement Material	Aramid Fiber	Hose Inner Tube Material	Polyamide (PA)
Compatible Fitting	56 Series	Minimum Bend Radius	102 mm
Size	-8	Outside Diameter	0.810 inch
Specifications Met	DNV GL	Maximum Operating Pressure	24.1 MPa
Inside Diameter	13 mm	Hose Type	Standard
Hose I.D. (inch)	1/2
