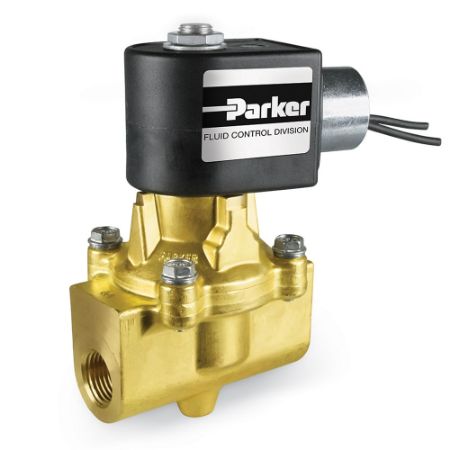

UL 429A Listed Actuating Valves
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker Fluid Control Division offers decades of experience in critical fire-supression applications and is a preferred partner of major fire suppression OEMs and integrators. FCD's robust pre-action deluge pilot valves are 100% factory tested and 3rd party-certified by UL to standard UL 429A (certificate no. 20190411 – EX2170)
Read More...| Action | Part No. | Availability | Partner Available | Price | UOM | Port Type | Body Material | Port Size | Division | Function | Valve Type | Seal Material | Actuation Type | Ingress Protection Rating | Orifice Size | Maximum Pressure Differential | Configuration | Input Voltage | Maximum Fluid Temperature | Specifications Met | Coil Type | Power Consumption | Minimum Pressure Differential | Installation | Main Flow Coefficient | Preventive Maintenance Kit | Maximum Ambient Temperature | Port Type | Body Material | Seal Material | Function | Actuation Type | Ingress Protection Rating | Maximum Ambient Temperature | Maximum Pressure Differential | Minimum Pressure Differential | Valve Type | Port Size | Orifice Size | Power Consumption | Maximum Fluid Temperature | Coil Type | Installation | Input Voltage | Specifications Met | Main Flow Coefficient | Preventive Maintenance Kit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 73212BN4TNLVN0C322C2 | Quote Required | TBD | NPT | Brass | 1/2 inch | Fluid Control Division | Normally Closed (NC) | 2-Way | NBR | Internal Pilot | NEMA 4 | 1/2 inch | 300 | All Ports in Body | 24 VDC | 185 °F | CSA listed Safety Shutoff Valve C22.2 No. 139-13 | 1/2" NPT Conduit w/ 18" Leads | 22.0 | 5.0 | IOM 7212 | 2.80 | 7K209 | 77 °F | NPT | BRASS | NBR | Normally Closed | Internally Piloted | NEMA 4,4X | 77.0 | 300.0 | 5.0 | 2 Way | 1/2 | 1/2 | 22.0 | 185.0 | 1/2" NPT Conduit w/ 18" Leads | IOM 7212 | 24 VDC | CSA Listed Safety Shutoff Valve C22.2 no. 139-13 | 2.80 | 7K209 | |||
| 73218BN4UNLVN0C1113N | Quote Required | $386.29 | EA | NPT | Brass | 1/2 inch | Fluid Control Division | Normally Closed (NC) | 2-Way | NBR | Internal Pilot | NEMA 4X | 5/8 | 175.0 | All Ports in Body | 125 VDC | 185 °F | CSA listed Safety Shutoff Valve C22.2 No. 139-13 | 1/2" NPT Conduit w/ 18" Leads | 10.0 | 5.0 | IOM 7212 | 4.00 | 7K815 | 150 °F | NPT | BRASS | NBR | Normally Closed | Internally Piloted | NEMA 4,4X | 150.0 | 175.0 | 5.0 | 2 Way | 1/2 | 5/8 | 10.0 | 185.0 | 1/2" NPT Conduit w/ 18" Leads | IOM 7212 | 125 VDC | CSA Listed Safety Shutoff Valve C22.2 no. 139-13 | 4.00 | 7K815 | ||
| 73218BN4UNLVN0C111C2 | Quote Required | 1 Limited Stock | $311.86 | EA | NPT | Brass | 1/2 inch | Fluid Control Division | Normally Closed (NC) | 2-Way | NBR | Internal Pilot | NEMA 4 | 5/8 | 175.0 | All Ports in Body | 24 VDC | 185 °F | CE - Low Voltage | 1/2" NPT Conduit w/ 18" Leads | 10.0 | 5.0 | IOM 7212 | 4.00 | 7K815 | 150 °F | NPT | BRASS | NBR | Normally Closed | Internally Piloted | NEMA 4,4X | 150.0 | 175.0 | 5.0 | 2 Way | 1/2 | 5/8 | 10.0 | 185.0 | 1/2" NPT Conduit w/ 18" Leads | IOM 7212 | 24 VDC | CSA Listed Safety Shutoff Valve C22.2 no. 139-13 | 4.00 | 7K815 | |
| 73218BN4UNLVN0C111C4 | Quote Required | TBD | NPT | Brass | 1/2 inch | Fluid Control Division | Normally Closed (NC) | 2-Way | NBR | Internal Pilot | NEMA 4 | 5/8 | 175.0 | All Ports in Body | 48.0 VDC | 185 °F | CE - Low Voltage | 1/2" NPT Conduit w/ 18" Leads | 10.0 | 5.0 | IOM 7212 | 4.00 | 7K815 | 150 °F | NPT | BRASS | NBR | Normally Closed | Internally Piloted | NEMA 4,4X | 150.0 | 175.0 | 5.0 | 2 Way | 1/2 | 5/8 | 10.0 | 185.0 | 1/2" NPT Conduit w/ 18" Leads | IOM 7212 | 48 VDC | CSA Listed Safety Shutoff Valve C22.2 no. 139-13 | 4.00 | 7K815 | |||
| 73218BN4UNLVN0C111C6 | Quote Required | TBD | NPT | Brass | 1/2 inch | Fluid Control Division | Normally Closed (NC) | 2-Way | NBR | Internal Pilot | NEMA 4 | 5/8 | 175.0 | All Ports in Body | 120 VDC | 185 °F | UL listed Actuating Valve UL 429A | 1/2" NPT Conduit w/ 18" Leads | 10.0 | 5.0 | IOM 7212 | 4.00 | 7K815 | 150 °F | NPT | BRASS | NBR | Normally Closed | Internally Piloted | NEMA 4,4X | 150.0 | 175.0 | 5.0 | 2 Way | 1/2 | 5/8 | 10.0 | 185.0 | 1/2" NPT Conduit w/ 18" Leads | IOM 7212 | 120 VDC | CSA Listed Safety Shutoff Valve C22.2 no. 139-13 | 4.00 | 7K815 | |||
| 73218BN4UNLVN0C111P3 | Quote Required | $308.35 | EA | NPT | Brass | 1/2 inch | Fluid Control Division | Normally Closed (NC) | 2-Way | NBR | Internal Pilot | NEMA 4 | 5/8 | 175.0 | All Ports in Body | 120/60 VAC | 185 °F | UL listed Safety Shutoff Valve UL 429 | 1/2" NPT Conduit w/ 18" Leads | 10.0 | 5.0 | IOM 7212 | 4.00 | 7K815 | 150 °F | NPT | BRASS | NBR | Normally Closed | Internally Piloted | NEMA 4,4X | 150.0 | 175.0 | 5.0 | 2 Way | 1/2 | 5/8 | 10.0 | 185.0 | 1/2" NPT Conduit w/ 18" Leads | IOM 7212 | 120/60, 110/50 | CSA Listed Safety Shutoff Valve C22.2 no. 139-13 | 4.00 | 7K815 | ||
| 73218BN4UNLVN0C111Q3 | Quote Required | TBD | NPT | Brass | 1/2 inch | Fluid Control Division | Normally Closed (NC) | 2-Way | NBR | Internal Pilot | NEMA 4 | 5/8 | 175.0 | All Ports in Body | 240/60 | 185 °F | UL listed Safety Shutoff Valve UL 429 | 1/2" NPT Conduit w/ 18" Leads | 10.0 | 5.0 | IOM 7212 | 4.00 | 7K815 | 150 °F | NPT | BRASS | NBR | Normally Closed | Internally Piloted | NEMA 4,4X | 150.0 | 175.0 | 5.0 | 2 Way | 1/2 | 5/8 | 10.0 | 185.0 | 1/2" NPT Conduit w/ 18" Leads | IOM 7212 | 240/60, 220/50 | CSA Listed Safety Shutoff Valve C22.2 no. 139-13 | 4.00 | 7K815 | |||
| 7321GBN99NLVN0C322C2 | Quote Required | TBD | NPT | Brass | 2 inch | Fluid Control Division | Normally Closed (NC) | 2-Way | NBR | Internal Pilot | NEMA 4X | 1-9/16 inch | 175.0 psi | All Ports in Body | 24 VDC | 185 °F | UL listed Actuating Valve UL 429A | 1/2" NPT Conduit w/ 18" Leads | 22 W | 5.0 psi | IOM 7203 | 38.6 Cv | 7KG10 | 77 °F | NPT | BRASS | NBR | Normally Closed | Internally Piloted | NEMA 4,4X | 77.0 | 175.0 | 5.0 | 2 Way | 2 | 1-9/16 | 22.0 | 185.0 | 1/2" NPT Conduit w/ 18" Leads | IOM 7203 | 24 VDC | CSA Listed Safety Shutoff Valve C22.2 no. 139-13 | 38.6 | 7KG10 |
