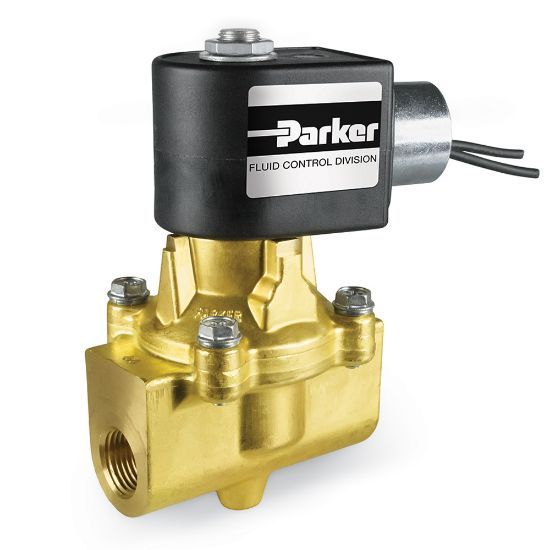

Parker 73218BN4UNLVN0C1113N - UL 429A Listed Actuating Valves

UL 429A certified solenoid valves are required for use as pre-action pilot valves in various fire suppression deluge systems.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 73218BN4UNLVN0C1113N

$386.29

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Port Type	NPT
Body Material	Brass	Port Size	1/2 inch
Division	Fluid Control Division	Function	Normally Closed (NC)
Valve Type	2-Way	Seal Material	NBR
Actuation Type	Internal Pilot	Ingress Protection Rating	NEMA 4X
Maximum Pressure Differential	175.0	Configuration	All Ports in Body
Maximum Fluid Temperature	185 °F	Maximum Ambient Temperature	150 °F
Orifice Size	5/8	Specifications Met	CSA listed Safety Shutoff Valve C22.2 No. 139-13
Coil Type	1/2" NPT Conduit w/ 18" Leads	Input Voltage	125 VDC
Power Consumption	10.0	Minimum Pressure Differential	5.0
Installation	IOM 7212	Main Flow Coefficient	4.00
Preventive Maintenance Kit	7K815	Port Type	NPT
Body Material	BRASS	Seal Material	NBR
Function	Normally Closed	Orifice Size	5/8
Actuation Type	Internally Piloted	Ingress Protection Rating	NEMA 4,4X
Minimum Pressure Differential	5.0	Maximum Pressure Differential	175.0
Valve Type	2 Way	Port Size	1/2
Power Consumption	10.0	Maximum Fluid Temperature	185.0
Maximum Ambient Temperature	150.0	Coil Type	1/2" NPT Conduit w/ 18" Leads
Installation	IOM 7212	Input Voltage	125 VDC
Specifications Met	CSA Listed Safety Shutoff Valve C22.2 no. 139-13	Main Flow Coefficient	4.00
Preventive Maintenance Kit	7K815

Product resources

Literature and Reference Materials

Tube Seal (PDF)
