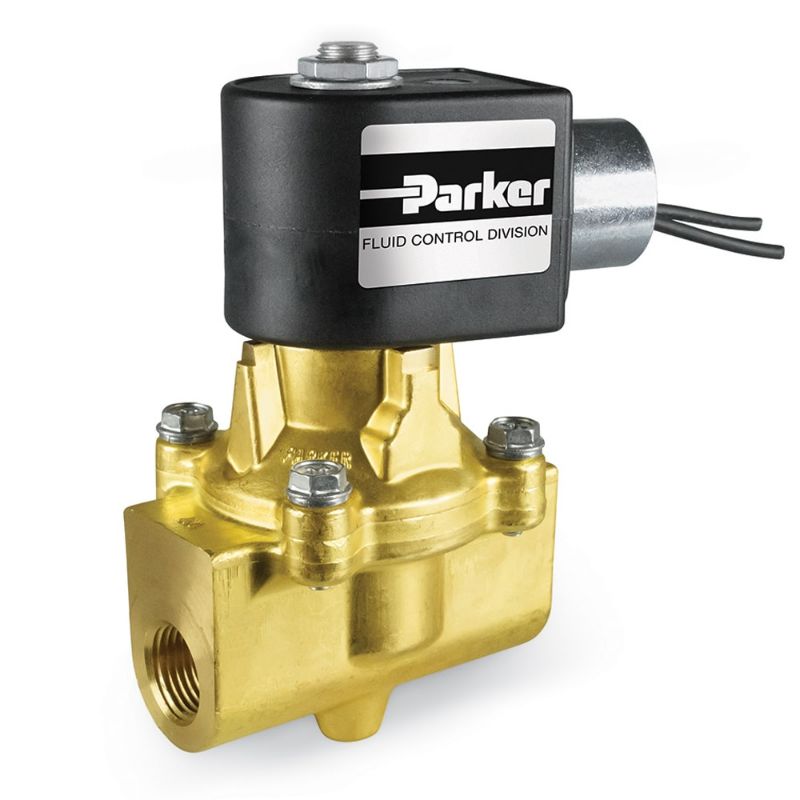

Parker 73218BN4UNLVN0C111C2 - UL 429A Listed Actuating Valves

UL 429A certified solenoid valves are required for use as pre-action pilot valves in various fire suppression deluge systems.

Availability:	Quote Required
Partner Available:	1 Limited Stock

Brand Parker

Part No. 73218BN4UNLVN0C111C2

$311.86

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Port Type	NPT
Body Material	Brass	Port Size	1/2 inch
Division	Fluid Control Division	Function	Normally Closed (NC)
Valve Type	2-Way	Seal Material	NBR
Actuation Type	Internal Pilot	Ingress Protection Rating	NEMA 4
Maximum Pressure Differential	175.0	Specifications Met	CE - Low Voltage
Configuration	All Ports in Body	Input Voltage	24 VDC
Maximum Fluid Temperature	185 °F	Maximum Ambient Temperature	150 °F
Orifice Size	5/8	Coil Type	1/2" NPT Conduit w/ 18" Leads
Power Consumption	10.0	Minimum Pressure Differential	5.0
Installation	IOM 7212	Main Flow Coefficient	4.00
Preventive Maintenance Kit	7K815	Port Type	NPT
Body Material	BRASS	Seal Material	NBR
Function	Normally Closed	Orifice Size	5/8
Actuation Type	Internally Piloted	Ingress Protection Rating	NEMA 4,4X
Minimum Pressure Differential	5.0	Maximum Pressure Differential	175.0
Valve Type	2 Way	Port Size	1/2
Power Consumption	10.0	Maximum Fluid Temperature	185.0
Maximum Ambient Temperature	150.0	Coil Type	1/2" NPT Conduit w/ 18" Leads
Installation	IOM 7212	Input Voltage	24 VDC
Specifications Met	CSA Listed Safety Shutoff Valve C22.2 no. 139-13	Main Flow Coefficient	4.00
Preventive Maintenance Kit	7K815
