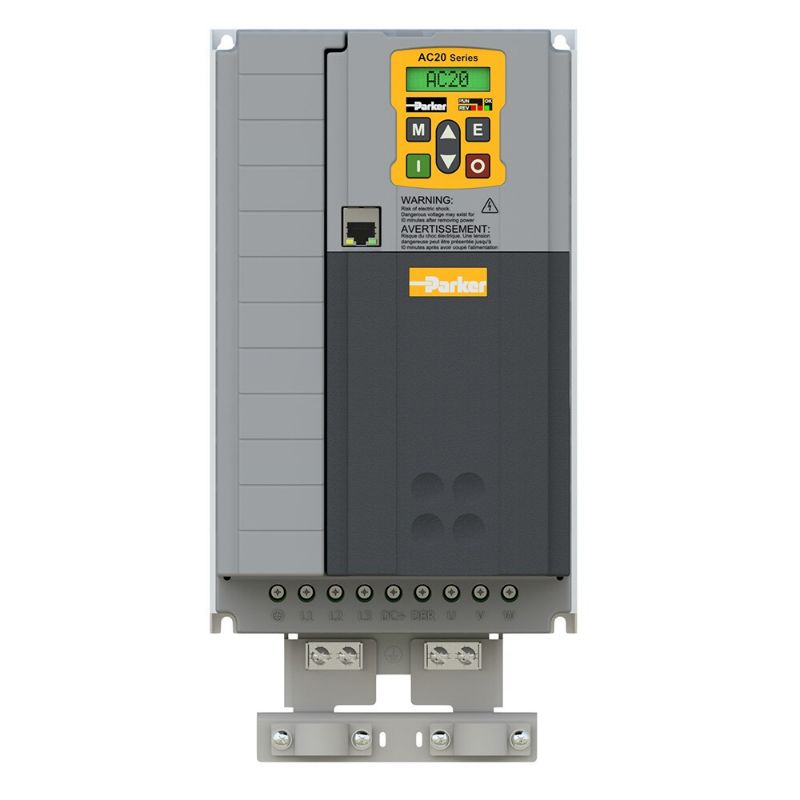

Parker 20G-44-0230-BF - AC Variable Frequency Drives, HP Rated - AC20 Series

The AC20 advanced compact drive provides Ethernet connectivity and Safe Torque Off in an economical but highly featured drive for open or closed-loop AC induction and Permanent Magnet motor control in applications up to 250HP/180kW

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 20G-44-0230-BF

$2,928.10/each

Products specifications

Attribute name	Attribute value
UOM	EA	Modes of Control	V/Hz
Compatible Motor Type	Induction	Brand	Parker
Product Series	AC20	Drive Axis Type	Single Axis Technology
Output Power	15	Division	Electronic Motion and Controls Division
Operating Temperature	0 to 40 °C (derate up to 45°C max)	Output Current Rating	20
Communication Interface	Ethernet TCP/IP	Input Voltage	3*400/480
Operating Altitude	up to 1000 m ASL (derate > 1000m)	Compatible Feedback Device	Incremental Encoder
Specifications Met	CE (EMC & LVD)	Product Type	AC Drive
Overload Rating	150 % for 60s	Input Voltage	3*400/480VAC
Output Current Rating	20 A
