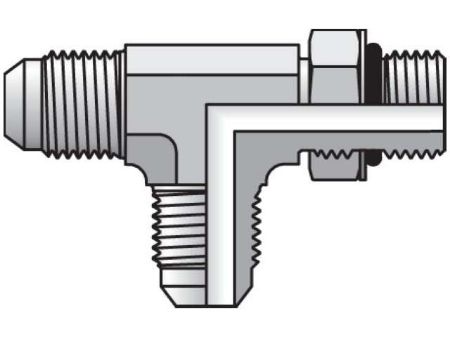

Triple-Lok 37° Tee R5OX
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Triple-Lok® 37° flare tube fittings and adapters are the most popular industrial tube/hose fitting connection in the world. Simply by changing the industry standard sleeve, the same Triple-Lok body can be adapted to metric tubing in sizes ranging from 6 mm tube O.D. to 38 mm tube O.D. Likewise, by using only the body without the nut and sleeve, the Triple-Lok fitting is used as an industry standard hose adapter.
Read More...| Action | Part No. | Availability | Partner Available | Price | UOM | UOM | Material | Pkg Qty/UOM | End 1 | Pkg Qty | End 2 | End 3 | Parker Group | Parker Division | Configuration Type | Series | Material | Trade Name | Inch/Metric | End 1 | End 1 Type | Configuration Sub-Type | Tube Fitting/Adapter Type | End 2 | End 2 Type | End 3 | End 3 Type | O-Ring/Seal Material | O-Ring/Seal Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 R5OX-S | 23 In Stock | 190 In Stock | $32.42 | EA | EA | Steel | 5 EA | 5/8 Inch | 5 | 7/8-14 UN/UNF-2A | 5/8 Inch | Fluid Connector | Tube Fitting | Tee | 37° | Steel | Triple-Lok | Inch | 5/8 Inch | Inch | Straight Thread Run Tee 37° Flare / SAE-ORB / 37° Flare | 37°, Triple-Lok | 7/8-14 UN/UNF-2A | UN/UNF-2A | 5/8 Inch | Inch | |||
| 12 R5BX-S | Quote Required | TBD | EA | Steel | 5 EA | 3/4 Inch | 5 | 1 1/16-12 UN/UNF-2A | 3/4 Inch | Fluid Connector | Tube Fitting | Tee | 37° | Steel | Triple-Lok | Inch | 3/4 Inch | Inch | Straight Thread Run Tee 37° Flare / SAE-ORB / 37° Flare | 37°, Triple-Lok | 1 1/16-12 UN/UNF-2A | UN/UNF-2A | 3/4 Inch | Inch | |||||
| 12 R5OX-S BP | Quote Required | TBD | EA | Steel | 40 EA | 3/4 Inch | 40 | 1 1/16-12 UN/UNF-2A | 3/4 Inch | Fluid Connector | Tube Fitting | Tee | 37° | Steel | Triple-Lok | Inch | 3/4 Inch | Inch | Straight Thread Run Tee 37° Flare / SAE-ORB / 37° Flare | 37°, Triple-Lok | 1 1/16-12 UN/UNF-2A | UN/UNF-2A | 3/4 Inch | Inch | |||||
| 16 R5BX-S | Quote Required | TBD | EA | Steel | 4 EA | 1 Inch | 4 | 1 5/16-12 UN/UNF-2A | 1 Inch | Fluid Connector | Tube Fitting | Tee | 37° | Steel | Triple-Lok | Inch | 1 Inch | Inch | Straight Thread Run Tee 37° Flare / SAE-ORB / 37° Flare | 37°, Triple-Lok | 1 5/16-12 UN/UNF-2A | UN/UNF-2A | 1 Inch | Inch | |||||
| 16 R5OX-S BP | Quote Required | TBD | EA | Steel | 20 EA | 1 Inch | 20 | 1 5/16-12 UN/UNF-2A | 1 Inch | Fluid Connector | Tube Fitting | Tee | 37° | Steel | Triple-Lok | Inch | 1 Inch | Inch | Straight Thread Run Tee 37° Flare / SAE-ORB / 37° Flare | 37°, Triple-Lok | 1 5/16-12 UN/UNF-2A | UN/UNF-2A | 1 Inch | Inch | |||||
| 24 R5OX-S FKM | Quote Required | TBD | EA | Steel | 1 EA | 1 1/2 Inch | 1 | 1 7/8-12 UN/UNF-2A | 1 1/2 Inch | Fluid Connector | Tube Fitting | Tee | 37° | Steel | Triple-Lok | Inch | 1 1/2 Inch | Inch | Straight Thread Run Tee 37° Flare / SAE-ORB / 37° Flare | 37°, Triple-Lok | 1 7/8-12 UN/UNF-2A | UN/UNF-2A | 1 1/2 Inch | Inch | Fluorocarbon | Fluorocarbon | |||
| 4 R5OX-S BP | Quote Required | TBD | EA | Steel | 100 EA | 1/4 Inch | 100 | 7/16-20 UN/UNF-2A | 1/4 Inch | Fluid Connector | Tube Fitting | Tee | 37° | Steel | Triple-Lok | Inch | 1/4 Inch | Inch | Straight Thread Run Tee 37° Flare / SAE-ORB / 37° Flare | 37°, Triple-Lok | 7/16-20 UN/UNF-2A | UN/UNF-2A | 1/4 Inch | Inch | |||||
| 6 R5BX-S | Quote Required | TBD | EA | Steel | 10 EA | 3/8 Inch | 10 | 9/16-18 UN/UNF-2A | 3/8 Inch | Fluid Connector | Tube Fitting | Tee | 37° | Steel | Triple-Lok | Inch | 3/8 Inch | Inch | Straight Thread Run Tee 37° Flare / SAE-ORB / 37° Flare | 37°, Triple-Lok | 9/16-18 UN/UNF-2A | UN/UNF-2A | 3/8 Inch | Inch | |||||
| 6 R5OX-S BP | Quote Required | TBD | EA | Steel | 75 EA | 3/8 Inch | 75 | 9/16-18 UN/UNF-2A | 3/8 Inch | Fluid Connector | Tube Fitting | Tee | 37° | Steel | Triple-Lok | Inch | 3/8 Inch | Inch | Straight Thread Run Tee 37° Flare / SAE-ORB / 37° Flare | 37°, Triple-Lok | 9/16-18 UN/UNF-2A | UN/UNF-2A | 3/8 Inch | Inch | |||||
| 8 R5BX-S | Quote Required | TBD | EA | Steel | 10 EA | 1/2 Inch | 10 | 3/4-16 UN/UNF-2A | 1/2 Inch | Fluid Connector | Tube Fitting | Tee | 37° | Steel | Triple-Lok | Inch | 1/2 Inch | Inch | Straight Thread Run Tee 37° Flare / SAE-ORB / 37° Flare | 37°, Triple-Lok | 3/4-16 UN/UNF-2A | UN/UNF-2A | 1/2 Inch | Inch | |||||
| 8 R5OX-S BP | Quote Required | TBD | EA | Steel | 140 EA | 1/2 Inch | 140 | 3/4-16 UN/UNF-2A | 1/2 Inch | Fluid Connector | Tube Fitting | Tee | 37° | Steel | Triple-Lok | Inch | 1/2 Inch | Inch | Straight Thread Run Tee 37° Flare / SAE-ORB / 37° Flare | 37°, Triple-Lok | 3/4-16 UN/UNF-2A | UN/UNF-2A | 1/2 Inch | Inch |
