Parker 20077771 - Master Display module - IQAN-MD4

Note: This product is not recommended for new designs.
AFP Availability:
6 In Stock
North Chesterfield, VA6
Partner Available:223 In Stock
Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.
Brand Parker
Part No. 20077771
$2,412.56/each
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

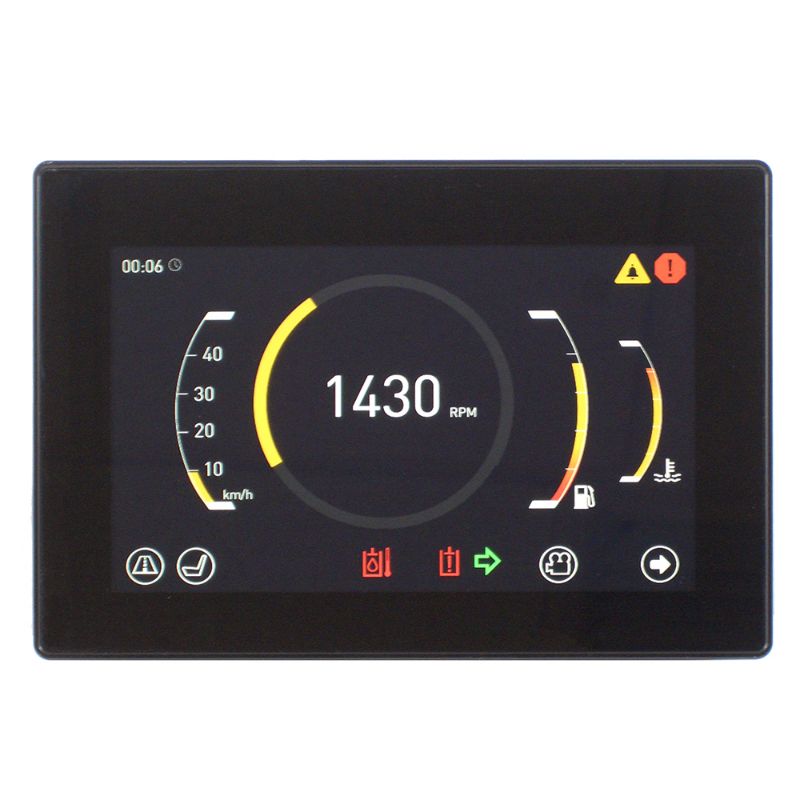

The IQAN-MD4-7-T1E2 is a master display unit compliant with the IQANdesign platform system. The unit is fully programmable for use in any machine application as a master controller, a graphical user interface and as a CAN gateway.
The IQAN-MD4 lets you use the full benefits from IQANdesign tools and simplifies the HMI design.The simplified design process, with auto-generated diagnostic measurements and adjustments, saves valuable time. IQAN gives you a high level tool chain for machine control and HMI development.
IQAN-MD4 comes with a 18 cm (7") touch screen display with IP camera support, and is manufactured to be weatherproof for outdoor use.
Products specifications
Attribute nameAttribute value
UOMEANumber of Inputs10
DivisionElectronic Motion and Controls DivisionNumber of Outputs4
Maximum Operating Temperature60 °CPower Supply Voltage9 to 32 VDC
Display Type7" Color TFT with PCAP TouchscreenCommunication Interface4x CAN
Ingress Protection Rating65Electrical ConnectionDeutsch DTM
Minimum Operating Temperature-30 °CSpecifications Met2004/108/EC
Model NumberMD4-7-T1E2
