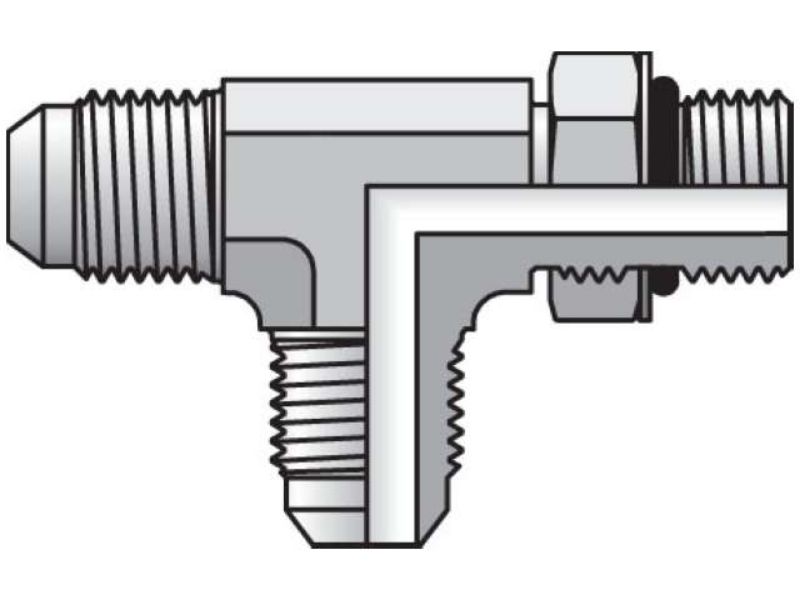

Parker 10 R5OX-S - Triple-Lok 37° Tee R5OX

Name: Parker 10 R5OX-S - Triple-Lok 37° Tee R5OX
SKU: 10 R5OX-S
Price: 32.90 USD
Availability: InStock

Triple-Lok - Straight Thread Run Tee 37° Flare / SAE-ORB / 37° Flare

AFP Availability:

17 In Stock

Grovetown, GA	4
North Chesterfield, VA	3
Richmond, VA	2 (Pickup only)
West Knoxville, TN	2
East Knoxville, TN	2
Mooresville, NC	2
Ashland, VA	1 (Pickup only)
Johnson City, TN	1 (Pickup only)

Partner Available:

203 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 10 R5OX-S

$32.90/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Steel
End 2	7/8-14 UN/UNF-2A	Pkg Qty	5
Pkg Qty/UOM	5 EA	End 3	5/8 Inch
End 1	5/8 Inch	UOM	EA
Parker Group	Fluid Connector	Parker Division	Tube Fitting
Configuration Type	Tee	Series	37°
Material	Steel	Trade Name	Triple-Lok
Inch/Metric	Inch	End 1	5/8 Inch
End 1 Type	Inch	Configuration Sub-Type	Straight Thread Run Tee 37° Flare / SAE-ORB / 37° Flare
Tube Fitting/Adapter Type	37°, Triple-Lok	End 2	7/8-14 UN/UNF-2A
End 2 Type	UN/UNF-2A	End 3	5/8 Inch
End 3 Type	Inch

Product resources

Triple-Lok Flare Tube Fittings (PDF)
