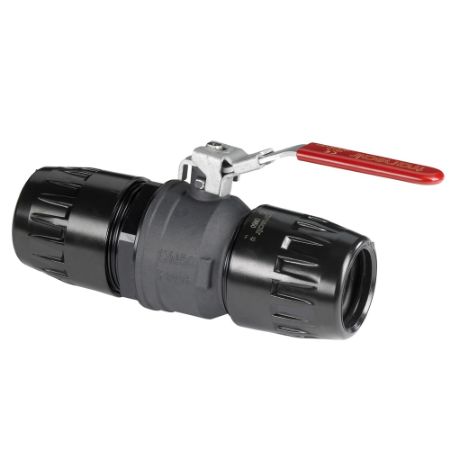

Transair® Valves for Aluminum Pipe
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Transair valves are designed for quick and easy integration into a Transair system. Valves are an important addition to any compressed air system to stop the flow of air to certain parts of the system. Placing valves at strategic points (i.e. compressor outlets, dryers, storage tanks, drop lines, etc) allow for system isolation for routine maintenance or layout reconfigurations. Transair offers ball and butterfly valves to fit size constraints and preference.
The “full bore” design of Transair valves, paired with the low coefficient of friction in the aluminum pipe ensures optimal flow throughout the compressed air system. All valves are 100% recyclable, silicone free, and made from materials with no propagation of flame. All valves conform to the UL94HB standard. Parker Hannifin warrants all Transair components to be free of defects in material and workmanship for 10 years from the date of installation.
Dependent on size, Transair valves connect via: push to connect, snap ring, or flange and bolt technology. For the full installation instructions, download our installation manual.
Markets:
• Automotive Assembly
• Food & Beverage
• Packaging
• Industrial Plants
• Aerospace
Features/Benefits:
• Quick connection technology
• Modular and reusable
• Corrosion resistant
• Full-bore design
• Optimum flow rate
• 100% recyclable
• Faster installation
• Lower installation costs
• Immediate pressurization
• Lightweight
• 10-year Warranty
Applications:
• Compressed Air
• Vacuum
• Industrial/inert Gases (i.e. Argon, Nitrogen, Carbon Dioxide)
Maximum Working Pressure:
• 1/2” to 4”: 232psi (15,9bar) when the system is operated between -4 to +113 F (-20 to +46.1 C)
• 6”: 188psi (12,9 bar) when the system is operated between -4 to +140 F (-20 to + 60 C)
Maximum Working Temperature (1/2” to 4”):
• 185°F when system is operated at 101psi or lower
• 158°F when the system is operated at 145psi or lower
• 140°F when the system is operated at 188psi or lower
• 115°F when the system is operated at 232psi or lower
| Action | Part No. | Availability | Partner Available | Price | UOM | Brand | Division | Minimum Operating Temperature | Industry | Application | Division | Seal Material | Orifice Size | Technology | Assembly Time | Configuration | Specifications Met | Vacuum Pressure Rating | Maximum Operating Pressure | Maximum Operating Temperature | Connection 1 Type | Connection 2 Type | Connection 2 Size | Function | For Fluid Type | Body Material | Product Type | Product Style | Flow Direction | Quantity per Box | Weight | Actuation Type | Options | Mounting Type | Response Time | Seat Material | Operation Type | Connection 1 Size | Pipe O.D. (mm) | Pipe O.D. (inch) | Connection Thread Size (inch) | Style | Vented | Silicone Free | Proof Pressure | Burst Pressure | Maximum Flow Rate | Power Consumption | Model Number | Pressure Differential | Flow Coefficient | Cavity Size | Number of Ports | Pressure Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4092 17 00 | 8 In Stock | 62 In Stock | $82.06 | EA | Transair | Fluid System Connectors Division | -4 °F | General Industrial | In Plant Pneumatic | Fluid System Connectors Division | NBR | 1/2 inch | Pneumatics | 0.04 Hours | Pipe to Pipe | EN 573.3 | 1 mbar | 232 psi | 185 °F | Pipe | Pipe | 1/2 inch | 2-Way | Compressed Air | Treated Brass | Flow Control Valve | Ball Valve | Bidirectional | 2 | 0.720 lb | Manual | Lockable | In-line/Pipe | n/a | PTFE | Manual | 1/2 inch | 16.5 | 1/2 | n/a | Ball Valve | No | Yes | |||||||||||
| 4092 25 00 | 1 Limited Stock | 446 In Stock | $152.54 | EA | Transair | Low Pressure Connectors Europe Division | -20 °C | General Industrial | In Plant Pneumatic | Low Pressure Connectors Europe Division | NBR | 25 mm | Pneumatics | 0.04 Hours | Pipe to Pipe | TUV | 0.03 inch-Hg | 232 psi | 185 °F | Pipe | Pipe | 1 inch | 2-Way | Inert Gases | Technical Polymer | Flow Control Valve | Ball Valve | Bidirectional | 2 | 0.895 kg | Manual | Lockable | In-line/Pipe | n/a | PTFE | Manual | 1 inch | 25 | 1 | n/a | Ball Valve | No | Yes | |||||||||||
| 4092 25 00US | Quote Required | TBD | Parker | Fluid System Connectors Division | -4 | General Industrial | In Plant Pneumatic | Fluid System Connectors Division | NBR | 25 | Fluid & Gas Handling | 0.04 | Pipe to Pipe | EN 755.2 | 29.6 | 232 | 140 | Pipe | Pipe | 1 | 2-Way | Compressed Air | Technical Polymer | Flow Control Valve | Ball Valve | Bidirectional | 2 | 1.970 | Manual | Lockable | In-line/Pipe | n/a | PTFE | Manual | 1 | 25 | 1 | n/a | Ball Valve | Yes | ||||||||||||||
| 4092 40 00 | Quote Required | 240 In Stock | $157.34 | EA | Parker | Fluid System Connectors Division | -4 °F | General Industrial | In Plant Pneumatic | Low Pressure Connectors Europe Division | NBR | 40 mm | Fluid & Gas Handling | 0.04 Hours | Pipe to Pipe | EN 755.8 | 1 mbar | 232 psi | 185 °F | Pipe | Pipe | 1-1/2 inch | 2-Way | Industrial Gases | Technical Polymer | Flow Control Valve | Ball Valve | Bidirectional | 2 | 1.735 kg | Manual | Lockable | In-line/Pipe | n/a | PTFE | Manual | 40 mm | 40 | 1-1/2 | n/a | Ball Valve | No | Yes | |||||||||||
| 4092 50 00 | Quote Required | 122 In Stock | $259.03 | EA | Transair | Low Pressure Connectors Europe Division | -4 °F | General Industrial | In Plant Pneumatic | Low Pressure Connectors Europe Division | NBR | 2 inch | Fluid & Gas Handling | 0.06 Hours | Pipe to Pipe | EN 573.3 | 1 mbar | 232 psi | 85 °C | Pipe | Pipe | 50 mm | 2-Way | Vaccum | Treated Aluminum | Flow Control Valve | Ball Valve | Bidirectional | 1 | 3.730 lb | Manual | Lockable | In-line/Pipe | n/a | PTFE | Manual | 50 mm | 50 | 2 | n/a | Ball Valve | No | Yes | |||||||||||
| 4092 63 00 | Quote Required | 93 In Stock | $330.92 | EA | Parker | Fluid System Connectors Division | -4 °F | General Industrial | In Plant Pneumatic | Fluid System Connectors Division | NBR | 2-1/2 inch | Fluid & Gas Handling | 0.06 Hours | Pipe to Pipe | EN 755.2 | 1 mbar | 232 psi | 85 °C | Pipe | Pipe | 2-1/2 inch | 2-Way | Industrial Gases | Treated Aluminum | Flow Control Valve | Ball Valve | Bidirectional | 1 | 2.605 kg | Manual | Lockable | In-line/Pipe | n/a | PTFE | Manual | 2-1/2 inch | 63 | 2-1/2 | n/a | Ball Valve | No | Yes | |||||||||||
| 4230 00 40 | Quote Required | TBD | Transair | Fluid System Connectors Division | -20 °C | General Industrial | In Plant Pneumatic | Fluid System Connectors Division | NBR | 40 mm | Fluid & Gas Handling | 0.04 Hours | Pipe to Pipe | CE | 0.03 inch-Hg | 16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca | 185 °F | Pipe | Pipe | 40 mm | 2-Way | Inert Gases | Technical Polymer | Flow Control Valve | Butterfly Valve | Bidirectional | 0 | 1.814 kg | Pneumatic | Standard | In-line/Pipe | n/a | PTFE | Pneumatic | 40 mm | 40 | 1-1/2 | n/a | Remote Shut-Off Valve | No | Yes | |||||||||||||
| 4981 10 21TR | Quote Required | TBD | Parker | Fluid System Connectors Division | -4 °F | General Industrial | In Plant Pneumatic | Fluid System Connectors Division | NBR | 25 mm | Fluid & Gas Handling | 0.1 Hours | Port to Port | EN 573.3 | 0.03 inch-Hg | 16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca | 85 °C | Male BSPT | Female BSPT | R1/2 inch | 2-Way | Industrial Gases | Treated Brass | Flow Control Valve | Ball Valve | Bidirectional | 1 | 0.304 lb | Manual | Lockable | In-line/Pipe | n/a | PTFE | Manual | R1/2 inch | N/A | N/A | 1/2 | Ball Valve | No | Yes | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a | |||
| VR01 L1 00 | Quote Required | $0.01 | EA | Parker | Low Pressure Connectors Europe Division | -20 °C | General Industrial | In Plant Pneumatic | Low Pressure Connectors Europe Division | PTFE | 3 inch | Pneumatics | 0.13 Hours | Pipe to Flange | ISO 8573 (Air Quality) | 1 mbar | 16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca | 85 °C | Flange | Flange | 76 mm | 2-Way | Industrial Gases | Treated Ductile Iron | Flow Control Valve | Ball Valve | Bidirectional | 1 | 15.500 kg | Manual | Standard | Flanged | n/a | PTFE | Manual | 3 inch | 76 | 3 | n/a | Ball Valve | No | Yes | ||||||||||||
| VR01 L1 00 46 | Quote Required | 1 Limited Stock | $625.52 | EA | Parker | Low Pressure Connectors Europe Division | -20 °C | General Industrial | In Plant Pneumatic | Fluid System Connectors Division | PTFE | 76 mm | Fluid & Gas Handling | 0.13 Hours | Pipe to Flange | ISO 9001 | 0.03 inch-Hg | 16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca | 185 °F | Flange | Flange | 3 inch | 2-Way | Compressed Air | Treated Ductile Iron | Flow Control Valve | Ball Valve | Bidirectional | 1 | 34.170 lb | Manual | Standard | Flanged | n/a | PTFE | Manual | 76 mm | 76 | 3 | n/a | Ball Valve | No | Yes | |||||||||||
| VR01 L3 00 | Quote Required | TBD | Parker | Fluid System Connectors Division | -4 °F | General Industrial | In Plant Pneumatic | Low Pressure Connectors Europe Division | PTFE | 4 inch | Fluid & Gas Handling | 0.15 Hours | Pipe to Flange | TUV | 1 mbar | 232 psi | 85 °C | Flange | Flange | 4 inch | 2-Way | Compressed Air | Treated Ductile Iron | Flow Control Valve | Ball Valve | Bidirectional | 1 | 40.785 lb | Manual | Standard | Flanged | n/a | PTFE | Manual | 100 mm | 101 | 4 | n/a | Ball Valve | No | Yes | |||||||||||||
| VR01 L3 00 46 | Quote Required | $828.47 | EA | Transair | Fluid System Connectors Division | -4 °F | General Industrial | In Plant Pneumatic | Fluid System Connectors Division | PTFE | 100 mm | Fluid & Gas Handling | 0.15 Hours | Pipe to Flange | CE | 0.03 inch-Hg | 232 psi | 85 °C | Flange | Flange | 4 inch | 2-Way | Inert Gases | Treated Ductile Iron | Flow Control Valve | Ball Valve | Bidirectional | 1 | 40.780 lb | Manual | Standard | Flanged | n/a | PTFE | Manual | 4 inch | 101 | 4 | n/a | Ball Valve | No | Yes | ||||||||||||
| VR01 L8 00 | Quote Required | TBD | Transair | Fluid System Connectors Division | -20 °C | General Industrial | In Plant Pneumatic | Fluid System Connectors Division | PTFE | 6 inch | Pneumatics | 0.2 Hours | Pipe to Flange | ASME B31.1 - 31.9 | 1 mbar | 13 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca | 185 °F | Flange | Flange | 168 mm | 2-Way | Vaccum | Treated Ductile Iron | Flow Control Valve | Ball Valve | Bidirectional | 1 | 84.870 lb | Manual | Standard | Flanged | n/a | PTFE | Manual | 6 inch | 168 | 6 | n/a | Ball Valve | No | Yes | |||||||||||||
| VR02 63 00 | Quote Required | TBD | Parker | Fluid System Connectors Division | -20 °C | General Industrial | In Plant Pneumatic | Fluid System Connectors Division | NBR | 63 mm | Pneumatics | 0.13 Hours | Pipe to Flange | ISO 9001 | 0.03 inch-Hg | 232 psi | 185 °F | Flange | Flange | 63 mm | 2-Way | Compressed Air | Treated Cast Iron | Flow Control Valve | Butterfly Valve | Bidirectional | 1 | 5.290 lb | Manual | Lockable | Flanged | n/a | NBR | Manual | 2-1/2 inch | 63 | 2-1/2 | n/a | Butterfly Valve | No | Yes | |||||||||||||
| VR02 L1 00 | Quote Required | TBD | Parker | Low Pressure Connectors Europe Division | -20 °C | General Industrial | In Plant Pneumatic | Low Pressure Connectors Europe Division | NBR | 76 mm | Fluid & Gas Handling | 0.13 Hours | Pipe to Flange | TUV | 1 mbar | 16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca | 185 °F | Flange | Flange | 3 inch | 2-Way | Inert Gases | Cast Iron | Flow Control Valve | Butterfly Valve | Bidirectional | 1 | 7.054 lb | Manual | Lockable | Flanged | n/a | NBR | Manual | 76 mm | 76 | 6 | n/a | Butterfly Valve | No | Yes | |||||||||||||
| VR02 L1 00US | Quote Required | TBD | Transair | Fluid System Connectors Division | -20 °C | General Industrial | In Plant Pneumatic | Fluid System Connectors Division | NBR | 76 mm | Fluid & Gas Handling | 0.2 Hours | Pipe to Flange | ISO 9001 | 0.03 inch-Hg | 232 psi | 85 °C | Flange | Flange | 3 inch | 2-Way | Industrial Gases | Treated Cast Iron | Flow Control Valve | Butterfly Valve | Bidirectional | 1 | 8.440 lb | Manual | Lockable | Flanged | n/a | NBR | Manual | 3 inch | 76 | 3 | n/a | Butterfly Valve | No | Yes | |||||||||||||
| VR02 L3 00 | Quote Required | TBD | Transair | Fluid System Connectors Division | -20 °C | General Industrial | In Plant Pneumatic | Low Pressure Connectors Europe Division | NBR | 4 inch | Fluid & Gas Handling | 0.15 Hours | Pipe to Flange | EN 755.2 | 0.03 inch-Hg | 232 psi | 185 °F | Flange | Flange | 100 mm | 2-Way | Inert Gases | Cast Iron | Flow Control Valve | Butterfly Valve | Bidirectional | 1 | 4.300 kg | Manual | Lockable | Flanged | n/a | NBR | Manual | 4 inch | 101 | 4 | n/a | Butterfly Valve | No | Yes | |||||||||||||
| VR02 L3 00US | Quote Required | 2 Limited Stock | $285.97 | EA | Parker | Fluid System Connectors Division | -20 °C | General Industrial | In Plant Pneumatic | Fluid System Connectors Division | NBR | 100 mm | Pneumatics | 0.2 Hours | Pipe to Flange | EN 755.8 | 1 mbar | 16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca | 85 °C | Flange | Flange | 100 mm | 2-Way | Compressed Air | Treated Cast Iron | Flow Control Valve | Butterfly Valve | Bidirectional | 1 | 16.400 lb | Manual | Lockable | Flanged | n/a | NBR | Manual | 100 mm | 101 | 4 | n/a | Butterfly Valve | No | Yes | |||||||||||
| VR02 L8 00 | Quote Required | TBD | Parker | Fluid System Connectors Division | -20 °C | General Industrial | In Plant Pneumatic | Low Pressure Connectors Europe Division | NBR | 168 mm | Pneumatics | 0.2 Hours | Pipe to Flange | ASME B31.1 - 31.9 | 1 mbar | 188 psi | 85 °C | Flange | Flange | 6 inch | 2-Way | Vaccum | Cast Iron | Flow Control Valve | Butterfly Valve | Bidirectional | 1 | 7.800 kg | Manual | Lockable | Flanged | n/a | NBR | Manual | 168 mm | 168 | 6 | n/a | Butterfly Valve | No | Yes | |||||||||||||
| VR02 L8 00US | Quote Required | TBD | Parker | Fluid System Connectors Division | -20 °C | General Industrial | In Plant Pneumatic | Fluid System Connectors Division | NBR | 6 inch | Pneumatics | 0.2 Hours | Pipe to Flange | EN 755.2 | 1 mbar | 13 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca | 85 °C | Flange | Flange | 6 inch | 2-Way | Compressed Air | Treated Cast Iron | Flow Control Valve | Butterfly Valve | Bidirectional | 1 | 24.710 lb | Manual | Lockable | Flanged | n/a | NBR | Manual | 168 mm | 168 | 6 | n/a | Butterfly Valve | No | Yes |
