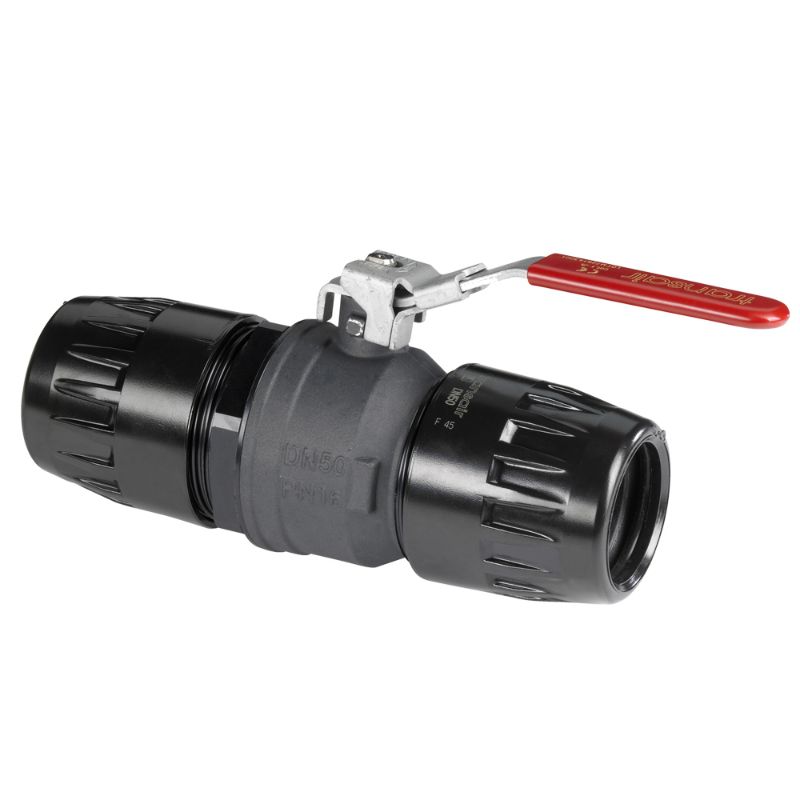

Parker 4092 50 00 - Transair® Valves for Aluminum Pipe

Transair® Valves are designed for quick and easy integration into a Transair compressed air piping system. Placing valves at strategic points allows for easy system isolation.

Availability:	Quote Required
Partner Available:	122 In Stock

Brand Parker

Part No. 4092 50 00

$259.03

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Brand	Transair
Division	Low Pressure Connectors Europe Division	Maximum Operating Temperature	85 °C
Minimum Operating Temperature	-4 °F	Industry	General Industrial
Technology	Fluid & Gas Handling	Application	In Plant Pneumatic
Division	Low Pressure Connectors Europe Division	Seal Material	NBR
Body Material	Treated Aluminum	Configuration	Pipe to Pipe
Specifications Met	EN 573.3	Vacuum Pressure Rating	1 mbar
Maximum Operating Pressure	232 psi	Connection 1 Type	Pipe
Quantity per Box	1	Connection 2 Type	Pipe
Function	2-Way	Product Type	Flow Control Valve
Product Style	Ball Valve	Flow Direction	Bidirectional
Weight	3.730 lb	Actuation Type	Manual
For Fluid Type	Vaccum	Options	Lockable
Orifice Size	2 inch	Assembly Time	0.06 Hours
Mounting Type	In-line/Pipe	Response Time	n/a
Seat Material	PTFE	Operation Type	Manual
Connection 1 Size	50 mm	Connection 2 Size	50 mm
Pipe O.D. (mm)	50	Pipe O.D. (inch)	2
Connection Thread Size (inch)	n/a	Style	Ball Valve
Vented	No	Silicone Free	Yes

Product resources

Compliance, Certifications & Safety

Transair Regulations & Certifications (PDF)

Literature and Reference Materials
