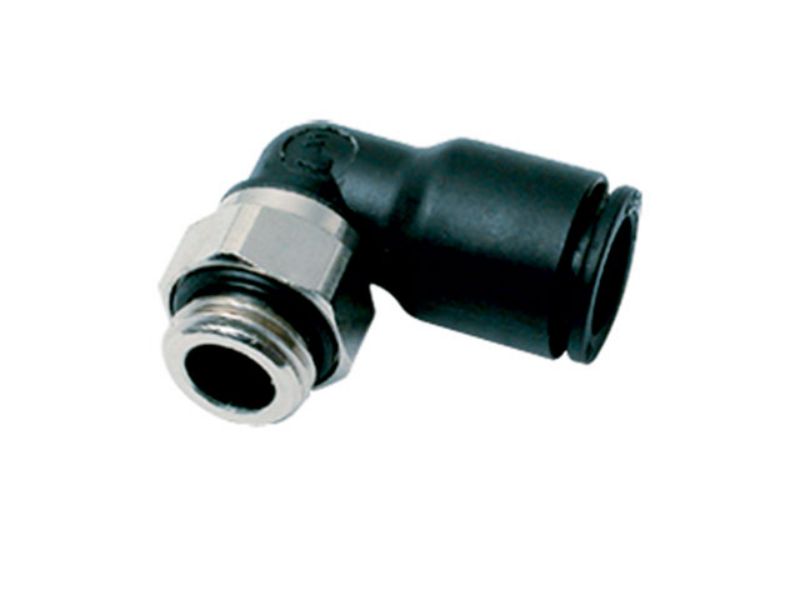

Parker 3109 10 22 - Legris Composite 3109 - Metric-NPT

Male Elbow Swivel 90° Push-to-Connect Instant Pneumatic Fitting

AFP Availability:	Quote Required
Partner Available:	6 In Stock

Brand Parker

Part No. 3109 10 22

$14.47/each

Products specifications

Attribute name	Attribute value
Outer Diameter 1	10 mm	UOM	EA
Thread 1	1/2 NPT	Material	Composite, Nickel-Plated Brass
Pkg Qty	10	Pkg Qty/UOM	10 EA
Parker Group	Fluid Connector	Parker Division	Fluid Systems Connector (Brass Products)
Configuration Type	Tube to Male	Thread 1 Type	NPT
Configuration Sub-Type	Male Elbow Swivel 90°	Thread 1	1/2 NPT
Outer Diameter 1	10 mm	Outer Diameter 1 Inch/mm	mm
Series	Legris LF3000	Material	Composite, Nickel-Plated Brass
Trade Name	Legris	Inch/Metric	Metric-NPT

Product resources

Legris Push-in Fittings (PDF)
