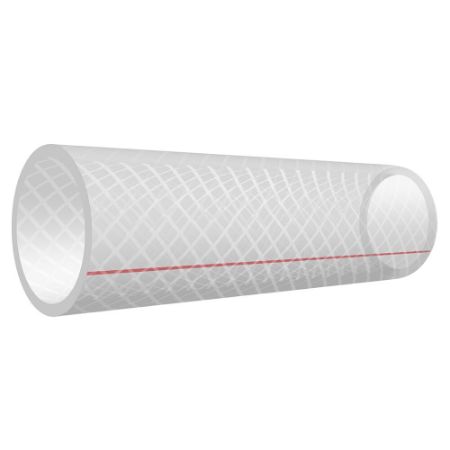

THORO-BRAID® PVC Clear General Service Hose, Series 7581

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker's Series 7581 PVC Clear General Service Hose provides medium pressure standard duty service across multiple applications. The clear, smooth tube does not impart taste or odor to material being conveyed, allows unimpeded flow and easy and quick observation of the transfer process. The red tracer yarn provides easy identification and the hose is resistant to abrasion and weathering for maximum performance.

Markets:
• Food and Beverage
• General Industrial

Features/Benefits:
• Tube: Clear PVC for sanitary processing to 140°F.
• Reinforcement: Multiple textile plies for strength and durability.
• Cover: Clear PVC for easy visual observation, and abrasion and weathering resistance.

Applications:
- media
• Air
• Dry abrasive materials
• Food
• Potable water
- usage
• Conduit
• In-plant transfer
• Laboratories
• Wire harness

Industry Standards:
• FDA

Warnings:
• Working pressures are at +68°F (+20°C). Higher temperatures reduce the available working pressure.
• Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to NAHAD Industrial Hose Assembly Guidelines.

View as Grid List

Sort by

Display per page

Part No.	Availability	Partner Available	Price	UOM	Inside Diameter	Application	Length per Package	Minimum Operating Temperature	Hose Reinforcement Material	Media	Specifications Met	Outside Diameter	Maximum Operating Pressure	Package Type	Cover Color	Division	Minimum Bend Radius	Weight	Cover Material	Hose Inner Tube Material	Maximum Operating Temperature	Cover Structure	Hose I.D. (inch)	Maximum Working Pressure (psi)
7581-1001	Quote Required	Quote Required	TBD		1 inch	PVC Hose	300 ft	-10 °C	2 Plies of Textile with Longitudinal Red Tracer Yarn	Food Abrasive Powders (Sugar)	FDA	1.300 inch	140 psi	Coil	Transparent	Hose Products Division	9 inch	0.32 lb/ft	PVC	Clear	140 °F	Smooth	1	140
7581-1251	Quote Required	603 In Stock	$5.46	FT	31.8 mm	PVC Hose	100 ft	-10 °C	2 Plies of Textile with Longitudinal Red Tracer Yarn	Food Abrasive Powders (Sugar)	FDA	1.610 inch	115 psi	Coil	Transparent	Hose Products Division	12 inch	0.45 lb/ft	PVC	PVC	140 °F	Smooth	1-1/4	115
7581-1501	Quote Required	Quote Required	TBD		38.1 mm	PVC Hose	100 ft	-10 °C	2 Plies of Textile with Longitudinal Red Tracer Yarn	Dry Abrasive Powders (Powders)	FDA	1.890 inch	6.9 bar	Coil	Transparent	Hose Products Division	381 mm	0.60 lb/ft	PVC	Clear	60 °C	Smooth	1-1/2	100
7581-2001	Quote Required	Quote Required	TBD		50.8 mm	PVC Hose	100 ft	-10 °C	2 Plies of Textile with Longitudinal Red Tracer Yarn	Air	FDA	61 mm	85 psi	Coil	Transparent	Hose Products Division	18 inch	1.36 kg/m	PVC	Clear	140 °F	Smooth	2	85
7581-251	Quote Required	Quote Required	TBD		1/4 inch	PVC Hose	300 ft	14 °F	2 Plies of Textile with Longitudinal Red Tracer Yarn	Food Abrasive Powders (Sugar)	FDA	12.4 mm	24.5 bar	Coil	Blue	Hose Products Division	3 inch	0.09 kg/m	PVC	PVC	60 °C	Smooth	1/4	355
7581-381	Quote Required	2664 In Stock	$1.32	FT	3/8 inch	PVC Hose	300 ft	14 °F	2 Plies of Textile with Longitudinal Red Tracer Yarn	Air	FDA	15.2 mm	21.7 bar	Coil	Transparent	Hose Products Division	4 inch	0.16 kg/m	PVC	Clear	140 °F	Smooth	3/8	315
7581-501	Quote Required	4076 In Stock	$1.55	FT	12.7 mm	PVC Hose	300 ft	-10 °C	2 Plies of Textile with Longitudinal Red Tracer Yarn	Food Abrasive Powders (Granules)	FDA	19.1 mm	14.8 bar	Coil	Transparent	Hose Products Division	127 mm	0.13 lb/ft	PVC	Clear	60 °C	Smooth	1/2	215
7581-631	Quote Required	Quote Required	TBD		5/8 inch	PVC Hose	300 ft	-10 °C	2 Plies of Textile with Longitudinal Red Tracer Yarn	Food Abrasive Powders (Flour, Grains, Granules, Pellets, Sugar)	FDA	22.1 mm	12.8 bar	Coil	Transparent	Hose Products Division	6 inch	0.18 lb/ft	PVC	Clear	60 °C	Smooth	5/8	185
7581-751	Quote Required	Quote Required	TBD		3/4 inch	PVC Hose	300 ft	-10 °C	2 Plies of Textile with Longitudinal Red Tracer Yarn	Air	FDA	1.030 inch	170 psi	Coil	Transparent	Hose Products Division	177.8 mm	0.22 lb/ft	PVC	Clear	60 °C	Smooth	3/4	170
