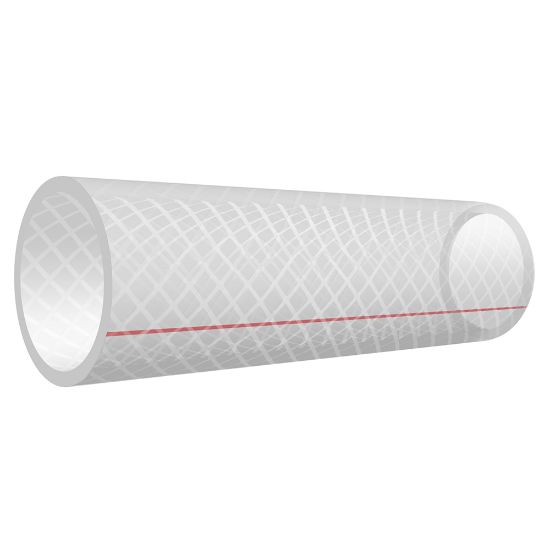

Parker 7581-501 - THORO-BRAID® PVC Clear General Service Hose, Series 7581

Thoro-Braid PVC Clear General Service Hose is designed for transfer of abrasives, air, food particulates, sanitary products and potable water in applications to 140°F and 355 psi, Series 7581

AFP Availability:	Quote Required
Partner Available:	3103 In Stock

Brand Parker

Part No. 7581-501

$1.64/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Hose Reinforcement Material	2 Plies of Textile with Longitudinal Red Tracer Yarn
Cover Material	PVC	Specifications Met	FDA
Minimum Bend Radius	127 mm	Minimum Operating Temperature	-10 °C
Application	PVC Hose	Inside Diameter	12.7 mm
Outside Diameter	19.1 mm	Cover Structure	Smooth
Maximum Operating Pressure	14.8 bar	Length per Package	300 ft
Weight	0.13 lb/ft	Division	Hose Products Division
Maximum Operating Temperature	60 °C	Cover Color	Transparent
Package Type	Coil	Hose Inner Tube Material	Clear
Media	Food Abrasive Powders (Granules)	Maximum Working Pressure (psi)	215
Hose I.D. (inch)	1/2

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
