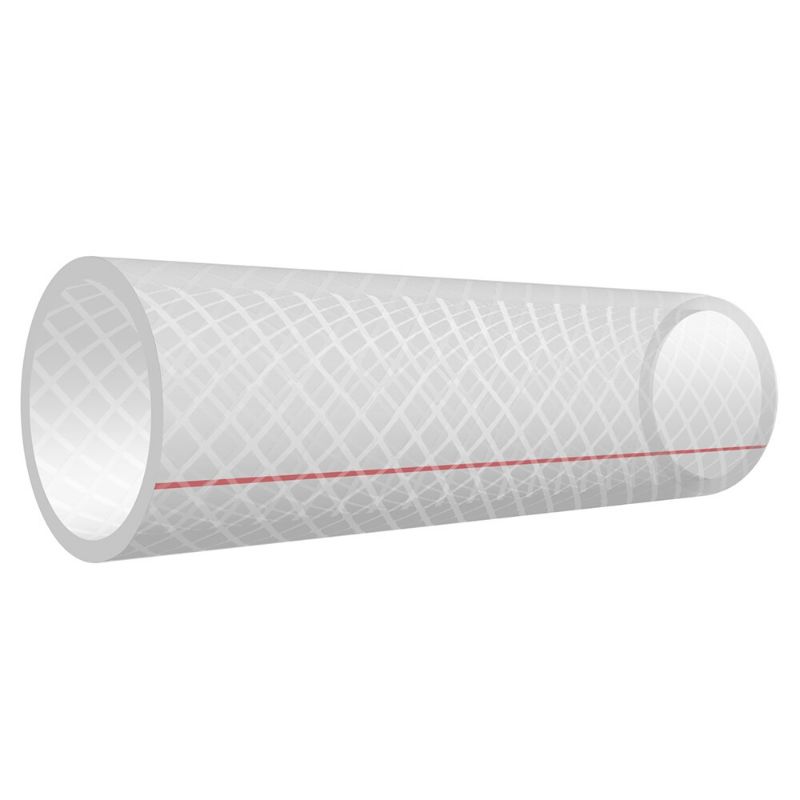

Parker 7581-381 - THORO-BRAID® PVC Clear General Service Hose, Series 7581

Thoro-Braid PVC Clear General Service Hose is designed for transfer of abrasives, air, food particulates, sanitary products and potable water in applications to 140°F and 355 psi, Series 7581

Availability:	Quote Required
Partner Available:	2664 In Stock

Brand Parker

Part No. 7581-381

$1.32

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	FT	Maximum Operating Pressure	21.7 bar
Application	PVC Hose	Hose Inner Tube Material	Clear
Weight	0.16 kg/m	Cover Material	PVC
Specifications Met	FDA	Outside Diameter	15.2 mm
Minimum Operating Temperature	14 °F	Minimum Bend Radius	4 inch
Package Type	Coil	Cover Color	Transparent
Division	Hose Products Division	Inside Diameter	3/8 inch
Media	Air	Hose Reinforcement Material	2 Plies of Textile with Longitudinal Red Tracer Yarn
Length per Package	300 ft	Cover Structure	Smooth
Maximum Operating Temperature	140 °F	Maximum Working Pressure (psi)	315
Hose I.D. (inch)	3/8

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
