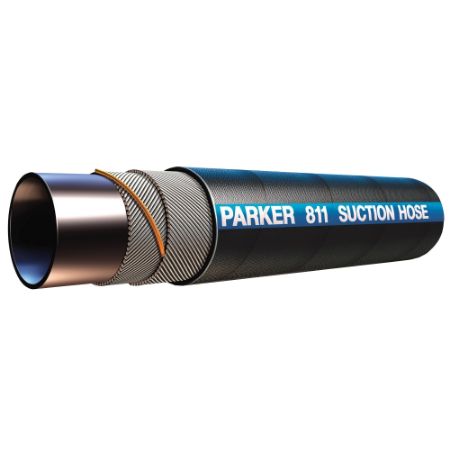

Suction and Return Line Hose 62-300 PSI – 811 Hose

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker’s 811 hose is a suction and return line hose that has a working pressure range of 62-300 PSI which is designed for high temperature applications. The 811 hose is designed, built, and tested to meet SAE 100R4 performance specifications. Sizes range from ¾” to 2-½” in diameter to fit the requirements of various markets.

Markets:

• Transportation

• RV & Bus

• Military

• Construction

• Agriculture

• Grounds & Building Maintenance

• Forestry

• Railroad

• Utility Equipment

• Personnel Lift Equipment

• Machine Tool

• Oil Field Service

• Waste & Refuse

• Material Handling

• Marine

• Paving & Road Maintenance

• Ground Support Equipment

• Industrial

• Mining

Features/Benefits:

• 62-300 PSI working pressure in different sizes

• Half SAE bend radius for ease of installation and low force to flex

• SAE J517 100R4 / SAE J1942 Performance Specifications

• Oil and weather-resistant synthetic rubber cover

Applications:

• Petroleum base hydraulic fluids and lubricating oils

Compatible Fittings:

• 81 series fittings (for -12 to -32)

• 88 series fittings (for -12 to -40)

View as Grid List

Sort by

Display per page

Part No.	Availability	Partner Available	Price	UOM	Division	Minimum Operating Temperature	Maximum Operating Temperature	Inside Diameter	Minimum Bend Radius	Cover Material	Hose Cover Type	Compatible Fitting	Hose Inner Tube Material	Nominal Hose Inside Diameter	Application	Media	Weight	Outside Diameter	Maximum Operating Pressure	Specifications Met	Vacuum Pressure Rating	Hose Reinforcement Material	Hose I.D. (size)
811-12	419 In Stock	5022 In Stock	$13.54	FT	Hose Products Division	-40 °F	212 °F	19 mm	64 mm	Synthetic Rubber	Standard Cover	43 Series	Synthetic Rubber	19 mm	Petroleum Base Hydraulic Fluids	Petroleum Hydraulic Fluids	0.42 lb/ft	1.180 inch	300 psi (w/ 81/88DB)	SAE J1943	25 Inch-Hg	Multiple Layers of Spiral Fiber with Wire Helix	-12
811-16	197 In Stock	5880 In Stock	$16.31	FT	Hose Products Division	-40 °C	100 °C	1 inch	3 inch	Synthetic Rubber	Standard Cover	88 Series	Synthetic Rubber	25 mm	Petroleum Base Hydraulic Fluids	Petroleum Hydraulic Fluids	0.96 kg/m	38 mm	17 bar (w/ 81/88DB)	SAE 100R4	84 kPa	Multiple Layers of Spiral Fiber with Wire Helix	-16
811-20	486 In Stock	4563 In Stock	$23.07	FT	Hose Products Division	-40 °C	100 °C	31.8 mm	102 mm	Synthetic Rubber	Standard Cover	43 Series	Synthetic Rubber	31 mm	Lubricating Oils	Lubricants	0.82 lb/ft	45 mm	50 psi (w/ 88HC)	SAE 100R4	25 Inch-Hg	Multiple Layers of Spiral Fiber with Wire Helix	-20
811-24	124 In Stock	4763 In Stock	$30.82	FT	Hose Products Division	-40 °F	100 °C	1-1/2 inch	5 inch	Synthetic Rubber	Standard Cover	88 Series	Synthetic Rubber	38 mm	Petroleum Base Hydraulic Fluids	Lubricants	1.04 lb/ft	2.050 inch	3 bar (w/ 88HC)	USCG HF	84 kPa	Multiple Layers of Spiral Fiber with Wire Helix	-24
811-32	98 In Stock	4533 In Stock	$38.64	FT	Hose Products Division	-40 °F	212 °F	2 inch	152 mm	Synthetic Rubber	Standard Cover	43 Series	Synthetic Rubber	50 mm	Lubricating Oils	Petroleum Hydraulic Fluids	1.87 kg/m	63.6 mm	100 psi (w/ 81/88DB)	USCG HF	84 kPa	Multiple Layers of Spiral Fiber with Wire Helix	-32
811-40	5 In Stock	1031 In Stock	$53.47	FT	Hose Products Division	-40 °C	212 °F	2-1/2 inch	178 mm	Synthetic Rubber	Standard Cover	81 Series	Synthetic Rubber	63 mm	Petroleum Base Hydraulic Fluids	Lubricants	2.45 kg/m	3 inch	4 bar (w/ 88HC)	SAE 100R4	25 Inch-Hg	Multiple Layers of Spiral Fiber with Wire Helix	-40
