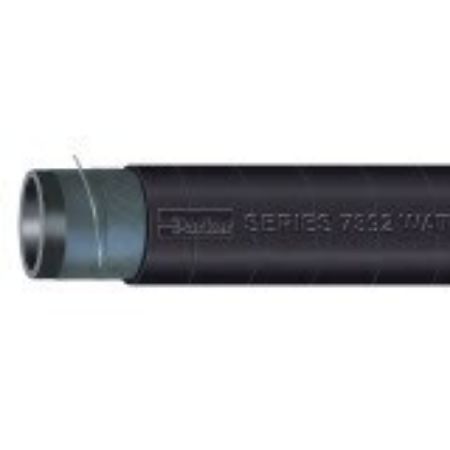

Standard Duty Water Suction Hose, Series 7392
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's Series 7392 Standard Duty Water Suction Hose provides excellent medium pressure, standard duty service across multiple applications. The lightweight construction provides crush resistance and kink resistance for unimpeded flow, flexibility for easy handling and resistance to abrasion and weathering for maximum performance.
Markets:
• Agriculture
• Construction
• General Industrial
• Surface Mining
Features/Benefits:
• Tube: Black EPDM for versatile service to 212°F.
• Reinforcement: Multiple textile plies for strength and durability, and a wire helix for full suction capability and a path to conduct a static charge to ground.
• Cover: Black EPDM for resistance to abrasion, cuts, gouging, scuffs and weathering resistance.
Applications:
- media
• Alkalines
• Brine
• Glycols
• Herbicides
• Mild chemicals
• Slurries
• Water
- usage
• Irrigation
• Pumps
Safety/Technical:
• Design Factor: 4:1
• Click here to link to CrimpSource® for current crimp specifications.
Warnings:
• Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to NAHAD Industrial Hose Assembly Guidelines.
| Action | Part No. | Availability | Partner Available | Price | Minimum Operating Temperature | Design Factor | Hose Inner Tube Material | Hose Reinforcement Material | Specifications Met | Application | Cover Material | Minimum Bend Radius | Vacuum Pressure Rating | Inside Diameter | Weight | Maximum Operating Pressure | Outside Diameter | Media | Maximum Operating Temperature | Division | Cover Color | Hose I.D. (inch) | Standard Package Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7392-1250 | 25 In Stock | Quote Required | $9.25/each | -40 °F | 4:1 | Black | Multiple Plies of Textile with Single or Dual Wire Helix | n/a | Water | Ethylene Propylene Diene Monomer (EPDM) | 127 mm | 737 mm-Hg | 1-1/4 inch | 0.52 lb/ft | 100 to 150 psi | 1.6 inch | Water | 212 °F | Hose Products Division | Black | 1-1/4 | 100 ft | |
| 7392-1500 | 1 Limited Stock | Quote Required | $10.02/each | -40 °C | 4:1 | Black | Multiple Plies of Textile with Single or Dual Wire Helix | n/a | Water | Ethylene Propylene Diene Monomer (EPDM) | 152 mm | 737 mm-Hg | 1-1/2 inch | 0.83 lb/ft | 6.9 to 19.3 bar | 49.2 mm | Water | 100 °C | Hose Products Division | Black | 1-1/2 | 100 ft | |
| 7392-2000 | Quote Required | 21 In Stock | $14.15/each | -40 °F | 4:1 | Ethylene Propylene Diene Monomer (EPDM) | Multiple Plies of Textile with Single or Dual Wire Helix | n/a | Water | Ethylene Propylene Diene Monomer (EPDM) | 7 inch | 29 inch-Hg | 50.8 mm | 1.55 kg/m | 100 to 150 psi | 2.4 inch | Water | 212 °F | Hose Products Division | Black | 2 | 100 ft |
