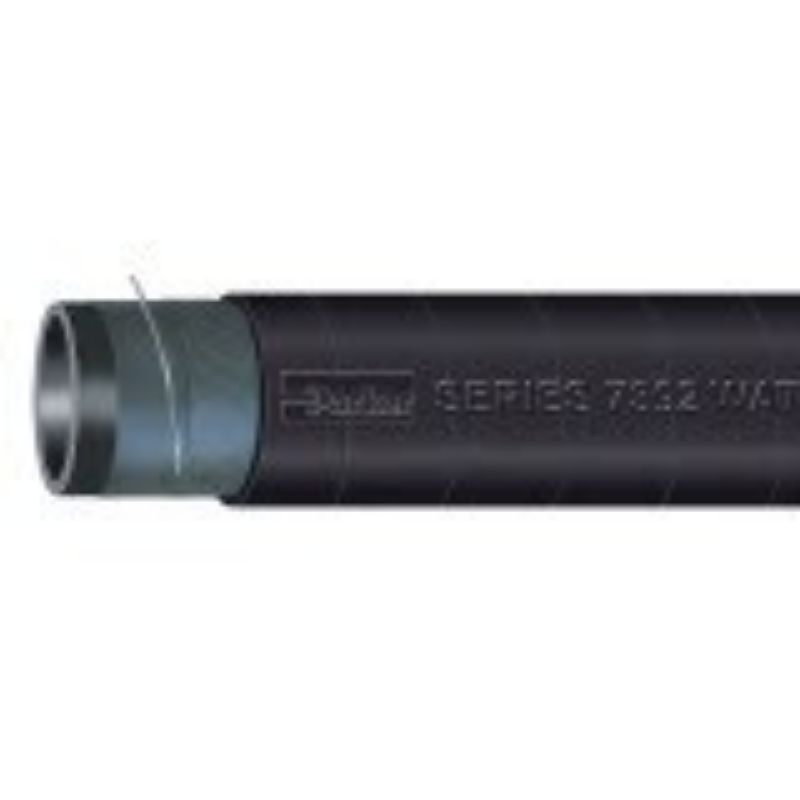

Parker 7392-1500 - Standard Duty Water Suction Hose, Series 7392

Name: Parker 7392-1500 - Standard Duty Water Suction Hose, Series 7392
SKU: 7392-1500
Price: 10.02 USD
Availability: LimitedAvailability

Note: This product is no longer available – please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:

1 Limited Stock

Knoxville, TN

Partner Available:

Quote Required

Brand Parker

Part No. 7392-1500

$10.02

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	FT	Division	Hose Products Division
Minimum Operating Temperature	-40 °C	Design Factor	4:1
Media	Water	Specifications Met	N/A
Maximum Operating Temperature	100 °C	Cover Material	Ethylene Propylene Diene Monomer (EPDM)
Minimum Bend Radius	152 mm	Cover Color	Black
Outside Diameter	49.2 mm	Inside Diameter	1-1/2 inch
Hose Inner Tube Material	Black	Application	Water
Weight	0.83 lb/ft	Vacuum Pressure Rating	737 mm-Hg
Maximum Operating Pressure	6.9 to 19.3 bar	Hose Reinforcement Material	Multiple Plies of Textile with Single or Dual Wire Helix
Hose I.D. (inch)	1-1/2	Standard Package Quantity	100 ft
