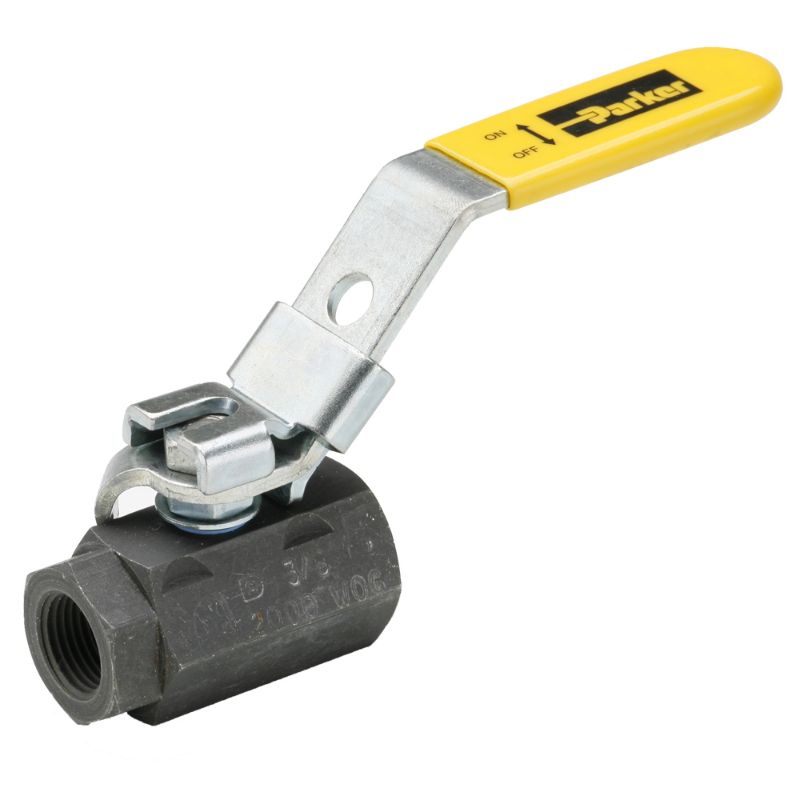

Parker VP500CS-12 - Industrial Ball Valves - Carbon Steel

Name: Parker VP500CS-12 - Industrial Ball Valves - Carbon Steel
SKU: VP500CS-12
Price: 111.96 USD
Availability: InStock

Parker's carbon steel ball valves were designed to offer superior performance for applications that require rugged and reliable performance.

AFP Availability:

6 In Stock

North Chesterfield, VA

Partner Available:

18 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. VP500CS-12

$111.96/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Flow Rate	n/a
Operation Type	n/a	Body Material	Carbon Steel
Mounting Type	Panel	Ball Material	Steel
Specifications Met	n/a	Orifice Size	n/a
Minimum Operating Temperature	-20	Product Type	Ball Valve
Shape	in-line	Seal Material	PTFE
Maximum Operating Pressure	138	Actuation Type	Manual
Connection Size	3/4	Division	Fluid System Connectors Division
Connection Type	NPT, Straight Thread, SAE J1926-1	Maximum Operating Temperature	425
Seat Material	Delrin Molybdenum Disulphide	Configuration	In-Line
Handle Type	Lever	Function	Ball Valve
Style	Female Pipe Ends	Connection 1 Thread Size (inch)	3/4
Maximum Working Pressure (psi)	2000	Connection 2 Thread Size (inch)	3/4
Connection 2 Thread Style	Female Pipe	Locking Mechanism	Padlock
Shape	In Line	Handle	Steel Lever
Connection 1 Thread Style	Female Pipe
