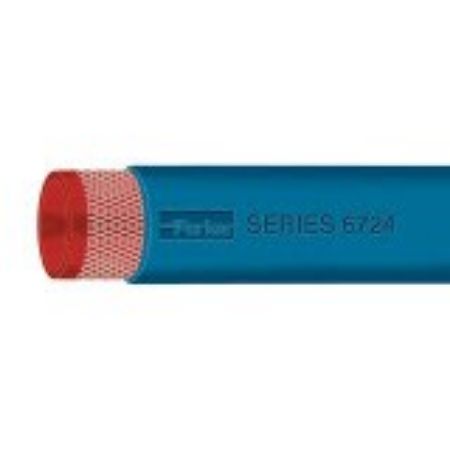

Silicone Extreme High Temperature Heater Hose, Series 6724
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's Series 6724 Silicone Extreme High Temperature Heater Hose provides excellent service across a wide variety of coolants and multiple engine heater and radiator applications. The silicone construction resists chemicals, aging, cold leaks, cracking, delamination, heat, ozone and peeling to maximize performance. The hose is flexible for easy routing and installation, resists the elevated temperatures common to engine compartments and is available in a variety of popular and convenient standard lengths.
Markets:
• General Industrial
• Transportation
Features/Benefits:
• Tube: Red silicone for superior heat resistance to 500°F.
• Reinforcement: Multiple textile plies for strength and kink resistance.
• Cover: Blue silicone for superior temperature resistance and easy identification.
Applications:
- media
• Coolant
• Hot water
- usage
• Coolant transfer in heater and coolant circuits
• DEF systems
• Agricultural equipment
• Buses
• Construction equipment
• Off-road equipment
• Trucks
Industry Standards:
• SAE J20R3 Class A
Safety/Technical:
• Design Factor: 3:1
• Nonconductive
| Action | Part No. | Availability | Partner Available | Price | UOM | Division | Maximum Operating Temperature | Cover Color | Minimum Operating Temperature | Inside Diameter | Media | Outside Diameter | Weight | Maximum Operating Pressure | Application | Cover Material | Cover Structure | Package Type | Specifications Met | Minimum Bend Radius | Minimum Burst Pressure | Hose Inner Tube Material | Hose Reinforcement Material | Hose I.D. (inch) | Standard Pack Qty (ft) | Minimum Burst Pressure (psi) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6724-0250250 | Quote Required | TBD | EA | Hose Products Division | 500 °F | Blue | -65 °F | 6.4 mm | Coolants | 13.4 mm | 0.15 kg/m | n/a | Silicone Coolant | Silicone | Glossy | Carton | SAE J20R3, Class A | 12.7 mm | 250 psi | Brick Red | Multiple Plies of High Temperature Textile | 1/4 | 250 | 250 | ||
| 6724-0375250 | Quote Required | TBD | EA | Hose Products Division | 500 °F | Blue | -53 °C | 3/8 inch | Water | 0.690 inch | 0.19 kg/m | n/a | Engine | Silicone | Glossy | Carton | SAE J20R3, Class A | 0.8 inch | 17.2 bar | Silicone | Multiple Plies of High Temperature Textile | 3/8 | 250 | 250 | ||
| 6724-0500050 | Quote Required | TBD | Hose Products Division | 500 | Blue | -65 | 1/2 | Coolants | 0.820 | 0.17 | 83 | Engine | Silicone | Glossy | Carton | SAE J20R3, Class A | 1.5 | 250 | Brick Red | Multiple Plies of High Temperature Textile | 1/2 | 50 | 250 | |||
| 6724-0500250 | Quote Required | TBD | Hose Products Division | 500 | Blue | -65 | 1/2 | Coolants | 0.820 | 0.17 | 83 | Engine | Silicone | Glossy | Carton | SAE J20R3, Class A | 1.5 | 250 | Brick Red | Multiple Plies of High Temperature Textile | 1/2 | 250 | 250 | |||
| 6724-0625050 | Quote Required | TBD | Hose Products Division | 500 | Blue | -65 | 5/8 | Coolants | 0.940 | 0.24 | 83 | Engine | Silicone | Glossy | Carton | SAE J20R3, Class A | 1.8 | 250 | Brick Red | Multiple Plies of High Temperature Textile | 5/8 | 50 | 250 | |||
| 6724-0625100 | Quote Required | TBD | Hose Products Division | 500 | Blue | -65 | 5/8 | Coolants | 0.940 | 0.24 | 83 | Engine | Silicone | Glossy | Carton | SAE J20R3, Class A | 1.8 | 250 | Brick Red | Multiple Plies of High Temperature Textile | 5/8 | 100 | 250 | |||
| 6724-0625250 | Quote Required | TBD | Hose Products Division | 500 | Blue | -65 | 5/8 | Coolants | 0.940 | 0.24 | 83 | Engine | Silicone | Glossy | Carton | SAE J20R3, Class A | 1.8 | 250 | Brick Red | Multiple Plies of High Temperature Textile | 5/8 | 250 | 250 | |||
| 6724-0750050 | Quote Required | TBD | Hose Products Division | 500 | Blue | -65 | 3/4 | Coolants | 1.070 | 0.26 | 67 | Engine | Silicone | Glossy | Carton | SAE J20R3, Class A | 2.8 | 200 | Brick Red | Multiple Plies of High Temperature Textile | 3/4 | 50 | 200 | |||
| 6724-0750100 | Quote Required | TBD | Hose Products Division | 500 | Blue | -65 | 3/4 | Coolants | 1.070 | 0.26 | 67 | Engine | Silicone | Glossy | Carton | SAE J20R3, Class A | 2.8 | 200 | Brick Red | Multiple Plies of High Temperature Textile | 3/4 | 100 | 200 | |||
| 6724-0875100 | Quote Required | TBD | Hose Products Division | 500 | Blue | -65 | 7/8 | Coolants | 1.190 | 0.28 | 58 | Engine | Silicone | Glossy | Carton | SAE J20R3, Class A | 4.3 | 175 | Brick Red | Multiple Plies of High Temperature Textile | 7/8 | 100 | 175 | |||
| 6724-1000050 | Quote Required | TBD | Hose Products Division | 500 | Blue | -65 | 1 | Coolants | 1.340 | 0.34 | 58 | Engine | Silicone | Glossy | Carton | SAE J20R3, Class A | 5 | 175 | Brick Red | Multiple Plies of High Temperature Textile | 1 | 50 | 175 | |||
| 6724-1000100 | Quote Required | TBD | Hose Products Division | 500 | Blue | -65 | 1 | Coolants | 1.340 | 0.34 | 58 | Engine | Silicone | Glossy | Carton | SAE J20R3, Class A | 5 | 175 | Brick Red | Multiple Plies of High Temperature Textile | 1 | 100 | 175 |
