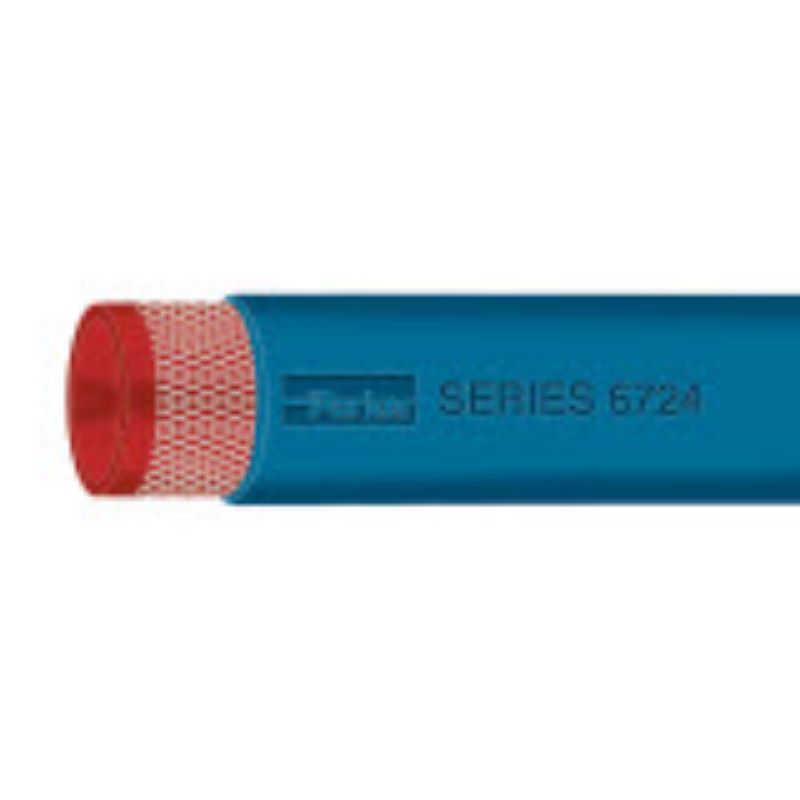

Parker 6724-0375250 - Silicone Extreme High Temperature Heater Hose, Series 6724

Silicone Extreme High Temperature Heater Hose is designed for use in heater and radiator systems in heavy duty/high capacity vehicles and industrial equipment in applications to 500°F and 83 psi, Series 6724

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 6724-0375250

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Hose Products Division
Maximum Operating Temperature	500 °F	Media	Water
Inside Diameter	3/8 inch	Cover Color	Blue
Minimum Operating Temperature	-53 °C	Application	Engine
Maximum Operating Pressure	n/a	Outside Diameter	0.690 inch
Weight	0.19 kg/m	Cover Material	Silicone
Cover Structure	Glossy	Hose Inner Tube Material	Silicone
Package Type	Carton	Specifications Met	SAE J20R3, Class A
Minimum Bend Radius	0.8 inch	Minimum Burst Pressure	17.2 bar
Hose Reinforcement Material	Multiple Plies of High Temperature Textile	Hose I.D. (inch)	3/8
Standard Pack Qty (ft)	250	Minimum Burst Pressure (psi)	250

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
