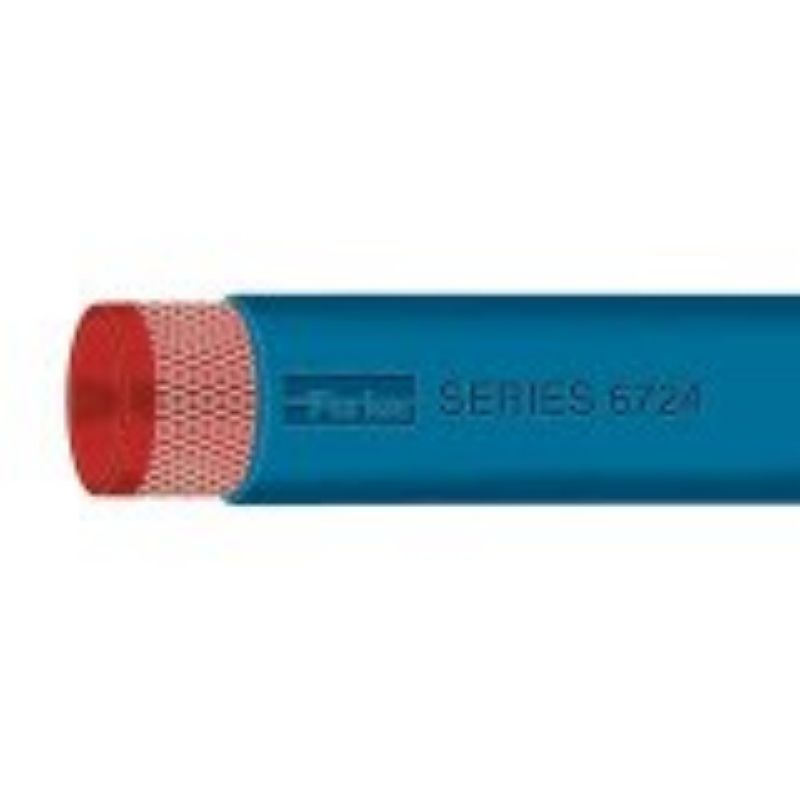

Parker 6724-0250250 - Silicone Extreme High Temperature Heater Hose, Series 6724

Silicone Extreme High Temperature Heater Hose is designed for use in heater and radiator systems in heavy duty/high capacity vehicles and industrial equipment in applications to 500°F and 83 psi, Series 6724

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 6724-0250250

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Hose Products Division
Maximum Operating Temperature	500 °F	Cover Color	Blue
Minimum Operating Temperature	-65 °F	Inside Diameter	6.4 mm
Media	Coolants	Outside Diameter	13.4 mm
Weight	0.15 kg/m	Maximum Operating Pressure	n/a
Application	Silicone Coolant	Cover Material	Silicone
Cover Structure	Glossy	Package Type	Carton
Specifications Met	SAE J20R3, Class A	Minimum Bend Radius	12.7 mm
Minimum Burst Pressure	250 psi	Hose Inner Tube Material	Brick Red
Hose Reinforcement Material	Multiple Plies of High Temperature Textile	Hose I.D. (inch)	1/4
Standard Pack Qty (ft)	250	Minimum Burst Pressure (psi)	250

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
