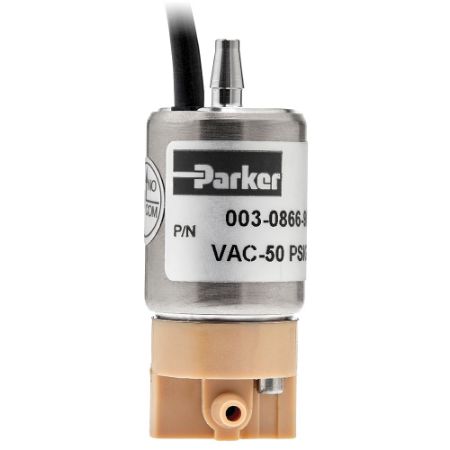

Series 3 – Miniature Inert Liquid Valve
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
AFP Industries stocks this Parker series for quote or purchase, with interchange support and southeast warehouse availability.
The Series 3 solenoid valve is constructed of inert materials suitable for liquids including bleach and saline, for applications in analytical chemistry, clinical diagnostics and ink jet printing. These 2-Way and 3-Way valves handle high flow in a small valve with pressures up to 100 psi and no metal-to-metal sliding surfaces, ensuring a long life and trouble free operation. The series 3 valve also offers a pressure rating that exceeds most diaphragm isolation valves. A unique and time-proven design ensures that fluids are contained within the valve, preventing damage to other components.
Markets:
• Clinical Diagnostics
• Analytical Chemistry
Features/Benefits
• Wetted parts are inert plastic (PEEK, PTFE), stainless steel, and elastomer (FKM or EPDM)
• Chemically resistant to moderate acids, bases, bleach, and saline
• Leak safe design ensures that fluids are contained within the valve preventing damage to the other components in
the instrument
• High flow in small package while providing fast cycle times
• Resistant to crystallization and particulates
• No sliding metal-to-metal surfaces minimizes wear of moving parts
• Direct-acting design does not require pressure or vacuum to operate
• RoHS compliant
Applications:
• Control of bleach, reagents, inks, and other aggressive media
• Wash solutions
• Waste removal
| Action | Part No. | Availability | Partner Available | Price | UOM | UOM | Material | End 1 | Pkg Qty | Pkg Qty/UOM | Inner Diameter | Inch/Metric | Parker Division | Material | Inner Diameter Inch/mm | Trade Name | Parker Group | End 1 | Series | Configuration Type | Hose Connection Type | End 1 Type | Inner Diameter |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 13755-10-8 | 1 Limited Stock | Quote Required | $17.97/each | EA | EA | Steel | 5/8 Inch | 5 | 5 EA | 0.5 Inch | Inch | Parflex | Steel | Inch | Parkrimp | Fluid Connector | 5/8 Inch | 55 | Female JIC 37° - Swivel - 45° Elbow - Short Drop | Permanent | Inch | 0.5 Inch | |
| 13755-12-12 | 1 Limited Stock | 5 In Stock | $15.32/each | EA | EA | Steel | 3/4 Inch | 5 | 5 EA | 0.75 Inch | Inch | Parflex | Steel | Inch | Parkrimp | Fluid Connector | 3/4 Inch | 55 | Female JIC 37° - Swivel - 45° Elbow - Short Drop | Permanent | Inch | 0.75 Inch | |
| 13755-4-4 | 1 Limited Stock | 2 Limited Stock | $16.58/each | EA | EA | Steel | 1/4 Inch | 5 | 5 EA | 0.25 Inch | Inch | Parflex | Steel | Inch | Parkrimp | Fluid Connector | 1/4 Inch | 55 | Female JIC 37° - Swivel - 45° Elbow - Short Drop | Permanent | Inch | 0.25 Inch | |
| 13755-6-6 | 9 In Stock | Quote Required | $21.62/each | EA | EA | Steel | 3/8 Inch | 5 | 5 EA | 0.375 Inch | Inch | Parflex | Steel | Inch | Parkrimp | Fluid Connector | 3/8 Inch | 55 | Female JIC 37° - Swivel - 45° Elbow - Short Drop | Permanent | Inch | 0.375 Inch | |
| 13755-8-8 | Quote Required | 48 In Stock | $27.48/each | EA | EA | Steel | 1/2 Inch | 5 | 5 EA | 0.5 Inch | Inch | Parflex | Steel | Inch | Parkrimp | Fluid Connector | 1/2 Inch | 55 | Female JIC 37° - Swivel - 45° Elbow - Short Drop | Permanent | Inch | 0.5 Inch |
