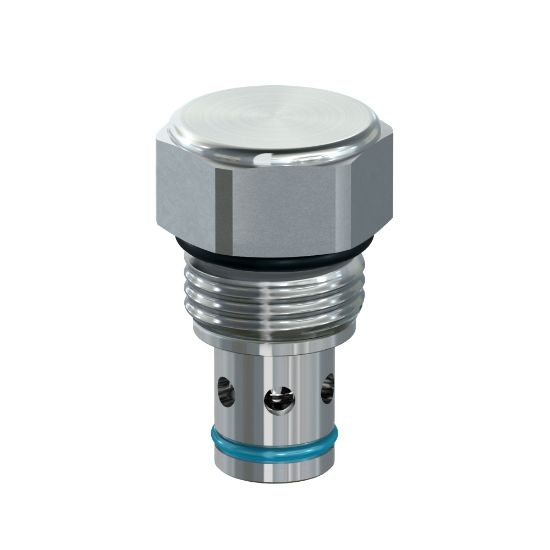

Picture of Parker CVH081P30 - Standard Check Valves

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker CVH081P30 - Standard Check Valves

Capable of flows from 3.5 to 303 lpm (0.9 to 80 gpm) and pressure as high as 420 bar (6,000 psi), Parker’s poppet and ball style check valves have a simple and robust design which are used to block flow in one direction, and allow flow in the opposite.
Availability:
Quote Required
Partner Available:25 In Stock
Brand Parker
Part No. CVH081P30
$15.38
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAFlow Raten/a
Body Materialn/aDivisionHydraulic Cartridge Systems Division
DivisionHydraulic Systems DivisionFor Fluid TypeMineral-based Hydraulic Fluids
Valve MaterialSteelFilter Efficiency RatingISO 4406 18/16/13
Maximum Kinematic Viscosity45-2000 SSU (6 to 420 cSt)Minimum Operating Temperature-37 °C
Maximum Operating Temperature93 °CWeight0.1 kg
Maximum Operating Pressure350 barActuation TypePressure Sensing
Cavity SizeC08-2Maximum Inlet Pressure Rating5000 psi
Operating Temperature-35 to 200 °FSeal MaterialD-Ring (Standard)
Maximum Flow Rate10 Gal/minCracking Pressure2.1 bar
Leak Rate2Flow Direction2-1 Checked
FunctionStandard CheckInstallation Torque32 to 36 lb-ft
Seal MaterialD-Ring (Standard)Cracking Pressure30 PSI, 2.1 BAR
Maximum Flow Rate10 GAL/MIN, 38 L/MIN
