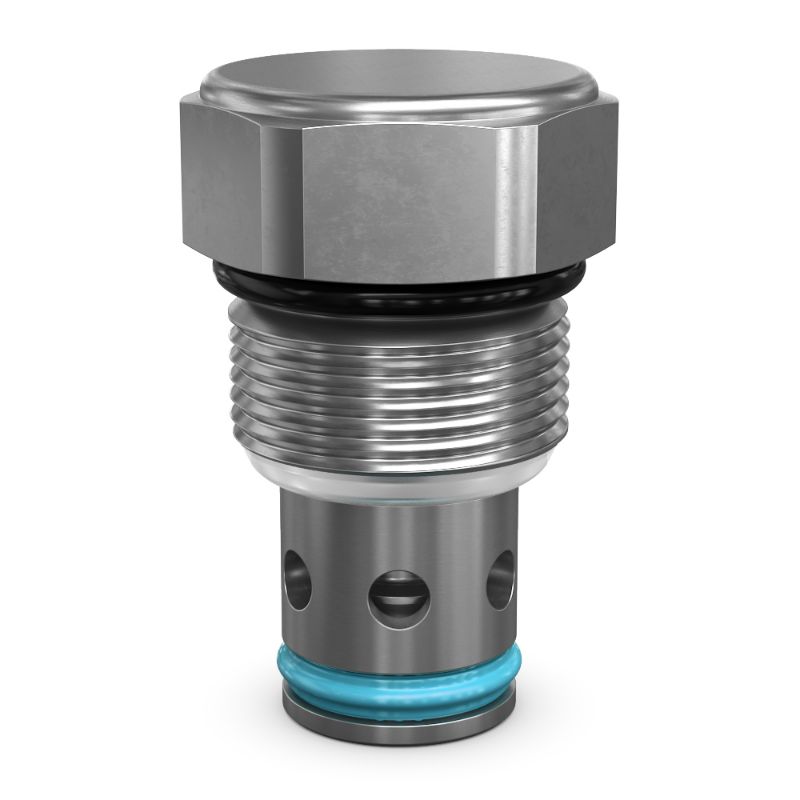

Parker CVH103P100 - Standard Check Valves

Capable of flows from 3.5 to 303 lpm (0.9 to 80 gpm) and pressure as high as 420 bar (6,000 psi), Parker’s poppet and ball style check valves have a simple and robust design which are used to block flow in one direction, and allow flow in the opposite.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. CVH103P100

$22.75/each

Products specifications

Attribute name	Attribute value
Leak Rate	2	Cavity Size	C10-2
Maximum Operating Temperature	200 °F	Division	Hydraulic Cartridge Systems Division
Division	Hydraulic Systems Division	Operating Temperature	-37 to 93 °C
Installation Torque	69 to 75 Nm	Minimum Operating Temperature	-37 °C
Body Material	n/a	Maximum Flow Rate	60 L/min
Seal Material	D-Ring (Standard)	Actuation Type	Pressure Sensing
Weight	0.2 lb	Maximum Operating Pressure	5000 psi
Flow Rate	n/a	For Fluid Type	Mineral-based Hydraulic Fluids
Function	Standard Check	Flow Direction	2-1 Checked
Maximum Inlet Pressure Rating	350 bar	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Valve Material	Hardened Steel	Filter Efficiency Rating	ISO 4406 18/16/13
Cracking Pressure	100 psi	Seal Material	D-Ring (Standard)
Cracking Pressure	100 PSI, 6.9 BAR	Maximum Flow Rate	16 GAL/MIN, 60 L/MIN
