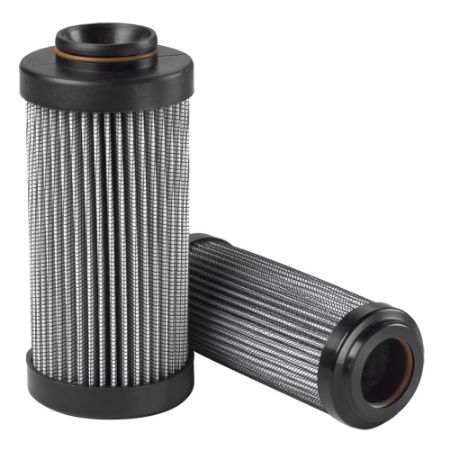

Replacement Elements - High Pressure 15P-30P-30PD Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
The Parker 15P-30P-30P Series is a high pressure filter designed with the latest filtration technology.
Using the Parker 15P-30P-30P Series replacement elements guarantees Parker's quality of filtration, directly impacting the fluid cleanliness levels. Using aftermarket filters with unknown media quality may save initial cost, but can increase overall costs by requiring more element change outs and potentially causing system downtime. Protect your investment by always buying genuine Parker replacement elements.
Available in Single and Double lengths and are available with optional levels of high collapse (2000 psid and 3000 psid) several micron ratings (2, 5, 10, and 20), these replacement elements ensure the quality of filtration Parker is known for. For ordering, please refer to the “How to Order” section of the literature or contact a Parker Representative.
Read More...Using the Parker 15P-30P-30P Series replacement elements guarantees Parker's quality of filtration, directly impacting the fluid cleanliness levels. Using aftermarket filters with unknown media quality may save initial cost, but can increase overall costs by requiring more element change outs and potentially causing system downtime. Protect your investment by always buying genuine Parker replacement elements.
Available in Single and Double lengths and are available with optional levels of high collapse (2000 psid and 3000 psid) several micron ratings (2, 5, 10, and 20), these replacement elements ensure the quality of filtration Parker is known for. For ordering, please refer to the “How to Order” section of the literature or contact a Parker Representative.
| Action | Part No. | Availability | Partner Available | Price | UOM | UOM | Diameter | Filter Element Type | Division | Cartridge Length | Product Type | For Fluid Type | Micron Rating | Compatible Series | Seal Material | Length | Collapse Pressure (bar) | Pkg Qty | Seals | Collapse Pressure (psi) | Efficiency βx(C) ≥ 200 | Media Type | Media Type | Inner Support Cylinder Material | Parker Group | Seals | D Dimension | Media Composition Detail | B Dimension | Collapse Pressure (psi) | Series | Efficiency βx(C) ≥ 200 | Glue Side Seam Adhesive | E Dimension | Top Endcap Material | Collapse Pressure (bar) | Media | Bottom Endcap Material | Glue Endcaps Adhesive | A Dimension | Parker Division | H Dimension | Competitor | Efficiency βx(C) ≥ 1000 | Media | Efficiency βx(C) ≥ 1000 | Element Length | Filter Media Code | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 925570 | Quote Required | $207.67/each | EA | 45.0 mm | Cartridge | Engine Mobile Hydraulic and Fuel Filtration Division | 114.3 mm | Hydraulic Filter | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 74 Wiremesh | 15P | Fluorocarbon | single | ||||||||||||||||||||||||||||||||||||
| 925572 | 3 In Stock | Quote Required | $210.60/each | EA | EA | 45.0 mm | Cartridge | Engine Mobile Hydraulic and Fuel Filtration Division | 114.3 mm | Hydraulic Filter | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 40 wiremesh | 15P | Fluorocarbon | single | 24.1 bar | 1 | FKM: Fluorocarbon | 350 psi | 40 (nominal) µ | Stainless steel mesh | Stainless steel mesh | Steel tin plated (wrapped) | Filtration | FKM: Fluorocarbon | 1.772 in (45 mm) | Single layer stainless steel mesh | 1 in (25.4 mm) | 350 psi | ParFit | 40 (nominal) µ | Weld | 4.5 in (114.3 mm) | Glass reinforced nylon | 24.1 bar | 40 Micron Nominal | Glass reinforced nylon | Epoxy | 1.772 in (45 mm) | Hydraulic Filter | |||||||||
| 925586 | Quote Required | $258.62/each | EA | 45.0 mm | Cartridge | Engine Mobile Hydraulic and Fuel Filtration Division | 8.2 inch | Hydraulic Filter | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 238 Wiremesh | 15P | Fluorocarbon | double | ||||||||||||||||||||||||||||||||||||
| 925832 | Quote Required | 1 Limited Stock | TBD | EA | EA | 2.44 | Cartridge | Engine Mobile Hydraulic and Fuel Filtration Division | 9.2 | Hydraulic Filter | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 25 wiremesh | 30P/30PD | Fluorocarbon | double | 24.1 bar | 1 | FKM: Fluorocarbon | 350 psi | 25 (nominal) µ | Stainless steel mesh | Stainless steel mesh | Steel tin plated | Filtration | FKM: Fluorocarbon | 2.441 in (62 mm) | Multilayer stainless steel wire mesh | 350 psi | ParFit | 25 (nominal) µ | Weld | 9.201 in (233.7 mm) | Glass reinforced nylon | 24.1 bar | 25 Micron Nominal | Glass reinforced nylon | Epoxy | 2.441 in (62 mm) | Hydraulic Filter | 1.429 in (36.3 mm) | |||||||||
| 925834 | Quote Required | 30 In Stock | $140.43/each | EA | 2.44 inch | Cartridge | Engine Mobile Hydraulic and Fuel Filtration Division | 233.7 mm | Hydraulic Filter | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 20C Cellulose | 30P/30PD | Fluorocarbon | double | |||||||||||||||||||||||||||||||||||
| 925835 | 8 In Stock | 1 Limited Stock | $132.45/each | EA | EA | 2.44 inch | Cartridge | Engine Mobile Hydraulic and Fuel Filtration Division | 9.2 inch | Hydraulic Filter | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 10C Cellulose | 30P/30PD | Fluorocarbon | double | 24.1 bar | 1 | FKM: Fluorocarbon | 350 psi | 10 (nominal) µ | Cellulose (Paper) | Cellulose (Paper) | Steel tin plated | Filtration | FKM: Fluorocarbon | 2.441 in (62 mm) | Single layer cellulose (paper) | 350 psi | ParFit | 10 (nominal) µ | Epoxy | 9.201 in (233.7 mm) | Glass reinforced nylon | 24.1 bar | 10 Micron Nominal | Glass reinforced nylon | Epoxy | 2.441 in (62 mm) | Hydraulic Filter | 1.429 in (36.3 mm) | FILTREC | ||||||||
| 927694Q | Quote Required | 33 In Stock | $259.69/each | EA | EA | 1.77 inch | Cartridge | Engine Mobile Hydraulic and Fuel Filtration Division | 208.3 mm | Hydraulic Filter | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 20Q microglass high collapse 3000 psid | 15P | Fluorocarbon | double | 207 bar | 1 | FKM: Fluorocarbon | 3000 psi | 16 µ | Microglass | Microglass | Steel tin plated (wrapped) | Filtration | FKM: Fluorocarbon | 1.772 in (45 mm) | Multilayer fiberglass with coated mesh on the inflow side and stainless steel mesh on the outlet sid | 1 in (25.4 mm) | 3000 psi | ParFit | 16 µ | Epoxy | 1.114 in (28.3 mm) | Steel zinc plated | 207 bar | 20 Micron Absolute | Steel zinc plated | Epoxy | 1.772 in (45 mm) | Hydraulic Filter | GFK | 20 µ | 20 Micron Absolute | 20 µ | |||||
| 928213 | Quote Required | 9 In Stock | $295.59/each | EA | 45.0 mm | Cartridge | Engine Mobile Hydraulic and Fuel Filtration Division | 208.3 mm | Hydraulic Filter | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 74 Wiremesh high collapse | 15P | Fluorocarbon | double | |||||||||||||||||||||||||||||||||||
| 930369Q | 25 In Stock | 84 In Stock | $56.10/each | EA | EA | 45.0 mm | Cartridge | Engine Mobile Hydraulic and Fuel Filtration Division | 114.3 mm | Hydraulic Filter | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 20Q Microglass | 15P | Fluorocarbon | single | 24.1 bar | 1 | FKM: Fluorocarbon | 350 psi | 16 µ | Microglass | Microglass | Mild steel tin plated | Filtration | FKM: Fluorocarbon | 1.772 in (45 mm) | Multilayer fiberglass with epoxy coated mesh on both sides | 1 in (25.4 mm) | 350 psi | ParFit | 16 µ | Epoxy | 4.5 in (114.3 mm) | Glass reinforced nylon | 24.1 bar | 20 Micron Absolute | Glass reinforced nylon | Epoxy | 1.772 in (45 mm) | Hydraulic Filter | TAISEI KOGYO | 20 µ | 20 Micron Absolute | 20 µ | Single | 20Q | -40F to 225F (-40C to 107C) | ||
| 930370Q | 6 In Stock | 59 In Stock | $70.98/each | EA | EA | 45.0 mm | Cartridge | Engine Mobile Hydraulic and Fuel Filtration Division | 208.3 mm | Hydraulic Filter | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 20Q Microglass | 15P | Fluorocarbon | double | 24.1 bar | 1 | FKM: Fluorocarbon | 350 psi | 16 µ | Microglass | Microglass | Mild steel tin plated | Filtration | FKM: Fluorocarbon | 1.772 in (45 mm) | Multilayer fiberglass with epoxy coated mesh on both sides | 1 in (25.4 mm) | 350 psi | ParFit | 16 µ | Epoxy | 1.102 in (28 mm) | Glass reinforced nylon | 24.1 bar | 20 Micron Absolute | Glass reinforced nylon | Epoxy | 1.772 in (45 mm) | Hydraulic Filter | 20 µ | 20 Micron Absolute | 20 µ | Double | 20Q | -40F to 225F (-40C to 107C) | |||
| 930544Q | Quote Required | $216.25/each | EA | EA | 1.77 inch | Cartridge | Engine Mobile Hydraulic and Fuel Filtration Division | 208.3 mm | Hydraulic Filter | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 20Q microglass high collapse 2000 psid | 15P | Fluorocarbon | double | 138 bar | 1 | FKM: Fluorocarbon | 2000 psi | 16 µ | Microglass | Microglass | Mild steel tin plated (wrapped) | Filtration | FKM: Fluorocarbon | 1.772 in (45 mm) | Multilayer fiberglass with coated mesh on the inflow side and stainless steel mesh on the outlet sid | 1 in (25.4 mm) | 2000 psi | ParFit | 16 µ | Epoxy | 1.102 in (28 mm) | Steel zinc plated | 138 bar | 20 Micron Absolute | Steel zinc plated | Epoxy | 1.772 in (45 mm) | Hydraulic Filter | VICKERS | 20 µ | 20 Micron Absolute | 20 µ | Double | 20QH | -40F to 225F (-40C to 107C) | |||
| 931984Q | Quote Required | 19 In Stock | $83.21/each | EA | EA | 45.0 mm | Cartridge | Engine Mobile Hydraulic and Fuel Filtration Division | 4.5 inch | Hydraulic Filter | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 10Q microglass high collapse 3000 psid | 15P | neoprene | single | 24.1 bar | 1 | CR: Neoprene | 350 psi | 5 µ | Microglass | Microglass | Steel tin plated | Filtration | CR: Neoprene | 1.772 in (45 mm) | Multilayer fiberglass with epoxy coated mesh on both sides | 1 in (25.4 mm) | 350 psi | ParFit | 5 µ | Epoxy | 4.5 in (114.3 mm) | Glass reinforced nylon | 24.1 bar | 5 Micron Absolute | Glass reinforced nylon | Epoxy | 1.772 in (45 mm) | Hydraulic Filter | 7 µ | 5 Micron Absolute | 7 µ | ||||||
| 932610Q | Quote Required | 89 In Stock | $74.46/each | EA | EA | 1.77 inch | Cartridge | Engine Mobile Hydraulic and Fuel Filtration Division | 114.3 mm | Hydraulic Filter | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 02Q Microglass | 15P | Fluorocarbon | single | 24.1 bar | 1 | FKM: Fluorocarbon | 350 psi | 4 µ | Microglass | Microglass | Mild steel tin plated | Filtration | FKM: Fluorocarbon | 1.772 in (45 mm) | Multilayer fiberglass with epoxy coated mesh on both sides | 1 in (25.4 mm) | 350 psi | ParFit | 4 µ | Epoxy | 4.5 in (114.3 mm) | Glass reinforced nylon | 24.1 bar | 2 Micron Absolute | Glass reinforced nylon | Epoxy | 1.772 in (45 mm) | Hydraulic Filter | PARKER | 5 µ | 2 Micron Absolute | 5 µ | Single | 02Q | -40F to 225F (-40C to 107C) | ||
| 932611Q | 15 In Stock | 56 In Stock | $68.49/each | EA | EA | 45.0 mm | Cartridge | Engine Mobile Hydraulic and Fuel Filtration Division | 114.3 mm | Hydraulic Filter | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 05Q Microglass | 15P | Fluorocarbon | single | 24.1 bar | 1 | FKM: Fluorocarbon | 350 psi | 5 µ | Microglass | Microglass | Mild steel tin plated | Filtration | FKM: Fluorocarbon | 1.772 in (45 mm) | Multilayer fiberglass with epoxy coated mesh on both sides | 1 in (25.4 mm) | 350 psi | ParFit | 5 µ | Epoxy | 4.5 in (114.3 mm) | Glass reinforced nylon | 24.1 bar | 5 Micron Absolute | Glass reinforced nylon | Epoxy | 1.772 in (45 mm) | Hydraulic Filter | 7 µ | 5 Micron Absolute | 7 µ | Single | 05Q | -40F to 225F (-40C to 107C) | |||
| 932612Q | 23 In Stock | 263 In Stock | $64.35/each | EA | EA | 45.0 mm | Cartridge | Engine Mobile Hydraulic and Fuel Filtration Division | 4.5 inch | Hydraulic Filter | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 10Q Microglass | 15P | Fluorocarbon | single | 24.1 bar | 1 | FKM: Fluorocarbon | 350 psi | 9 µ | Microglass | Microglass | Mild steel tin plated | Filtration | FKM: Fluorocarbon | 1.772 in (45 mm) | Multilayer fiberglass with epoxy coated mesh on both sides | 1 in (25.4 mm) | 350 psi | ParFit | 9 µ | Epoxy | 4.5 in (114.3 mm) | Glass reinforced nylon | 24.1 bar | 10 Micron Absolute | Glass reinforced nylon | Epoxy | 1.772 in (45 mm) | Hydraulic Filter | PARKER | 12 µ | 10 Micron Absolute | 12 µ | Single | 10Q | -40F to 225F (-40C to 107C) | ||
| 932613Q | Quote Required | 34 In Stock | $156.49/each | EA | EA | 45.0 mm | Cartridge | Engine Mobile Hydraulic and Fuel Filtration Division | 4.5 inch | Hydraulic Filter | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 02Q microglass high collapse 2000 psid | 15P | Fluorocarbon | single | 138 bar | 1 | FKM: Fluorocarbon | 2000 psi | 4 µ | Microglass | Microglass | Mild steel tin plated (wrapped) | Filtration | FKM: Fluorocarbon | 1.772 in (45 mm) | Multilayer fiberglass with coated mesh on the inflow side and stainless steel mesh on the outlet sid | 1 in (25.4 mm) | 2000 psi | ParFit | 4 µ | Epoxy | 4.5 in (114.3 mm) | Steel zinc plated | 138 bar | 2 Micron Absolute | Steel zinc plated | Epoxy | 1.772 in (45 mm) | Hydraulic Filter | PARKER | 5 µ | 2 Micron Absolute | 5 µ | Single | 02QH | -40F to 225F (-40C to 107C) | ||
| 932614Q | Quote Required | 39 In Stock | $147.60/each | EA | EA | 1.77 inch | Cartridge | Engine Mobile Hydraulic and Fuel Filtration Division | 114.3 mm | Hydraulic Filter | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 05Q microglass high collapse 2000 psid | 15P | Fluorocarbon | single | 138 bar | 1 | FKM: Fluorocarbon | 2000 psi | 5 µ | Microglass | Microglass | Mild steel tin plated (wrapped) | Filtration | FKM: Fluorocarbon | 1.772 in (45 mm) | Multilayer fiberglass with coated mesh on the inflow side and stainless steel mesh on the outlet sid | 1 in (25.4 mm) | 2000 psi | ParFit | 5 µ | Epoxy | 4.5 in (114.3 mm) | Steel zinc plated | 138 bar | 5 Micron Absolute | Steel zinc plated | Epoxy | 1.772 in (45 mm) | Hydraulic Filter | 7 µ | 5 Micron Absolute | 7 µ | Single | 05QH | -40F to 225F (-40C to 107C) | |||
| 932615Q | Quote Required | 38 In Stock | $143.51/each | EA | EA | 45.0 mm | Cartridge | Engine Mobile Hydraulic and Fuel Filtration Division | 114.3 mm | Hydraulic Filter | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 10Q microglass high collapse 2000 psid | 15P | Fluorocarbon | single | 138 bar | 1 | FKM: Fluorocarbon | 2000 psi | 10 µ | Microglass | Microglass | Mild steel tin plated (wrapped) | Filtration | FKM: Fluorocarbon | 1.772 in (45 mm) | Multilayer fiberglass with coated mesh on the inflow side and stainless steel mesh on the outlet sid | 1 in (25.4 mm) | 2000 psi | ParFit | 10 µ | Epoxy | 4.5 in (114.3 mm) | Steel zinc plated | 138 bar | 10 Micron Absolute | Steel zinc plated | Epoxy | 1.772 in (45 mm) | Hydraulic Filter | 12 µ | 10 Micron Absolute | 12 µ | Single | 10QH | -40F to 225F (-40C to 107C) | |||
| 932616Q | 1 Limited Stock | 18 In Stock | $96.71/each | EA | EA | 45.0 mm | Cartridge | Engine Mobile Hydraulic and Fuel Filtration Division | 208.3 mm | Hydraulic Filter | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 02Q Microglass | 15P | Fluorocarbon | double | 24.1 bar | 1 | FKM: Fluorocarbon | 350 psi | 4 µ | Microglass | Microglass | Mild steel tin plated | Filtration | FKM: Fluorocarbon | 1.772 in (45 mm) | Multilayer fiberglass with epoxy coated mesh on both sides | 1 in (25.4 mm) | 350 psi | ParFit | 4 µ | Epoxy | 1.102 in (28 mm) | Glass reinforced nylon | 24.1 bar | 2 Micron Absolute | Glass reinforced nylon | Epoxy | 1.772 in (45 mm) | Hydraulic Filter | PARKER | 5 µ | 2 Micron Absolute | 5 µ | Double | 02Q | -40F to 225F (-40C to 107C) | ||
| 932617Q | 11 In Stock | 9 In Stock | $87.35/each | EA | EA | 1.77 inch | Cartridge | Engine Mobile Hydraulic and Fuel Filtration Division | 208.3 mm | Hydraulic Filter | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 05Q Microglass | 15P | Fluorocarbon | double | 24.1 bar | 1 | FKM: Fluorocarbon | 350 psi | 5 µ | Microglass | Microglass | Mild steel tin plated | Filtration | FKM: Fluorocarbon | 1.772 in (45 mm) | Multilayer fiberglass with epoxy coated mesh on both sides | 1 in (25.4 mm) | 350 psi | ParFit | 5 µ | Epoxy | 1.102 in (28 mm) | Glass reinforced nylon | 24.1 bar | 5 Micron Absolute | Glass reinforced nylon | Epoxy | 1.772 in (45 mm) | Hydraulic Filter | PARKER | 7 µ | 5 Micron Absolute | 7 µ | Double | 05Q | -40F to 225F (-40C to 107C) |
