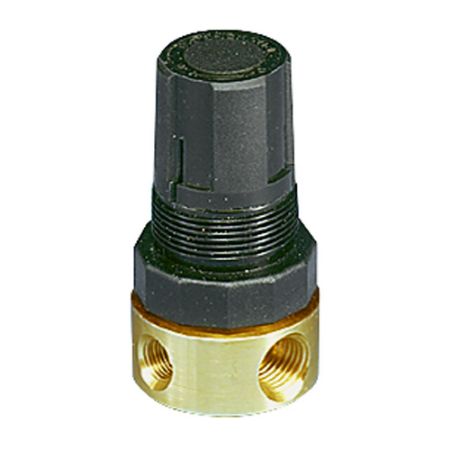

Relief Valves - 134 Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
The 134 series is a diaphragm type relief valve that relieves excess pressure, thus protecting the pneumatic circuit or system. This compact, sensitive diaphragm-type relief valve can be used where gradual proportional relief is required. It contains a top adjustment knob that adjusts relief range, same as a miniature regulator. There are four spring ranges (0-15, 0-25, 0-50 and 0-100 PSIG) available. The 134 has a brass body with captured exhaust and is an inline type unit with 3 inlet ports and 1 outlet port.
Markets:
• Factory Automation
• Heavy Industries
Features/Benefits:
• Compact design saves space
• Top adjustment knob
• Durable brass body
• Protects pneumatic circuit or system
Applications:
• Industrial environment
• General pneumatic assembly
| Action | Part No. | Availability | Partner Available | Price | UOM | Division | Body Material | Adjustment Mechanism | Operating Temperature | Pressure Relief Setting | Adjustment Screw Material | Maximum Inlet Pressure Rating | Port Size | Port Type | Available Accessories | Pressure Relief Setting (psig) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 134-02A | Quote Required | $36.34 | EA | Pneumatic Division | Brass | Polypropylene Push-Pull Locking Knob | +4° to +49° °C | 0 to 6.9 barg | Zinc Plated Steel Adjusting Screw and Spring | 300 psig | Inlet Port 1/8" and 1/4", Outlet Port 1/4" | 3 Female Inlet Ports, and 1 outlet port<br>NPT │ BSPP | W/O panel mount nut | 0-25 | ||
| 134-02AA | Quote Required | TBD | Pneumatic Division | Brass | Polypropylene Push-Pull Locking Knob | +4° to +49° °C | 0 to 100 psig | Zinc Plated Steel Adjusting Screw and Spring | 20.7 barg | Inlet Port 1/8" and 1/4", Outlet Port 1/4" | 3 Female Inlet Ports, and 1 outlet port<br>NPT │ BSPP | W/O panel mount nut | 0-15 | |||
| 134-02AAP | Quote Required | $42.25 | EA | Pneumatic Division | Brass | Polypropylene Push-Pull Locking Knob | +4° to +49° °C | 0 to 100 psig | Zinc Plated Steel Adjusting Screw and Spring | 20.7 barg | Inlet Port 1/8" and 1/4", Outlet Port 1/4" | 3 Female Inlet Ports, and 1 outlet port<br>NPT │ BSPP | With panel mount nut | 0-15 | ||
| 134-02AP | Quote Required | $39.12 | EA | Pneumatic Division | Brass | Polypropylene Push-Pull Locking Knob | +4° to +49° °C | 0 to 6.9 barg | Zinc Plated Steel Adjusting Screw and Spring | 300 psig | Inlet Port 1/8" and 1/4", Outlet Port 1/4" | 3 Female Inlet Ports, and 1 outlet port<br>NPT │ BSPP | With panel mount nut | 0-25 | ||
| 134-02B | Quote Required | $36.34 | EA | Pneumatic Division | Brass | Polypropylene Push-Pull Locking Knob | +40° to +120° °F | 0 to 100 psig | Zinc Plated Steel Adjusting Screw and Spring | 20.7 barg | Inlet Port 1/8" and 1/4", Outlet Port 1/4" | 3 Female Inlet Ports, and 1 outlet port<br>NPT │ BSPP | W/O panel mount nut | 0-50 | ||
| 134-02BP | Quote Required | $39.12 | EA | Pneumatic Division | Brass | Polypropylene Push-Pull Locking Knob | +40° to +120° °F | 0 to 6.9 barg | Zinc Plated Steel Adjusting Screw and Spring | 300 psig | Inlet Port 1/8" and 1/4", Outlet Port 1/4" | 3 Female Inlet Ports, and 1 outlet port<br>NPT │ BSPP | With panel mount nut | 0-50 | ||
| 134-02C | Quote Required | $36.34 | EA | Pneumatic Division | Brass | Polypropylene Push-Pull Locking Knob | 40 to 120 | 0 to 100 | Steel, Zinc-plated (adjusting screw and spring) | 300 | 1/8 inch (inlet port) | 3 Female Inlet Ports, and 1 outlet port<br>NPT │ BSPP | W/O panel mount nut | 0-100 | ||
| 134-02CP | Quote Required | 94 In Stock | $39.12 | EA | Pneumatic Division | Brass | Polypropylene Push-Pull Locking Knob | +40° to +120° °F | 0 to 6.9 barg | Zinc Plated Steel Adjusting Screw and Spring | 300 psig | Inlet Port 1/8" and 1/4", Outlet Port 1/4" | 3 Female Inlet Ports, and 1 outlet port<br>NPT │ BSPP | With panel mount nut | 0-100 |
