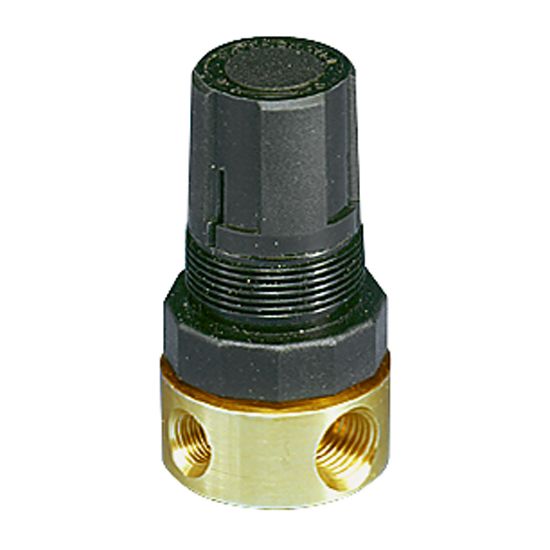

Parker 134-02AP - Relief Valves - 134 Series

134 series is a diaphragm type relief valve that relieves excess pressure, thus protecting the pneumatic circuit or system.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 134-02AP

$39.12/each

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Pneumatic Division
Pressure Relief Setting	0 to 6.9 barg	Port Size	Inlet Port 1/8" and 1/4", Outlet Port 1/4"
Body Material	Brass	Operating Temperature	+4° to +49° °C
Port Type	3 Female Inlet Ports, and 1 outlet port<br>NPT │ BSPP	Adjustment Screw Material	Zinc Plated Steel Adjusting Screw and Spring
Maximum Inlet Pressure Rating	300 psig	Adjustment Mechanism	Polypropylene Push-Pull Locking Knob
Available Accessories	With panel mount nut	Pressure Relief Setting (psig)	0-25
